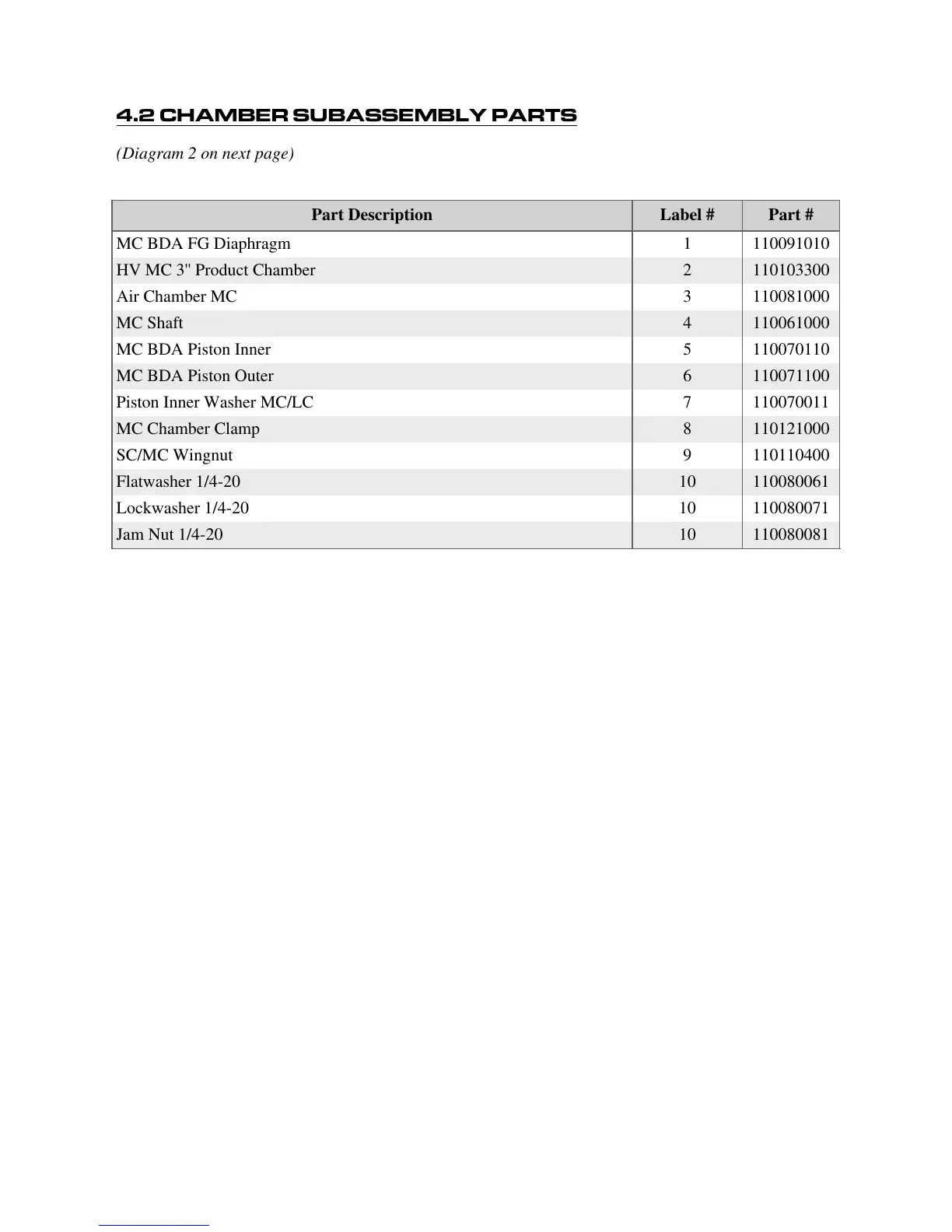

4.2 CHAMBER SUBASSEMBLY PARTS
(Diagram 2 on next page)
Part Description Label # Part #
MC BDA FG Diaphragm 1 110091010
HV MC 3'' Product Chamber 2 110103300
Air Chamber MC 3 110081000
MC Shaft 4 110061000
MC BDA Piston Inner 5 110070110
MC BDA Piston Outer 6 110071100
Piston Inner Washer MC/LC 7 110070011
MC Chamber Clamp 8 110121000
SC/MC Wingnut 9 110110400
Flatwasher 1/4-20 10 110080061
Lockwasher 1/4-20 10 110080071
Jam Nut 1/4-20 10 110080081
10
