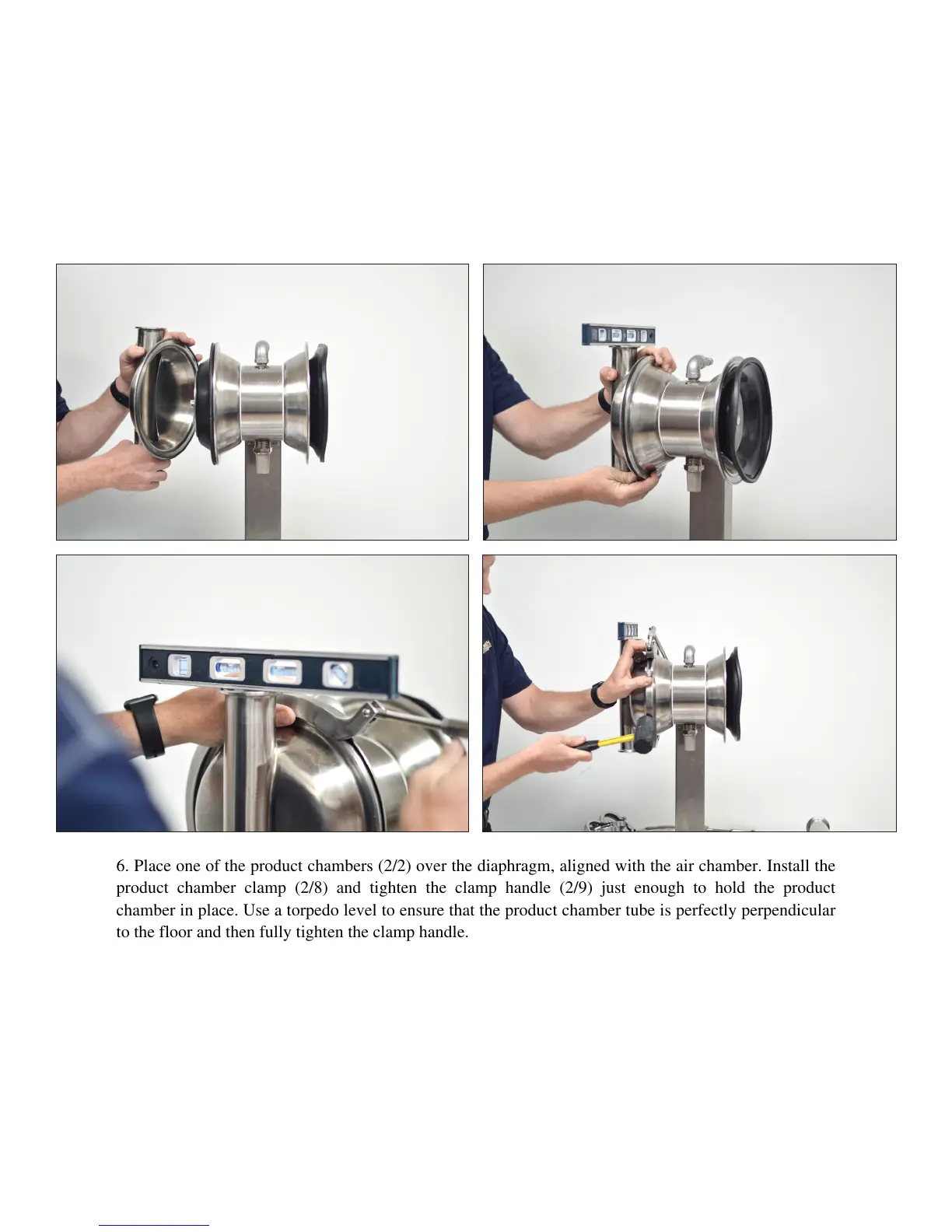

6. Place one of the product chambers (2/2) over the diaphragm, aligned with the air chamber. Install the
product chamber clamp (2/8) and tighten the clamp handle (2/9) just enough to hold the product
chamber in place. Use a torpedo level to ensure that the product chamber tube is perfectly perpendicular
to the floor and then fully tighten the clamp handle.
