Murzan PI-50 - Page 36

2909 LANGFORD RD. 1-700
NORCROSS, GA. 30071 USA
TEL: (770) 448-0583 FAX: (770) 448-0967
P R O P R I E T A R Y I N F O R M A T I O N
DATE:
DRAWING No.
DESCRIPTION:
REV DESCRIPTION
NOTES:
BY APPDATE
A
B

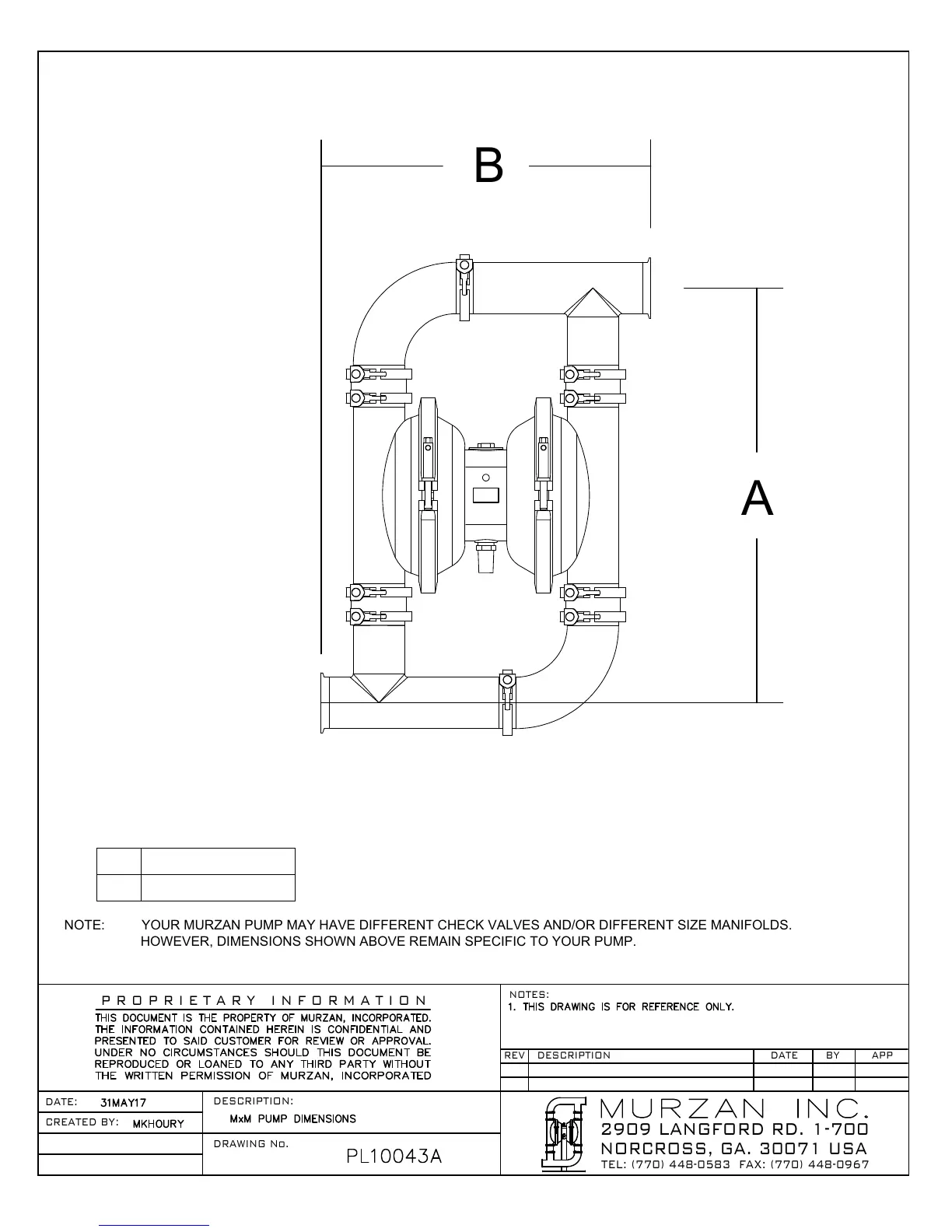

NOTE: YOUR MURZAN PUMP MAY HAVE DIFFERENT CHECK VALVES AND/OR DIFFERENT SIZE MANIFOLDS.
HOWEVER, DIMENSIONS SHOWN ABOVE REMAIN SPECIFIC TO YOUR PUMP.
CREATED BY:
A 30.2 " (766 mm)
B 21.1 " (537 mm)
