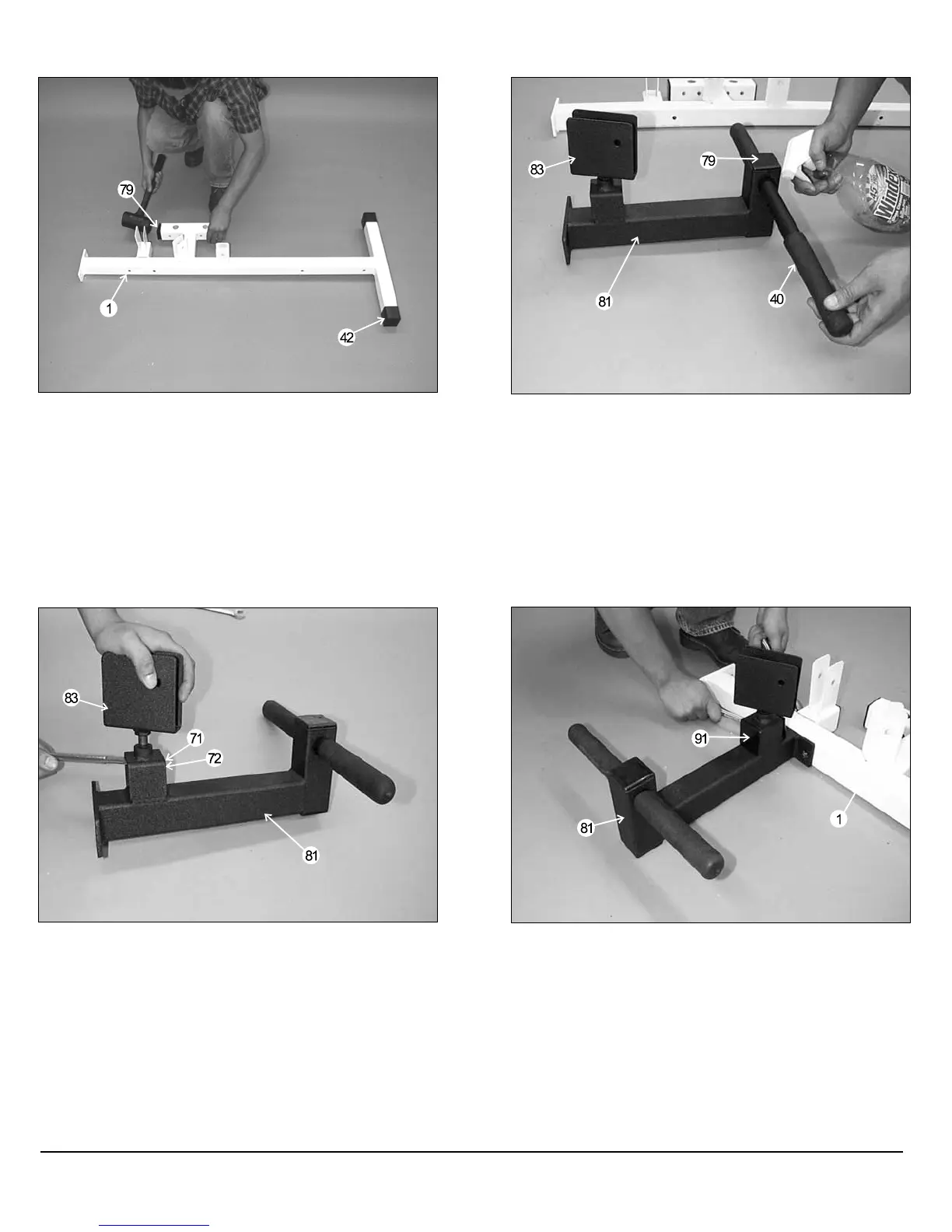

FIG. 1 On a flat surface, lay the Base Frame (#1) down
and insert the two Plastic End Caps 2” Sq. w/groove (#42)
onto the front stabilizer of the Base Frame (#1). Next, insert
two Plastic Insert Caps 2” Sq. (#79) into the Base Frame (#1)
as illustrated above.
FIG. 2 Slide a Hard Grip .875 X 8 (#40) over each end of the
tube on the Low Row Foot Support (#81), This Hard Grip .875
X 8 (#40) fits very tightly onto the Low Row Foot Support (#81)
and it may be necessary to use windex or a household glass
cleaner (as illustrated) to complete this procedure. Next, insert
one Plastic Insert Cap 2” Sq. (#79) into the tube-end of the Low
Row Foot Support (#81).
FIG. 3 Install the Low Row Swivel Pulley Bracket (#83)
into the receptacle on the Low Row Foot Support (#81) and
secure it using one Flat Washer SAE 1/2 (#72) and one Nylon
Insert Jam Lock Nut 1/2-13 (#71). Note: It is recommend that
the axle on the Low Row Swivel Pulley Bracket (#83) be
lubricated with grease prior to assembly.
FIG. 4 Attach the Low Row Foot Support (#81) to the
Base Frame (#1) and secure it using two Hex Head Cap
Screws 3/8-16 X 2 3/4 (#55), four Flat Washers SAE 3/8 (#73)
and two Nylon Insert Jam Lock Nuts 3/8-16 (#69). Next insert
two Plastic Insert Caps 2” X 3” (#91) into the pulley bracket
housing on the Low Row Foot Support (#81).
Owners’ Manual: Assembly Instructions
CMB-2 Muscle Beach Home Gym
2
