Mustang MV-PROJSP-FLAT - Universal Ceiling Mounting Kit Installation; Ceiling Plate Installation; Shaft and Bottom Column Assembly

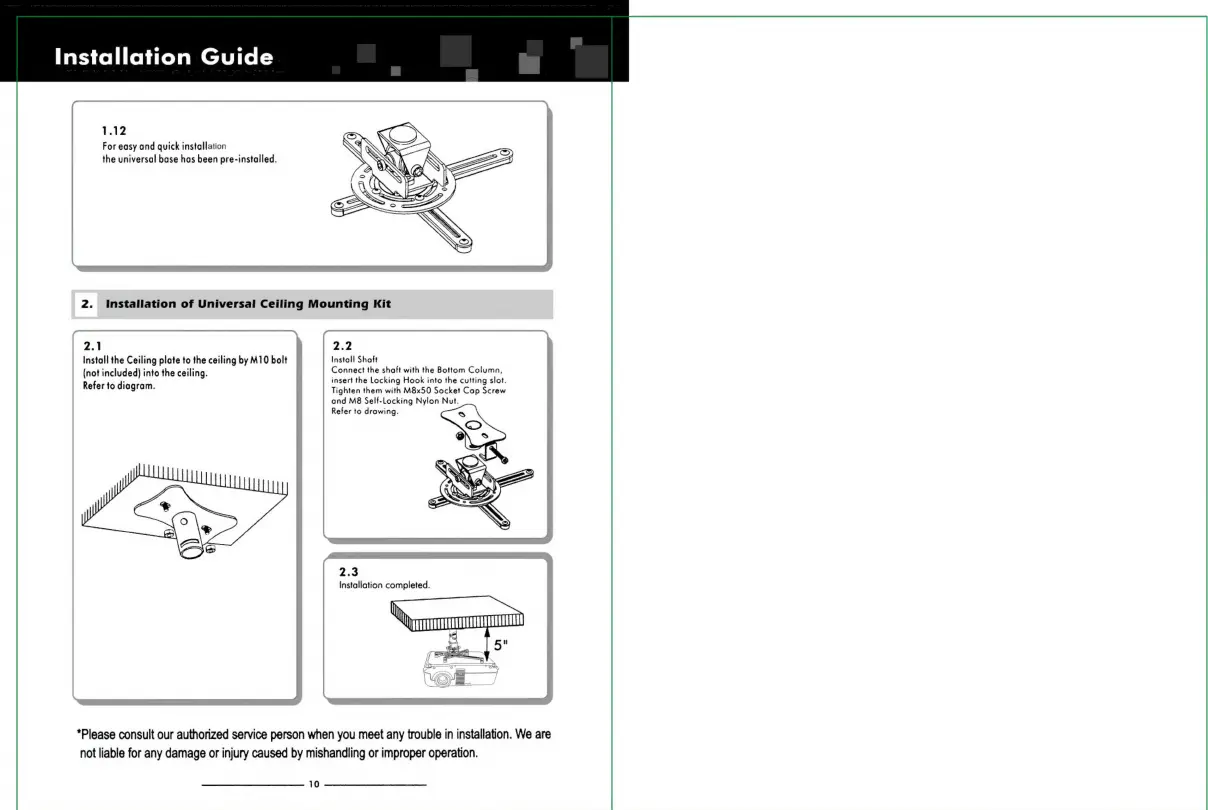

Installation Guide
1.12
For easy and quick installation
the universal base has been pre-installed.
2. Installation of Universal Ceiling Mounting Kit
2.1 | 2.2
Install the Ceiling plate to the ceiling by M10 bolt Install Shoft
(not included) into the ceiling. Connect the shoft with the Bottom Column,
Rsferia dicon insert the Locking Hook into the cutting slot.
gram. Tighten them with M8x50 Socket Cap Screw
and M8 Self-Locking Nylon Nut.
Refer to drawing.
2.3
Installation completed.
*Please consult our authorized service person when you meet any trouble in installation. We are
not liable for any damage or injury caused by mishandling or improper operation.
10
