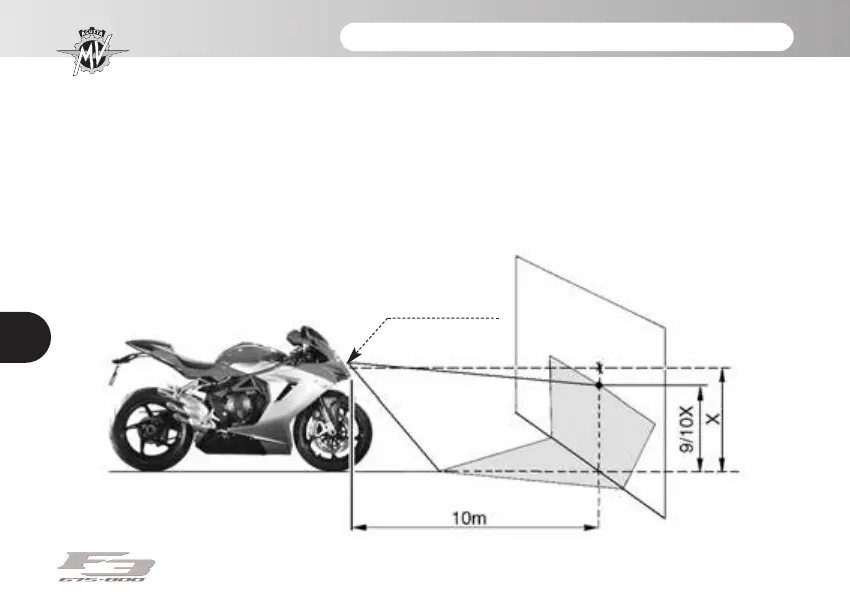

5.7. Headlight adjustment
Place the vehicle at a distance of 10 m from a vertical wall. Make sure that the motorcycle is placed on
an even horizontal surface, and that the headlight’s optical axis is perpendicular to the wall.
The vehicle must be held in an upright position. Measure the “X” distance between the headlight center
and the ground surface, then trace a small cross on the wall at the same height.
When you turn the headlight on, the upper boundary line between the dark a
rea and the lighted area
must be at an height equal or lower than the 9/10 of the headlight center height (X).
Headlight center
