INSTALLATION
Remember... Before proceeding with the installation, the extractor hood must
be disconnected from the mains, turn off the omnipolar isolation switch or
unplug it from the mains socket.
The hood must be placed just below the kitchen smoke outlet hole. To obtain
the best performance, the optimum height of the hood with respect to the
worktop must be between 65 and 75 cm.
1. Installing the cooker hood bracket

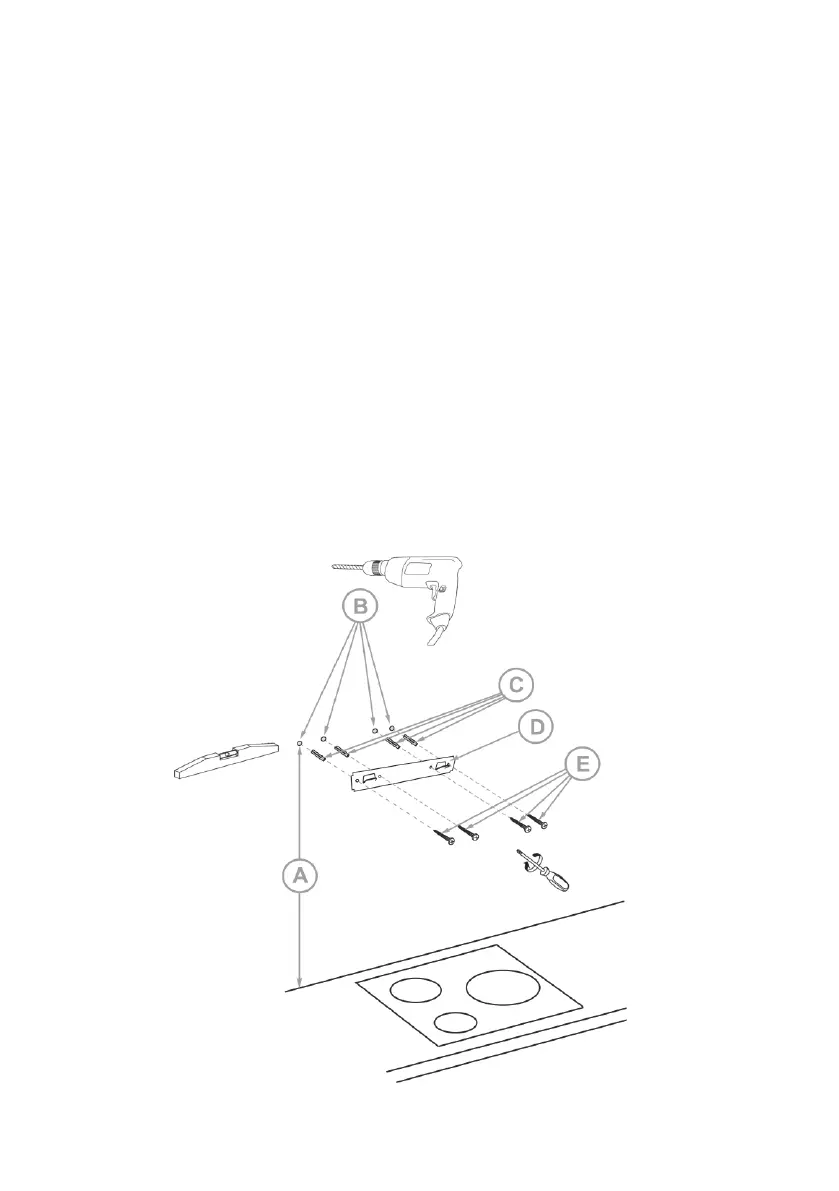

a) With the help of a level mark the four holes B of the support D. The
distance A must be the recommended height (65 to 75 cm) plus the
height of the hood, that is, you must add the necessary centimeters so
that when the hood is hanging from the support, it is at the
recommended height (65 to 75 cm) from the worktop.
b) Drill four 10 mm Ø holes at marks B.
c) Insert the supplied plugs C.
d) Attach the bracket D and fix it to the wall using the supplied screws E.
