4. Installation of the extendable evacuation tube
The extendable evacuation tube has a diameter of 150 mm, if the smoke
outlet hole has a different diameter, you will have to attach a suitable
adapter to the required diameter.
a) Once the chimney supports have been installed, remove the two
sections of the chimney.

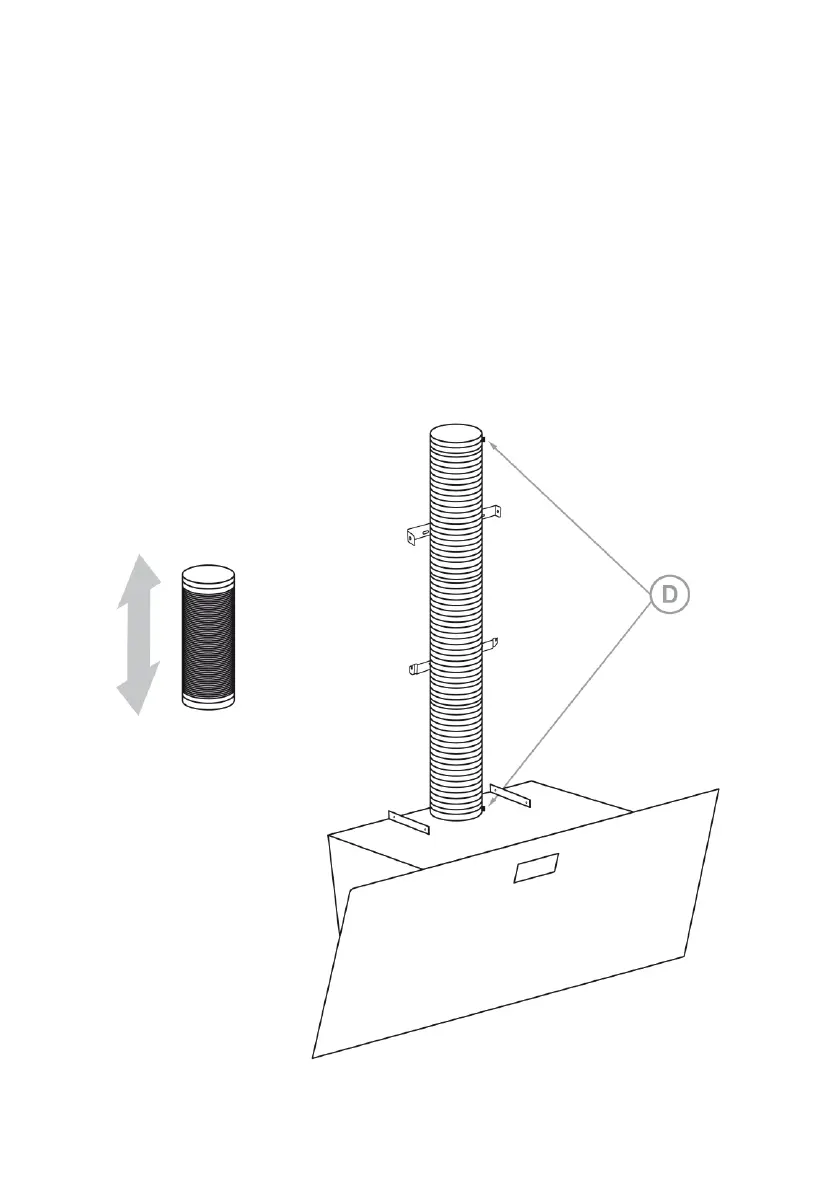

b) Extend the extendable tube and lead it from the main body of the hood
to the smoke outlet in the ceiling.
c) To fix the tube you can use plastic ties or metal clamps D. You can
also use silicone or adhesive paste in order to fix and improve the
tightness.
