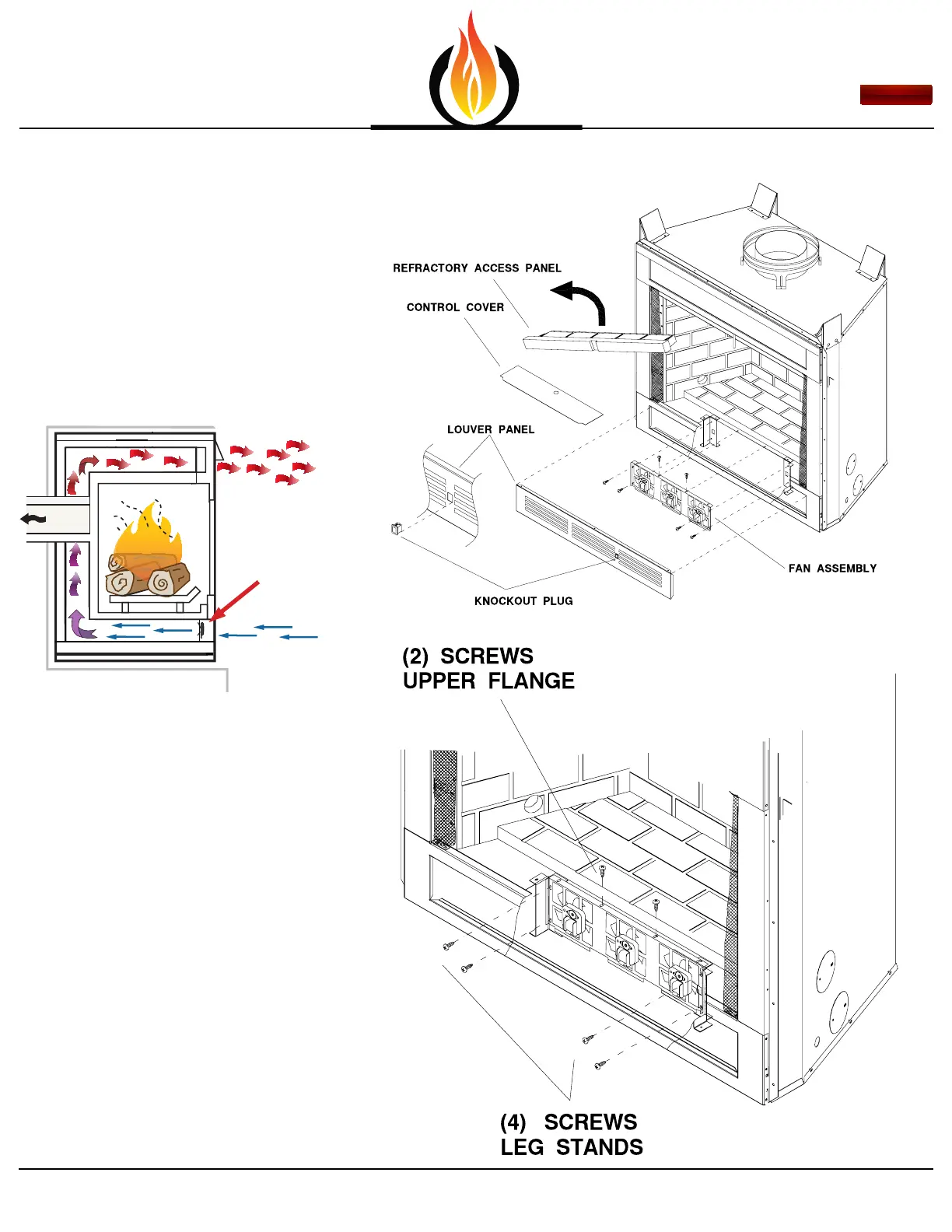

Step 3: Remove the control cover panel.
Remove the lower louver panel (if
installed) by gently pushing out the
panel from behind, down inside the
mounting frame.
Remove the knockout plug from
the lower louver panel.
(Figure: 2)
Step 4: Place the fan assembly with the
blades pointing towards the rear of the
replace and in between the two leg
stands. (Figure: 3 & 7)
Using 2 of the screws provided, fasten
the upper ange of the blower bracket to
the hearth pan.
Then fasten the end anges to the leg
stands with the remaining 4 screws.
(Figure: 3)
NOTE: Keep wire assembly away from
the fan blades.
CLICK
Installer is responsible to check local codes
and read all instructions prior to installation.
Layout designed in U.S.A. © 2015
NOTE: Diagrams and Illustrations NOT to Scale
Page 2 of 3
My Fireplace Blower
Burlington, Wisconsin
1-800-466-4045
MyFireplaceBlower.com:
ACCESSING THE LOWER COMPARTMENT
Figure: 2
Figure: 3
Exhaust Air
to
Outside
Room Air
in Bottom
Heated Air
out Top
FANS
Figure: 7
To Next Page
