9s Operating instructions, version a0020806 9

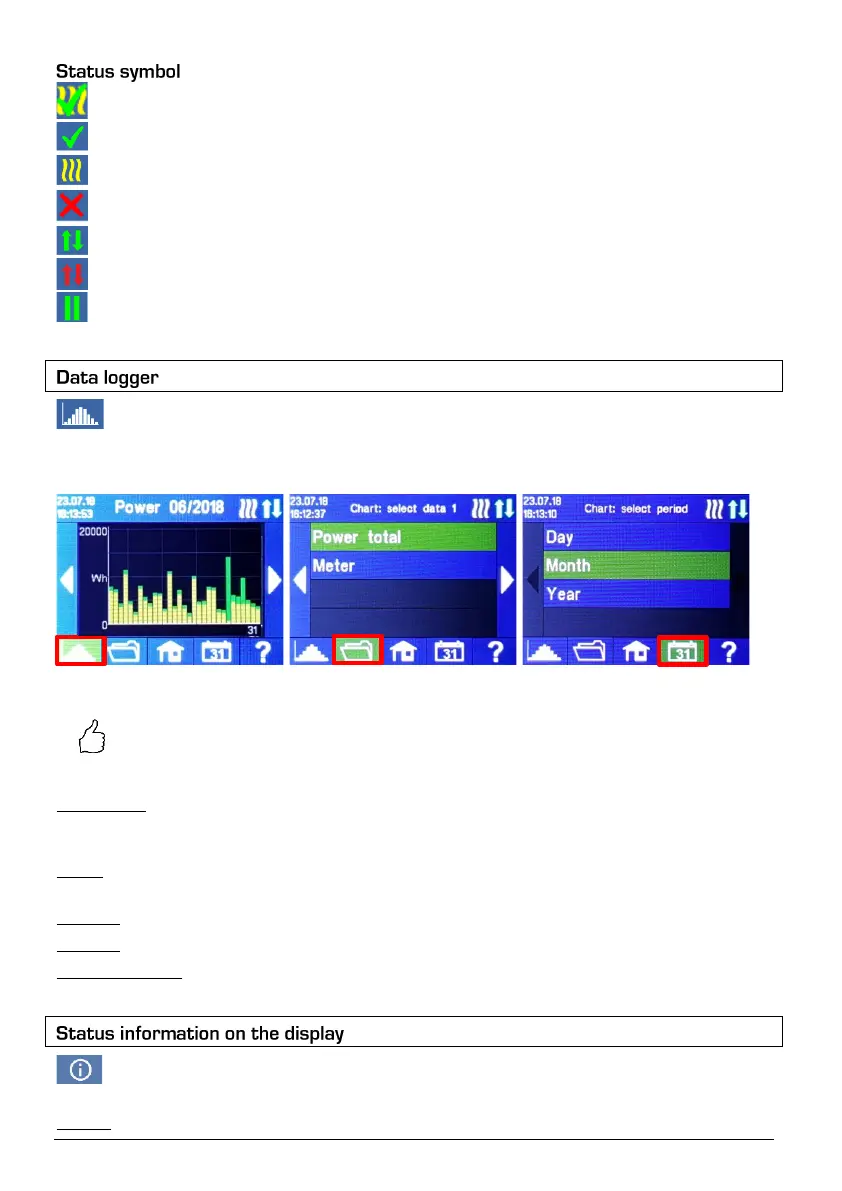

Lights up = set temperature reached
Flashes = stand-by, waits for excess
Lights up = heats with PV excess. Flashes = boost backup mode
Lights up = no control signal
Lights up = physical connection to the RJ45 network connection is intact
Lights up = no intact physical connection to the RJ45 network connection
Block active
Recorded production data, meter values and temperatures can be read off at any time. The
respective values can be selected using the "Open" button. These can be presented in the three
views of the current year, month or day using the "Calendar" button.
TIP: Type directly in the diagram on the individual bars to present the data in their
next level of definition and on the button of the data logger again to return to the
previous level.
The following data can be displayed:
Total power: Shows the total power figures for all the connected loads. The yellow bars indicate the
PV excess power used, the green bars the proportion of grid energy when the optional temperature
boost backup is active.
Meter: indicates the value of the total power drawn from the grid (red) including household loads
and grid feed-in (green) at the metering point.
Power 1: shows the power data for load 1.
Power 2: shows the power data for load 2.
Temperature 1-4: shows the data of the temperature probe.
The data of all variables relevant to the operation are shown in a list.
Output: shows the current output of the AC•THOR power unit.
