mycom i125S

2203M4-JE-MY-iS2-N_2017.04.
Chapter 2 Compressor Specifications and Configuration
Screw Compressor i-series 2.4
Configuration of Compressor
2-23

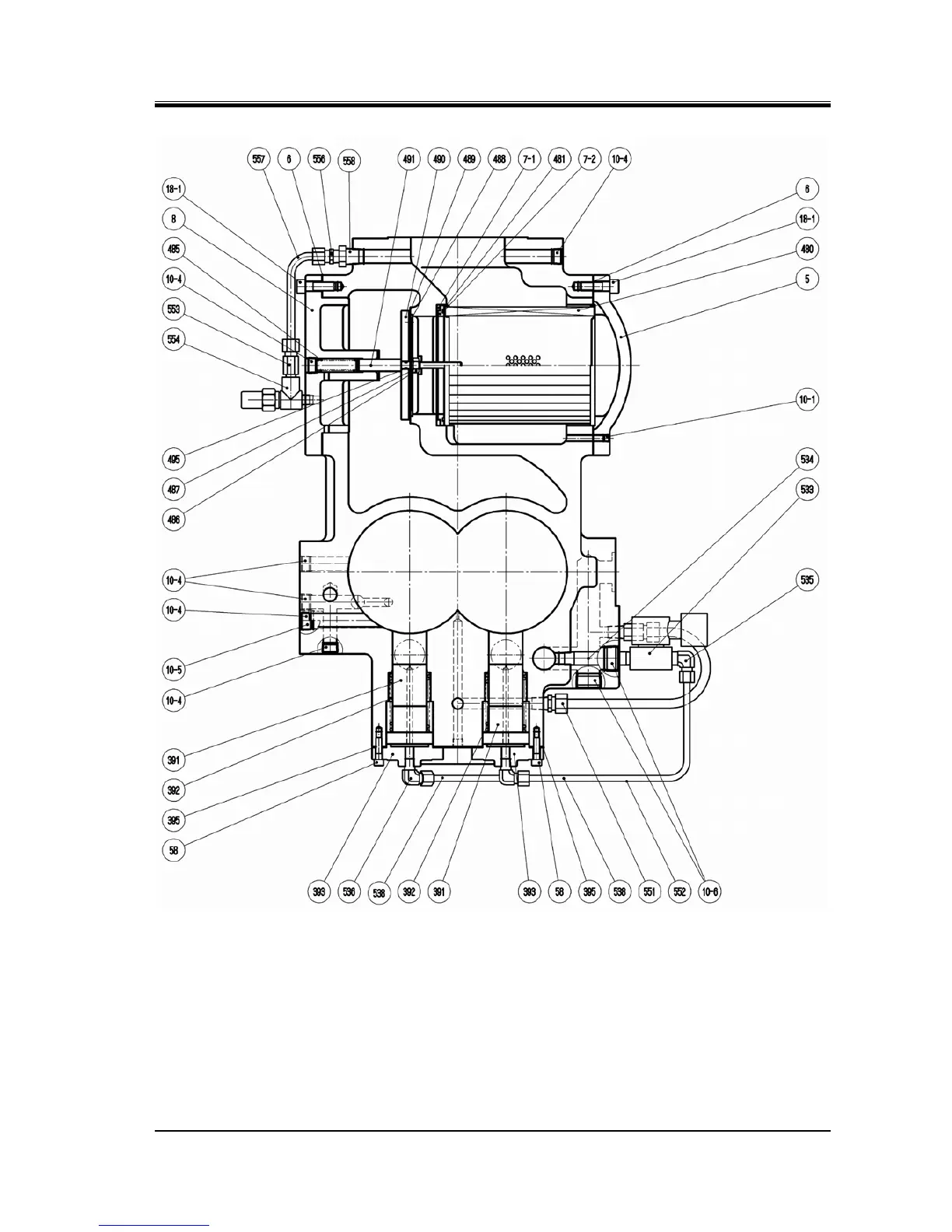

Figure 2-19
i160* Longitudinal Sectional View of Suction/Capacity Control Section
