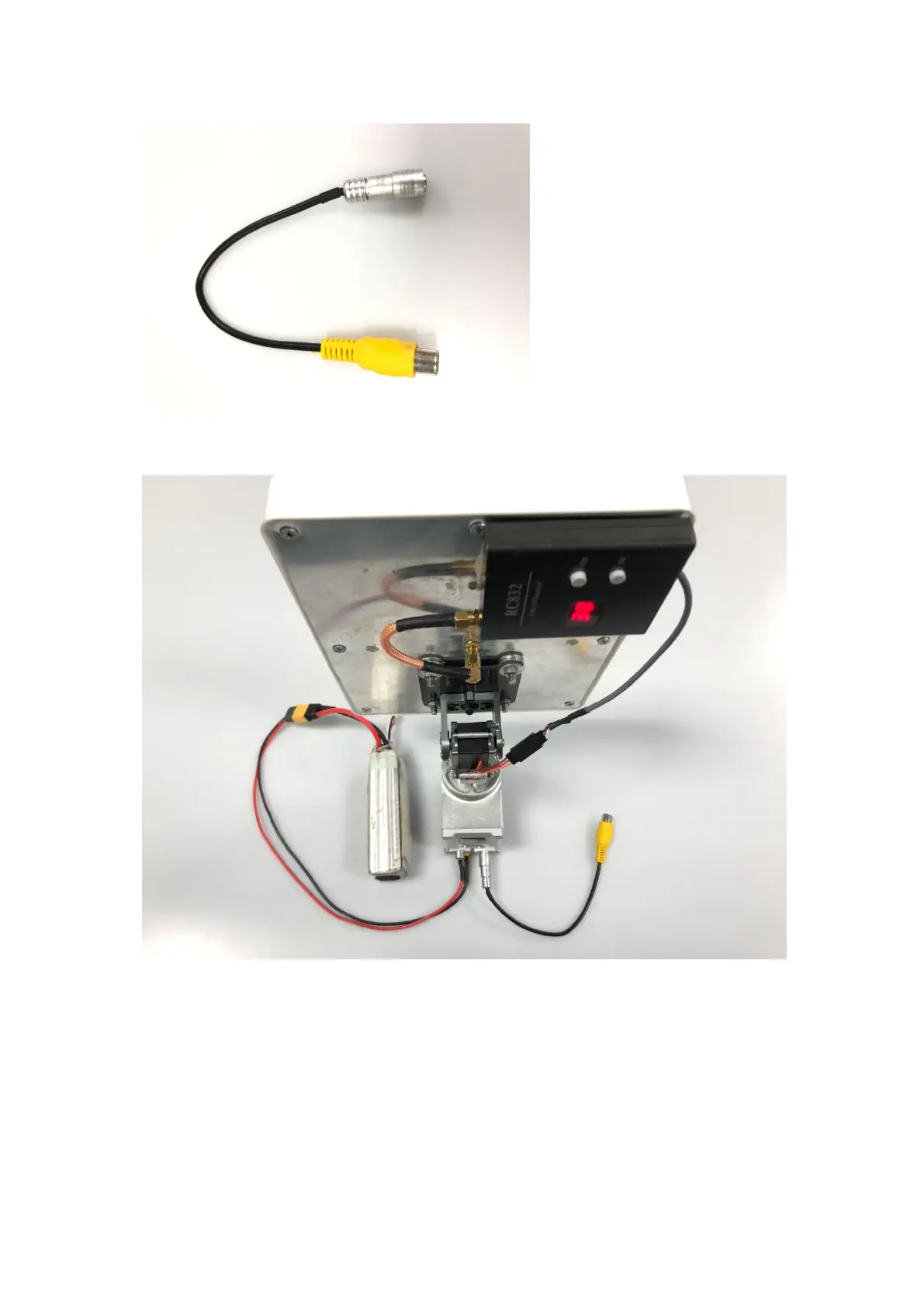

This cable connects to the right connector of the tracker. The yellow RCA jack outputs analog
video signal that you feed to the 3pin servo connector above.
If you wish to use MAVLink protocol to provide tracking data through digital radio link,
feed MAVLink data to PIN#1 of the RIGHT connector or to the PIN#2 of the LEFT connector.
Sharing the TX line of the data radio link with mini Crossbow AAT will not affect the normal
ground station operation. And don't forget to set proper baudrate in the menu of mini Crossbow
to match your data radio.
Note: With the most update V2.0 firmware, the PIN#2(RX3) of the LEFT port has been upgraded
to support these 4 functions: Compass+GPS module / MAVLink Input / S.Port(Inverted) /
Firmware update.
