ITEMS NOT SHOWN
ITEM
NO.
PART NO. DESCRIPTION QTY. MSRP
1 H135 Cuff-Lynx, 2" m cuff x 2" mpt 1 $3.99 ea
2 P583 vac tank, MyteeLite 1 $159.99 ea
3 H312 plate, connecting, MyteeLite 4 $6.99 ea
4 H230 screw, 10-32 x 1/2" phil pan head, s/s 28 $0.99 ea
5 G103 cap, 2.5" threaded, w barb 1 $4.99 ea
6 H303 hose, drain, 14" 1 $15.99 ea
7 H350 drain, hose plug, 1-1/2" 1 $9.99 ea
8 H423 plug, 7/8", black, heyco 2 $0.99 ea
9 H222 screw, 10-32 x 1-1/4" phil pan head, s/s 6 $0.99 ea
10 H688-A handle, MyteeLite 1 $65.99 ea
11 G055 tether, cap, 6 1/2" 1 $12.99 ea
12 P560 cap, 6", threaded 1 $23.99 ea
13 G031 gasket, 3.25" i.d. x 5.88" o.d. 1 $6.99 ea
14 G022 filter, foam, 2-3/8" x 1" 1 $2.99 ea
15 G021 screen, mesh filter, 2-3/8" dia 1 $4.99 ea
16 H203 bolt, 1/4-20 x 1-1/4" hex head, s/s 2 $0.99 ea
17 H210 washer, 1/4" flat, s/s 6 $0.99 ea
18 H216 nut, lock, 1/4-20, nylon insert, s/s 2 $0.99 ea
19 H213 washer, 1/4" lock, s/s 2 $0.99 ea
20 H201 bolt, 1/4-20 x 1/2" hex head, zinc 2 $0.99 ea
21 H846B cap, gallon jug, 1-5/8" 1 $0.99 ea
22 H379 bracket, front, small 1 $3.99 ea
23 B119 filter, strainer, 1/4" 1 $3.99 ea
24 P584 sol tank, MyteeLite 1 $149.99 ea
25 G004 gasket, vacuum motor 2 $8.99 ea
26 C302P vac motor, 3 stage 1 $148.99 ea
27 H178 faucet fill 1 $10.99 ea
28 B241 adapter, brass, 3/8" barb x 1/4"mpt 1 $1.99 ea
29 PH612-60 clear tubing, 1/2" OD x 3/8" ID, faucet fill 1 $1.99 ft
30 H681 caster, 2", black hub, gray tread 2 $8.99 ea
31 H273 nut, kep, #10-32 zinc 15 $0.99 ea
32 P585 base, MyteeLite 1 $89.99 ea
33 H212 flat washer, 9/16"ID x 1 1/16"OD, AN960-C916 4 $0.99 ea
34 H427 washer, wave, axle 2 $1.49 ea
35 H279 wheel, 6" 2 $25.99 ea
36 H042 c-clip, 12mm, external 2 $0.99 ea
37 H254 washer, axle, cut 1/2" id 2 $0.99 ea
38 H241 axle, 13.63" x .50" dia 1 $15.99 ea
39 H029 plastite screw, 10 x 1/2" 4 $0.99 ea
40 E515 switch, rocker, 2 position 3 $13.99 ea
41 E532 power cord, end, 25', 14/3 1 $44.99 ea
42 H445 fitting, strain relief, w/ spring, 1/2" npt 1 $8.99 ea
43 H310 plate, switch, MyteeLite, 3 hole 1 $6.99 ea
44 H221 nut, lock, 1/2" steel 1 $1.99 ea
45 H486 latch, front 1 $13.99 ea
46 G068 bumper, 7/8" x 1/4" head 2 $1.99 ea
47 H256 screw, 10-32 x 3/4" phil pan head, zinc 2 $0.99 ea
48 B136 elbow, brass, 90 deg, 1/4" mpt x 1/4" mpt 3 $4.99 ea
49 AH157 hose, 3/8" x9" (OAL), f x fsw 1 $25.99 ea
50 B105 bushing, brass, 3/8"mpt x 1/4" 2 $3.19 ea
51 C305 pump, 120 psi, 115V 1 $151.99 ea
52 B170 ferrule, 1/4" brass 2 $0.99 ea
53 PH634-13 sol hose, 1/4" silicone braided, clear 1 $6.49 ft
54 B110 adapter, brass, 1/4" sw barb x 1/4" fpt, w/gasket 1 $3.99 ea
55 B107 nipple, brass, 1/4"m, hex 2 $3.19 ea
56 B103 elbow, brass, 90 deg, 1/4"mpt x 1/4" fpt 1 $4.49 ea
PART NO. DESCRIPTION QTY. MSRP
A997
harness, electrical
1 $47.99 ea
B101 quick disconnect, male, 1/4" male x 1/4" fpt 2 $8.49 ea
B102 quick disconnect, 1/4" female x 1/4" fpt 1 $17.49 ea
B104 bushing, hex, 1/4" mpt x 1/8" fpt 1 $1.99 ea
AH136 sol hose, 1/5" x 15', 1/8 mpt x 1/4 mpt 1 $44.99 ea
G079 hose wrap, heat guard 1 $2.99 ea
A935 sol hose, pigtail, 1/8 x 7 1/2 1 $14.99 ea
H701 hose, vac, 15' x 1-1/4" w/ 1 1/2 black cuffs 1 $43.99 ea
H282 tool, upholstery w/valve 1 $98.99 ea
H122 Cuff-Lynx, 1.25" hose cuff x 2" female cuff 1 $3.99 ea
H133 Cuff-Lynx, 1-1/4" hose x male & female 2 $9.99 ea
P590 cuties, 1/4" qd, strandard pack of 2 1 $2.99 ea
ADM-8070 manaul, Mytee-Lite 1
ITEM
NO.
PART NO. DESCRIPTION QTY. MSRP
57 B207 elbow, brass, 90 deg, 1/4" fpt x 1/4" fpt 2 $5.99 ea
58 B108 valve, brass, 1/4" check 1 $13.99 ea
59 H903A heater, aluminum cast, single 1 $78.99 ea
60 E519 heating rod, 1000W, 115V 1 $51.99 ea
61 E573 Thermostat, 200°, Auto, 1/4" 1 $16.49 ea
62 E574 Thermostat, 310°F ± 10°F, Manual, 1/4" 1 $17.99 ea
63 H274 screw, 6 x 3/16, phil pan head, self-tapping 5 $0.99 ea
64 AH184 hose, pulse, 3/8" x 14-1/2" (OAL), f 1 $27.99 ea
65 B130 45 deg, street elbow, brass, 1/4" male 1 $5.49 ea
66 H484 plate, mounting, QD 1 $4.99 ea
67 B111
adapter, brass, extender, 1/4" mpt x 1/4" fpt, hex 1 $3.49 ea
68 B102 qd, brass, 1/4" f x 1/4" fpt 1 $17.99 ea
D
C
B
A
B
C
D
1 2 3
4 5
6
7
8
8
7
6
5
4
3
2
1
E
F
E
F
8070
SHEET 1 OF 3
MyteeLite II
(2014)
1/2014
E
SCALE: 1:24
REV
DWG. NO.
C
SIZE
TITLE:
NAME DATE
COMMENTS:
CHECKED
DRAWN
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS
DRAWING IS THE SOLE PROPERTY OF
MYTEE PRODUCTS, INC. ANY
REPRODUCTION IN PART OR AS A WHOLE
WITHOUT THE WRITTEN PERMISSION OF
MYTEE PRODUCTS, INC. IS
PROHIBITED.
A
DO NOT
SCALE DRAWING
858-679-1191
mytee
PRODUCTS, INC.
M.LaBarbera
ACCESSORIES
8400- 4” Stainless Steel
Upholstery Tool
8501- 15’ 1-1/4”
Hose-n-Hose™ Vacu-
um/Solution Hose
CONNECTING THE HANDLE
In the rear of the machine, with handle/basket facing
outward, line up the four inserts on the handle with the
four inserts on the machine, located on the top sides of the
recovery tank. When installing the handle on your new
Mytee Lite™, make sure you use a hand tool (screwdriver)
for the screws and NOT a power tool. This will insure you
do not strip the hole and puncture the recovery tank.
FRONT
4
3
1
2
5
BACK
8. Basket
9. Recovery tank drain hose
10. Service latch
11. Switch plate
12. 25’ single power cord
13. 6” wheels
14. 2” casters
9
7
8
10
11

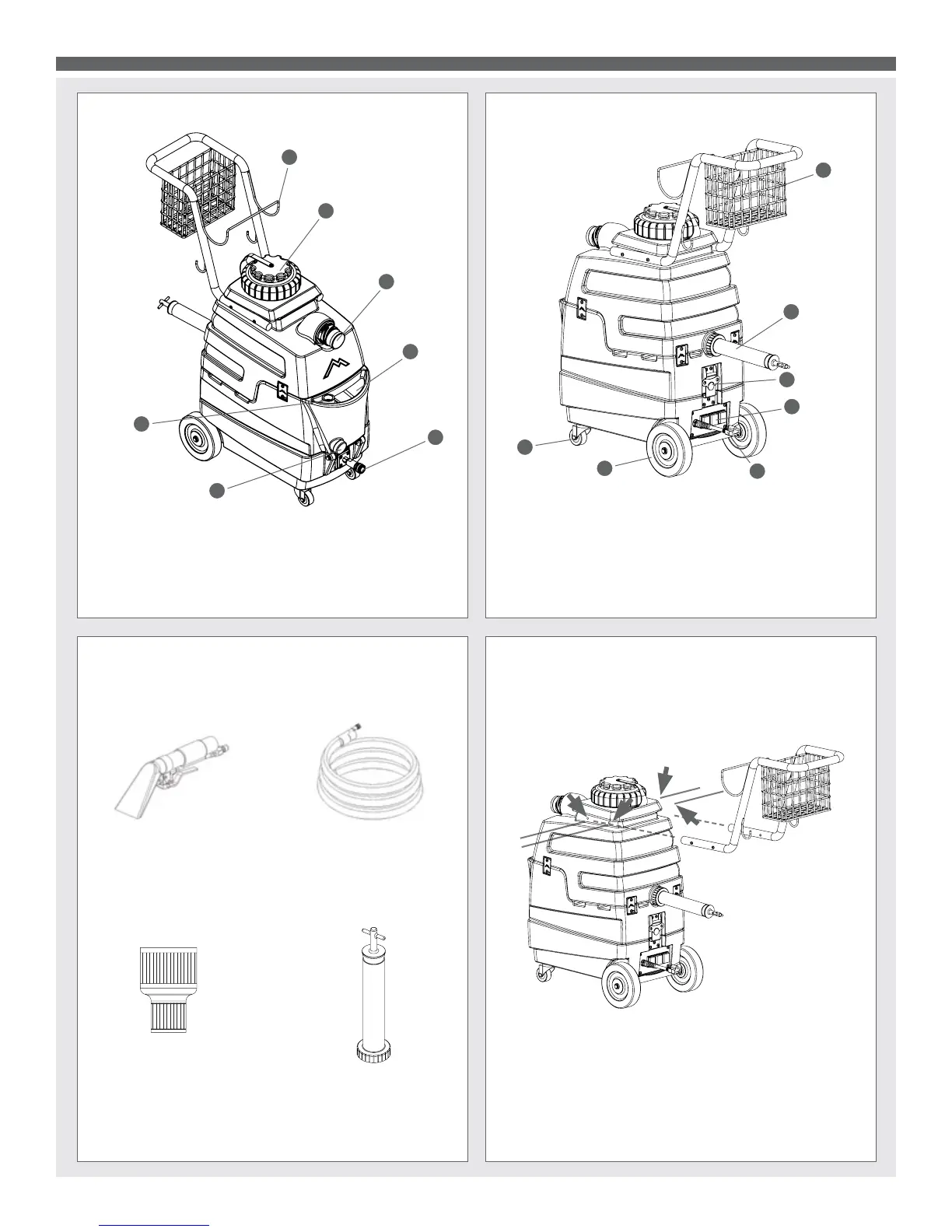

8070 MYTEE LITE™ FEATURES
1. Hose hanger
2. Recovery tank lid
3. Cuff-Lynx™ vacuum hose connector
4. Open ll for solution tank
5. Solution hose connector
6. Solution tank drain
7. Solution tank faucet ll
6
12
13
14
H122 Cuff-Lynx™ - 2”
Female Reducer
A110 Drain Hose
3
2
1
