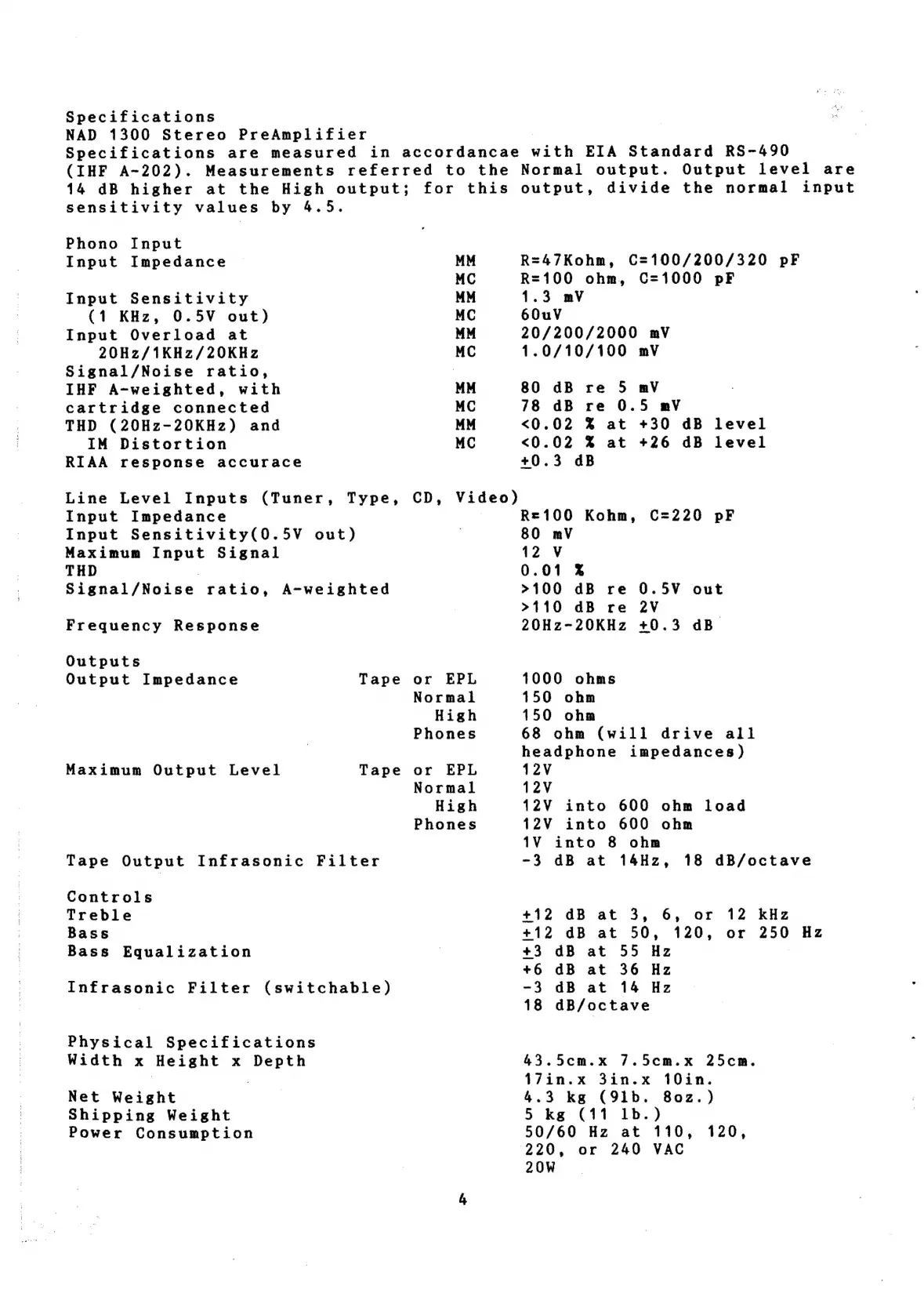

Specifications
NAD 1300 Stereo PreAmplifier
Specifications are measured in accordancae with EIA Standard RS-490
(IHF A-202). Measurements referred to the Normal output. Output level are
14 dB higher at the High output; for this output, divide the normal input
sensitivity values by 4.5.
Phono Input
Input Impedance © MM R=47Kohm, C=100/200/320 pF
MC R=100 ohm, C=1000 pF
Input Sensitivity MM 1.3 mV
(1 KHz, 0.5V out) MC 60uV
Input Overload at MM 20/200/2000 mV
20H2/1KHz/20KHz MC 1.0/10/100 mV
Signal/Noise ratio, 7
IHF A-weighted, with MM 80 dB re 5 mV
cartridge connected MC 78 dB re 0.5 mV
THD (20Hz-20KHz) and MM <0.02 % at +30 dB level
IM Distortion MC <0.02 % at +26 dB level
RIAA response accurace +0.3 dB
Line Level Inputs (Tuner, Type, CD, Video)
Input Impedance | R=100 Kohm, C=220 pF
Input Sensitivity(0.5V out) | 80 mV
Maximum Input Signal 12 V
THD | 0.01 %
Signal/Noise ratio, A-weighted >100 dB re 0.5V out
| >110 dB re 2V
Frequency Response 20Hz-20KHz +0.3 dB
Outputs
Output Impedance Tape or EPL 1000 ohms
Normal 150 ohm
High 150 ohm
Phones 68 ohm (will drive all
headphone impedances)
Maximum Output Level Tape or EPL 12V
Normal 12V
High 12V into 600 ohm load
Phones 12V into 600 ohm
1V into 8 ohm
Tape Output Infrasonic Filter ~3 dB at 14Hz, 18 dB/octave
Controls
Treble +12 dB at 3, 6, or 12 kHz
Bass +12 dB at 50, 120, or 250 Hz
Bass Equalization | +3 dB at 55 Hz
+6 dB at 36 Hz
Infrasonic Filter (switchable) -3 dB at 14 Hz
| 18 dB/octave
Physical Specifications
Width x Height x Depth 43.5cm.x 7.5cm.x 25cm.
: ) 17in.x 3in.x 10in.
Net Weight | 4.3 kg (91b. 802.)
Shipping Weight 5 kg (11 1b.)
Power Consumption 50/60 Hz at 110, 120,
220, or 240 VAC
20W
