This document describes the JMD-S108 Nail Drill System, a professional-grade device designed for nail care. It includes detailed instructions for operation, technical specifications, and important precautions to ensure safe and effective use.

Function Description

The JMD-S108 Nail Drill System is a comprehensive tool for various nail care tasks, including shaping, filing, buffing, and removing nail enhancements. It features a main control unit, a brushless handpiece, and a power adaptor, all designed for precision and ease of use. The system allows for adjustable speed and direction, making it suitable for both professional nail technicians and advanced home users. The main unit serves as the control center, displaying speed and direction settings, while the handpiece provides the necessary power and control for detailed work. The magnetic bits holder holes on the main unit offer convenient storage for drill bits, keeping them organized and easily accessible.

Important Technical Specifications

Power: 48W, indicating a robust motor capable of handling various nail care tasks efficiently.
Input Voltage: DC 24-2A, ensuring stable power delivery to the device.
Weight: 1.2kg, making the main unit relatively portable while providing a stable base during operation.
Dimensions: L265*W241*H72mm, a compact size that fits well on most workstations.
Speed: 0-35000 RPM (Revolutions Per Minute), offering a wide range of speed control for different applications, from gentle buffing to rapid material removal. The speed is displayed in increments of 1000 RPM (e.g., "35" on the display means 35,000 RPM).
Operating Environment Humidity: 30-75%, specifying the acceptable humidity range for safe and optimal performance.
Operating Environment Temperature: +10°C~26°C, indicating the ideal temperature range for the device to function correctly and prevent overheating or damage.

Usage Features

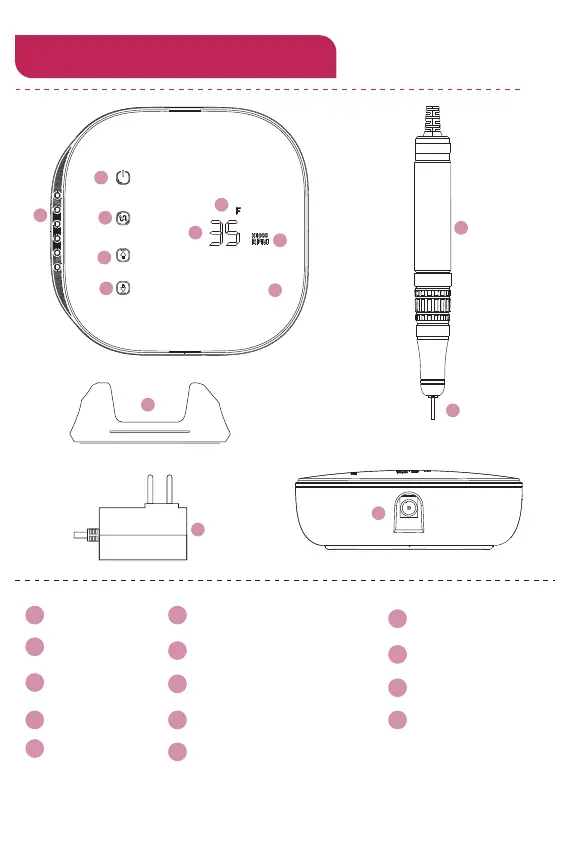

The JMD-S108 system is designed for intuitive operation with several user-friendly features:

On/Off Control: A dedicated touch button (1) to power the device on and off. When connected to power, an alternate light flashes, indicating readiness. Touching the On/Off key illuminates the function keys and puts the machine in standby mode.
Forward/Reverse Function: A touch button (2) allows users to switch between forward (F) and reverse (R) rotation. This feature is crucial for working on different nail areas and for both right-handed and left-handed users. The display (6) indicates the current direction.
Speed Adjustment:
- Increase Speed: A touch button (3) to incrementally increase the speed. A long press allows for continuous jumping to the maximum speed of 35,000 RPM or adjustment to the desired setting.
- Decrease Speed: A touch button (4) to incrementally decrease the speed. A long press allows for continuous jumping to the minimum speed of 0 RPM or adjustment to the desired setting.
- Speed Display: The current speed is clearly shown on the digital display (5), indicating RPM in thousands (e.g., "35" for 35,000 RPM).
Brushless Handpiece: The device comes with a high-quality brushless handpiece (11), which typically offers quieter operation, less vibration, and a longer lifespan compared to brushed motors.
Bit Insertion and Removal:
1. Insert Bit: Turn the left side clockwise until a click is heard, indicating the chuck is open. Insert a 3/32" size drill bit.
2. Lock Bit: Turn the right side anti-clockwise to securely lock the bit in place.
3. Remove Bit: To remove, turn the left side clockwise to open the chuck, then pull out the bit.
Magnetic Bits Holder Holes: Conveniently located on the main unit (9), these holes provide secure storage for drill bits, preventing loss and keeping the workspace tidy.
Base: A dedicated base (12) is provided for the handpiece, offering a stable and accessible resting place during and between uses.
Power Adaptor: The system includes a power adaptor (13) for connecting to a power source.
Charger Hole: A designated charger hole (14) on the main unit for connecting the power adaptor.

Maintenance Features

The manual emphasizes several precautions to ensure the longevity and safe operation of the device:

Do NOT disassemble the handpiece: This prevents damage to internal components and maintains warranty validity.
Do NOT drop the handpiece: Dropping can cause significant internal or external damage, affecting performance and safety.
Do not work in a humid environment: Operating outside the specified humidity range (30-75%) can lead to electrical hazards or damage to the device.
Turn off the power when changing the bits: This is a critical safety measure to prevent accidental activation and potential injury during bit changes.
Make sure the power switch is off before plugging in the power cord: This prevents sudden starts and potential injury.
Unplug the power cord when not in use for a long time: This conserves energy and reduces the risk of electrical issues.

By adhering to these guidelines, users can ensure the optimal performance, safety, and durability of their JMD-S108 Nail Drill System.
