NAIM ACTIVE - Snaxo Connections with NAC 82 and Power Supplies; Snaxo to Hi-Cap (NAC 82, 2 Hi-Caps); Snaxo to Hi-Cap (NAC 82, Supercap)

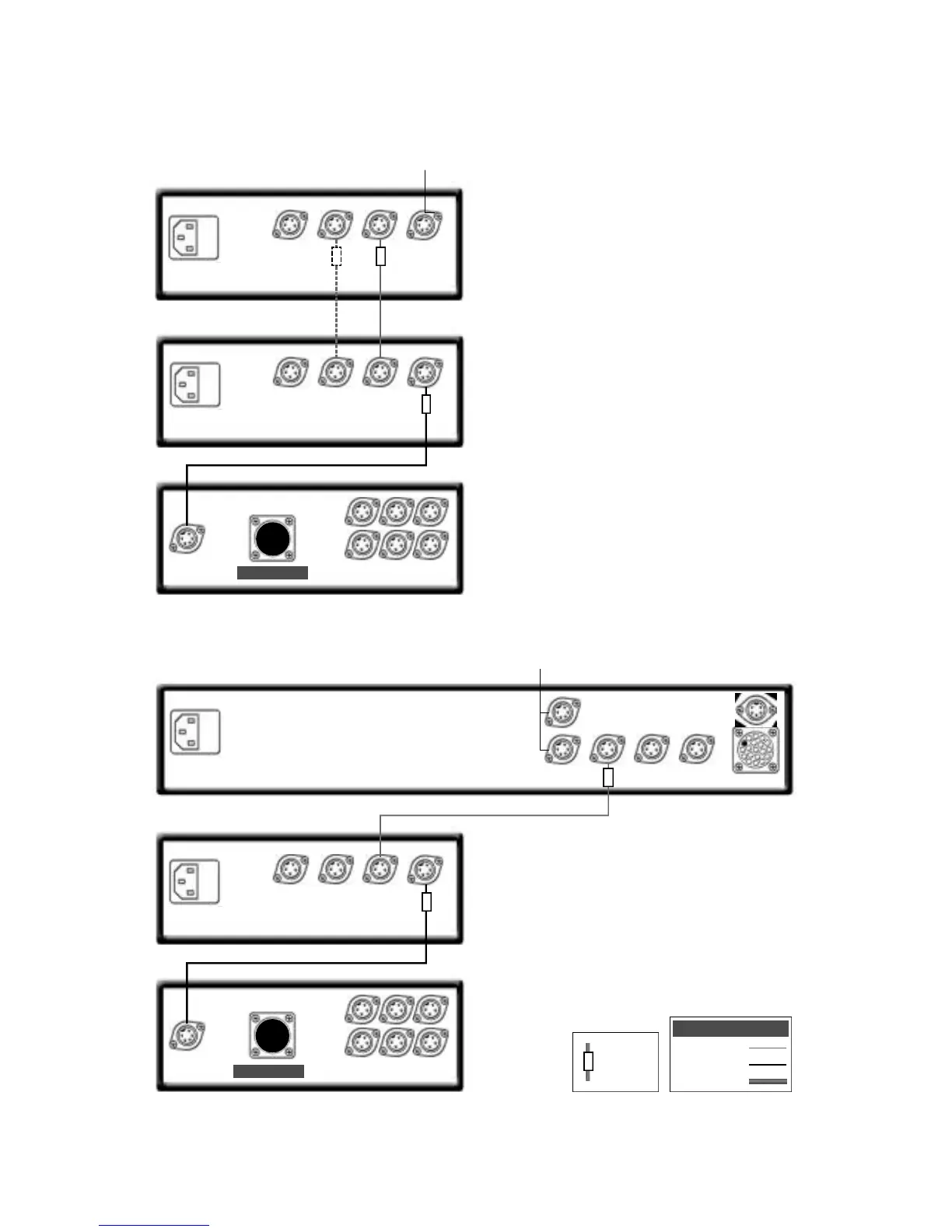

snaxo connection to hi-cap from nac 82 and two hi-caps
snaxo connection to hi-cap from nac 82 and supercap
to nac 82
to nac 82
cable
direction
marker
4 to 4 pin DIN
5 to 5 pin DIN
Burndy
Interconnect Cables
link plug fitted
link plug fitted
note
If the nac 82 is powered by two hi-caps the connections are the same
(from 82 hi-cap number one).
hi-caps earlier than serial number 105469 must be connected together
via the second set of sockets rather than the third as illustrated by the
dotted connection cable.
