8
allæ, Intro 2
7.2 Connection
If the loudspeakers are to be used with Naim amplification,
use only Naim loudspeaker cable. Cable lengths to both
loudspeakers should be equal and be between 3.5 metres
and 20 metres (11.5ft and 66ft). Your local retailer will be
able to make up cables of the appropriate length.
allæ
Connect the cables from the passive crossover units
mounted on the back of the Lower Cabinets to the input
sockets on each cabinet. Each longer cable should be
connected to the sockets on the back of the Upper
Cabinets and each shorter cable to the sockets on the
back of the Lower Cabinet. Finally connect the amplifier
output speaker cables with their custom Naim plugs to the
input sockets on the back of the passive crossover units.
Ensure that each positive plug - identified by a rib on the
side of the cable and a tag marked “pos” on the side of
the connector body - is inserted to the red input sockets.

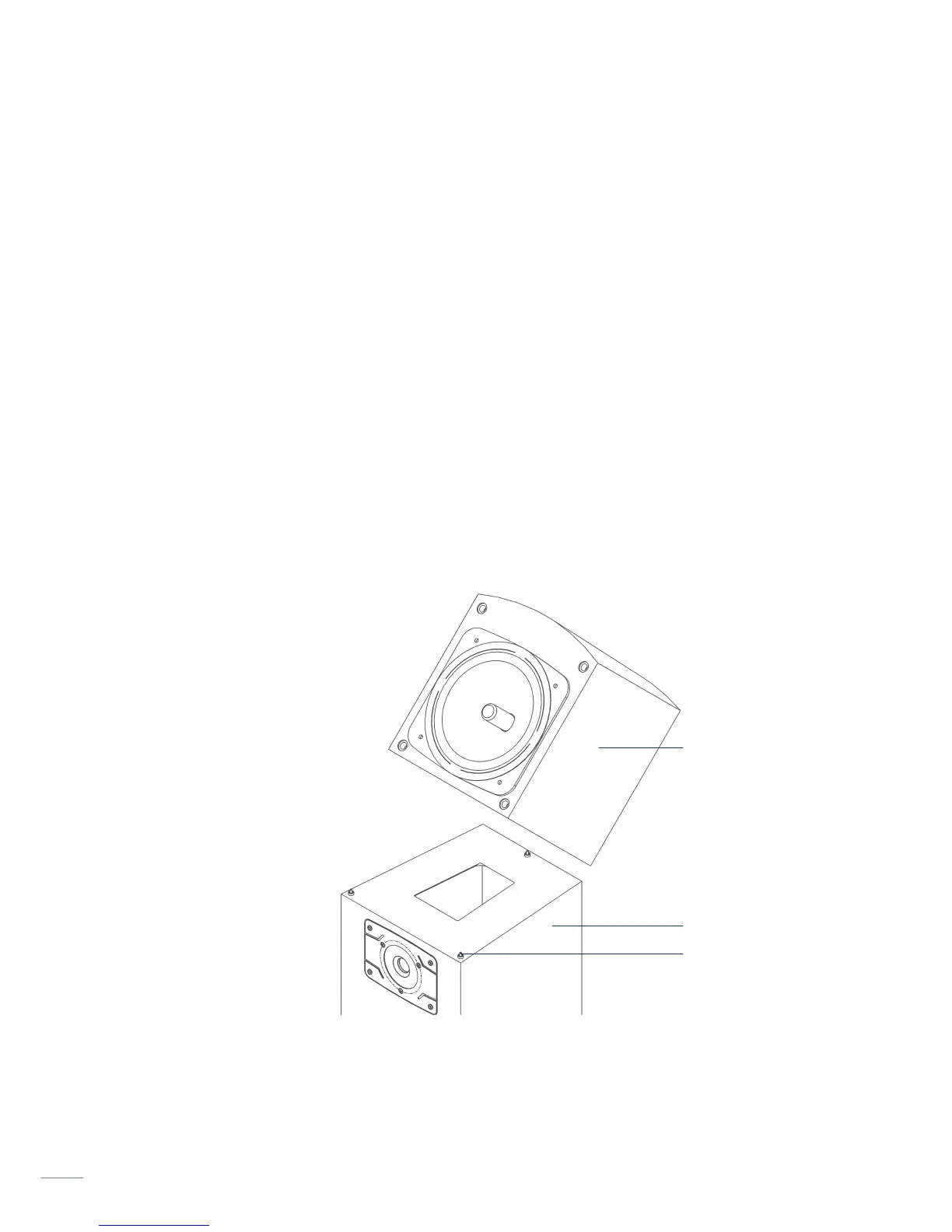

Upper Cabinet
Lower Cabinet
PIP
If the allæ is to be used in an active system the passive
crossover units should be removed and the Upper Cabinet
(LF) and Lower Cabinet (HF) input sockets connected via
loudspeaker cables with custom Naim plugs directly to the
appropriate power amplifier.
Intro 2
Connect the loudspeaker cables with their custom Naim
plugs to the input sockets located on the rear of the Lower
Cabinet. Ensure that each positive plug - identified by a rib
on the side of the cable and a tag marked “pos” on the
side of the connector body - is inserted to the red input
sockets.
7.3 Speaker Components
