24
cable
direction
marker
4 to 4 pin DIN
Interconnect Cables
av2
nap v175
nap 150
to sub-woofer
surround
ch1, left
centre
surround
ch2, right
front
ch1, left
front
ch 2, right

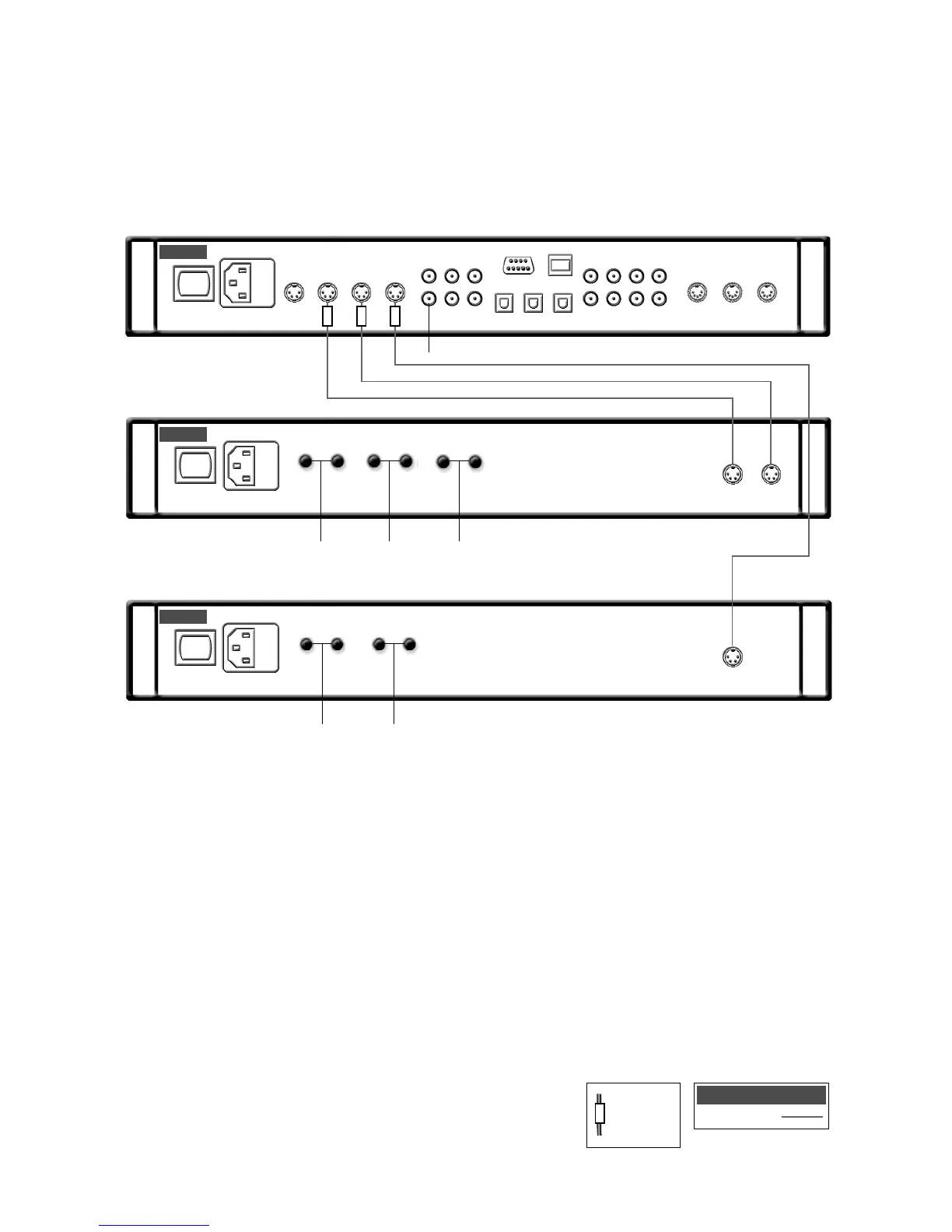

12.3 av2 connected to nap v175 and nap 150
(stand alone audio-visual system)
12.0 av2 connection diagrams
note
The av2 features various technologies to reduce microphonic effects, in
particular a compliant mounting for the main circuit boards and the DIN
sockets on the rear. Some movement of the board and sockets when
connecting/disconnecting is normal.
