NAIM NDX 2 - ND5 XS 2 Connection and power; Connecting the ND5 XS 2

5

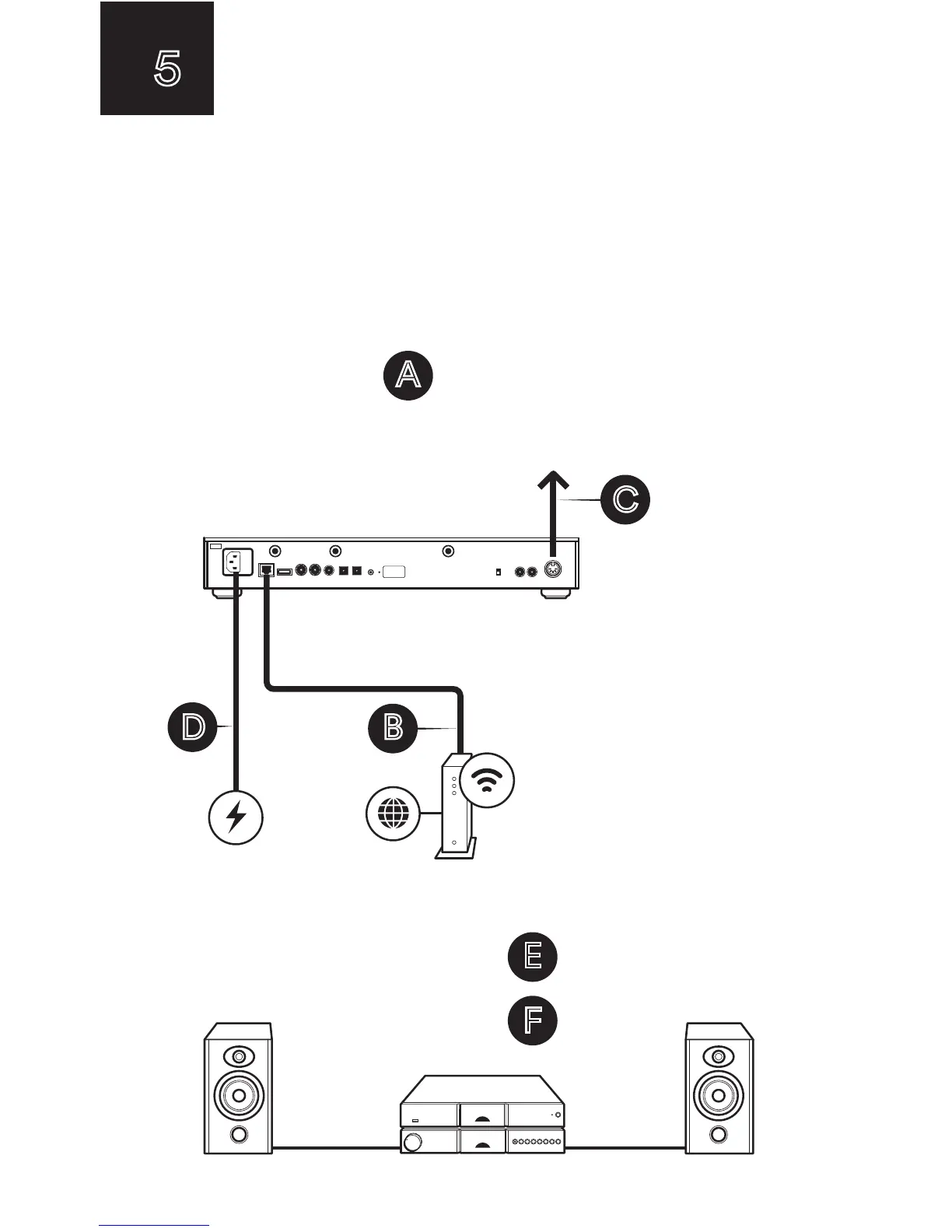

ND5 XS 2 Connection and power
(A) Firstly turn off your hi-fi system. (B) Connect the Ethernet network cable
from router to streamer (if unavailable connect 2 x Wi-Fi antennae instead)
and 1 x Bluetooth antenna to the rear of the unit. (C) Use the interconnect
lead (5-5pin DIN) to connect to the integrated amplifier of your Hi-fi system.
(D) connect the power lead to the unit’s power socket and to the mains.
(E) Then switch on the streamer by pressing the front power button.
(F) Turn your hi-fi system back on.
A
B
D
E
F
Power
connection
Router
Power off your
hi-fi system
To integrated
amplifier
C
Switch on
streamer
Power on
your system
