Nakamichi SoundSpace 21 - Removal Procedures

Remote Control Unit (SS-10/11/12/21)
2
CONTENTS
1. REMOVAL PROCEDURES................................................................................................................................ 2
2. MECHANISM ASS'Y AND PARTS LIST ........................................................................................................... 3
3. MOUNTING DIAGRAMS AND PARTS LIST ..................................................................................................... 5
3.1. Main P.C.B. Ass'y/Sensor P.C.B. Ass'y................................................................................................. 5
4. IC BLOCK DIAGRAMS ...................................................................................................................................... 8
5. BLOCK DIAGRAM ............................................................................................................................................. 10
6. WIRING DIAGRAM ............................................................................................................................................ 11
7. SCHEMATIC DIAGRAM .................................................................................................................................... 12
1. REMOVAL PROCEDURES

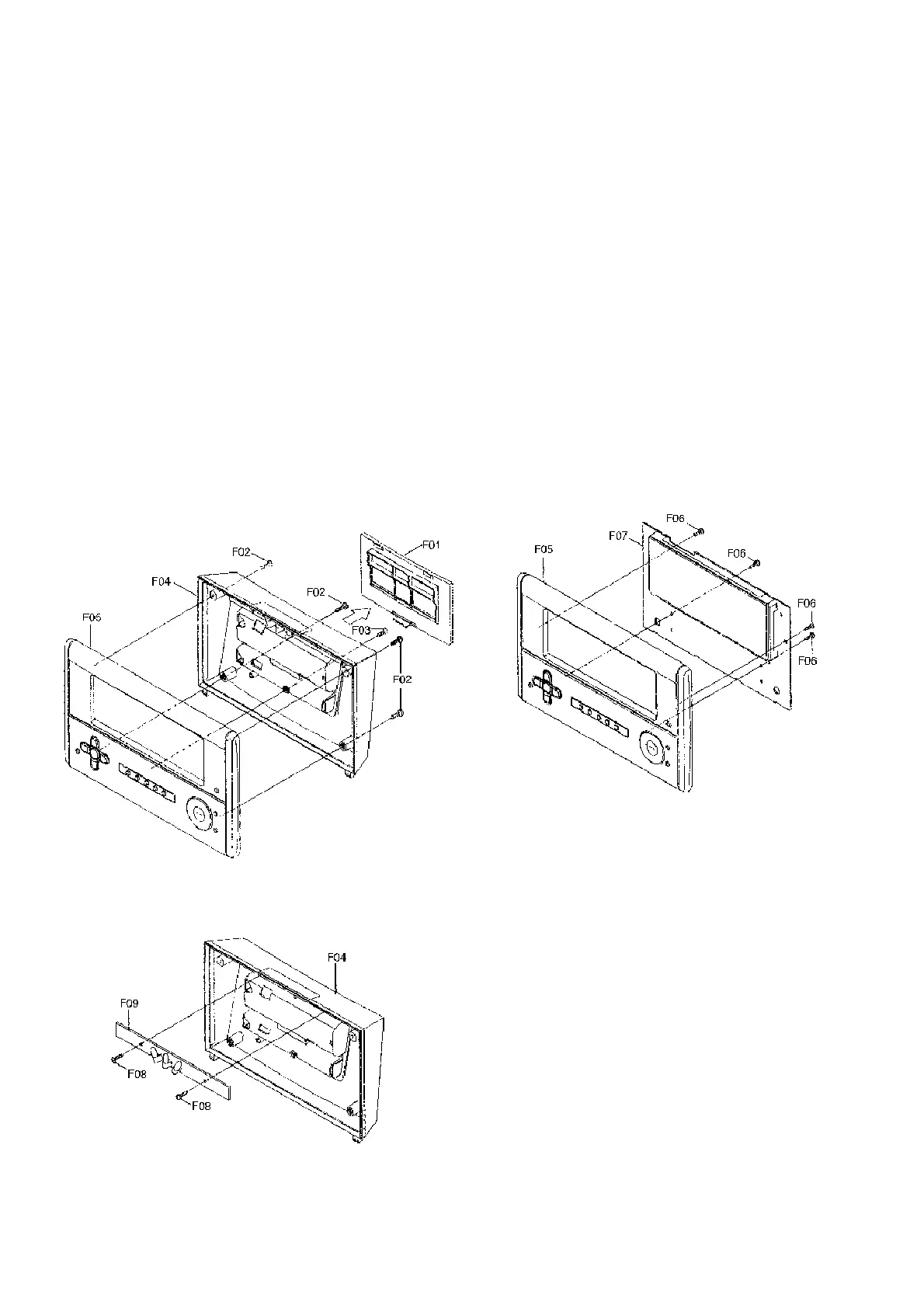

Fig. 1.1
Refer to Figs. 1.1 to 1.3.
(1) Open F01 (Battery Cover).
(2) Remove screws F02 (4 pcs.), F03 (1 pce.) to detach
F04 (Bottom Cabinet Ass'y) and F05 (Front Panel
Ass'y).
Fig. 1.2
(3) Remove screws F06 (4 pcs.) to detach F07 (Main
P.C.B. Ass'y) from F05 (Front Panel Ass'y).
(4) Remove screws F08 (2 pcs.) to detach F09 (Sensor
P.C.B. Ass'y) from F04 (Bottom Cabinet Ass'y).
Fig. 1.3
