7-1-3 Cleaning the Cup Target Sensor
Never use any solvent products to clean the sensor as the solvent may cause
irreparably damage.
1.Remove the display cover as described in section 7-9 page 62.
2.Remove the maintenance door as described in section 7-10 page 64
3. Move the Cup Target Cover in the direction of the arrow, in the following
figure, and clean the surface of the sensor with a clean cotton swab.
4. Reassemble in reverse order.

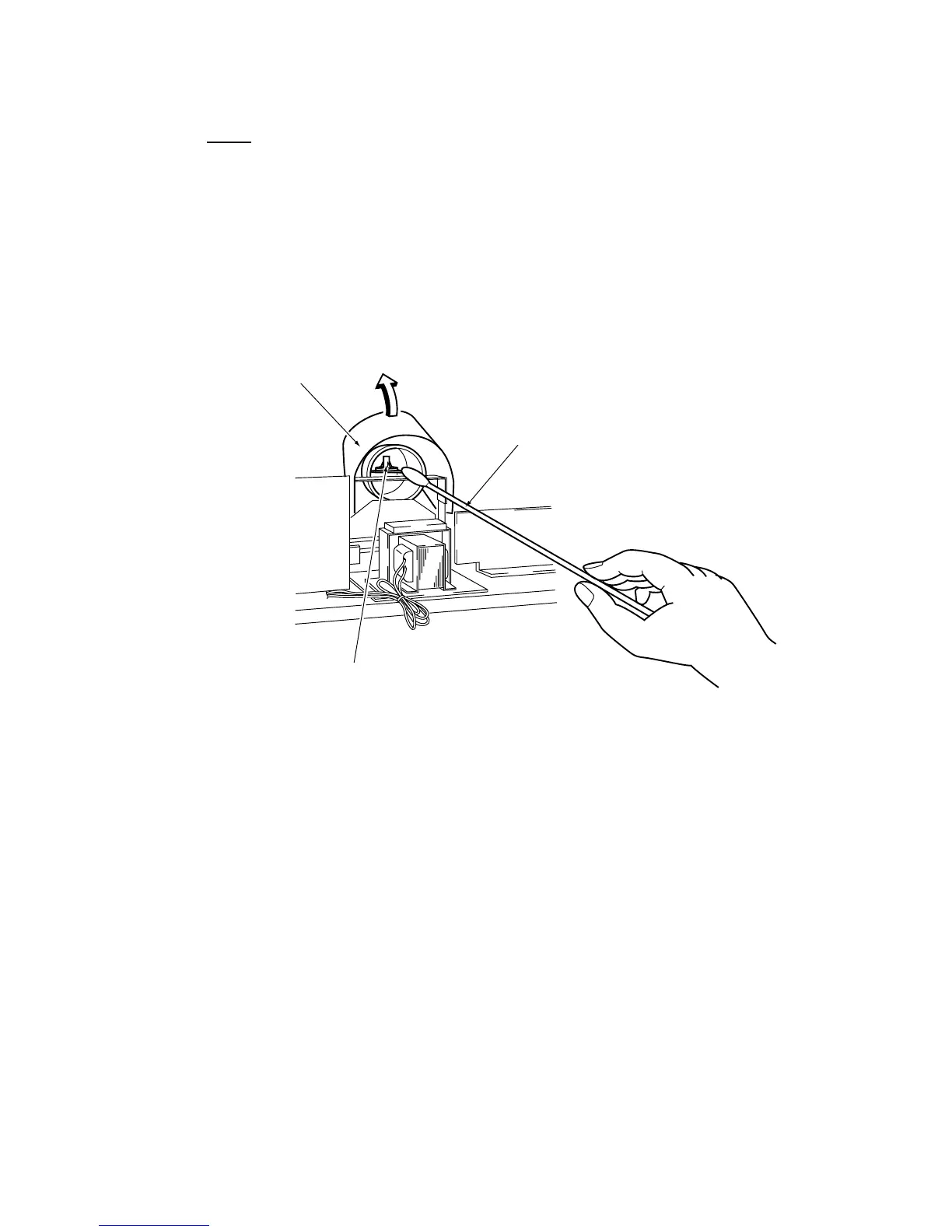

Move the Cup Target
cover in the direction
of the arrow
Cotton swab
Cup Target
sensor Assy
