Page 35

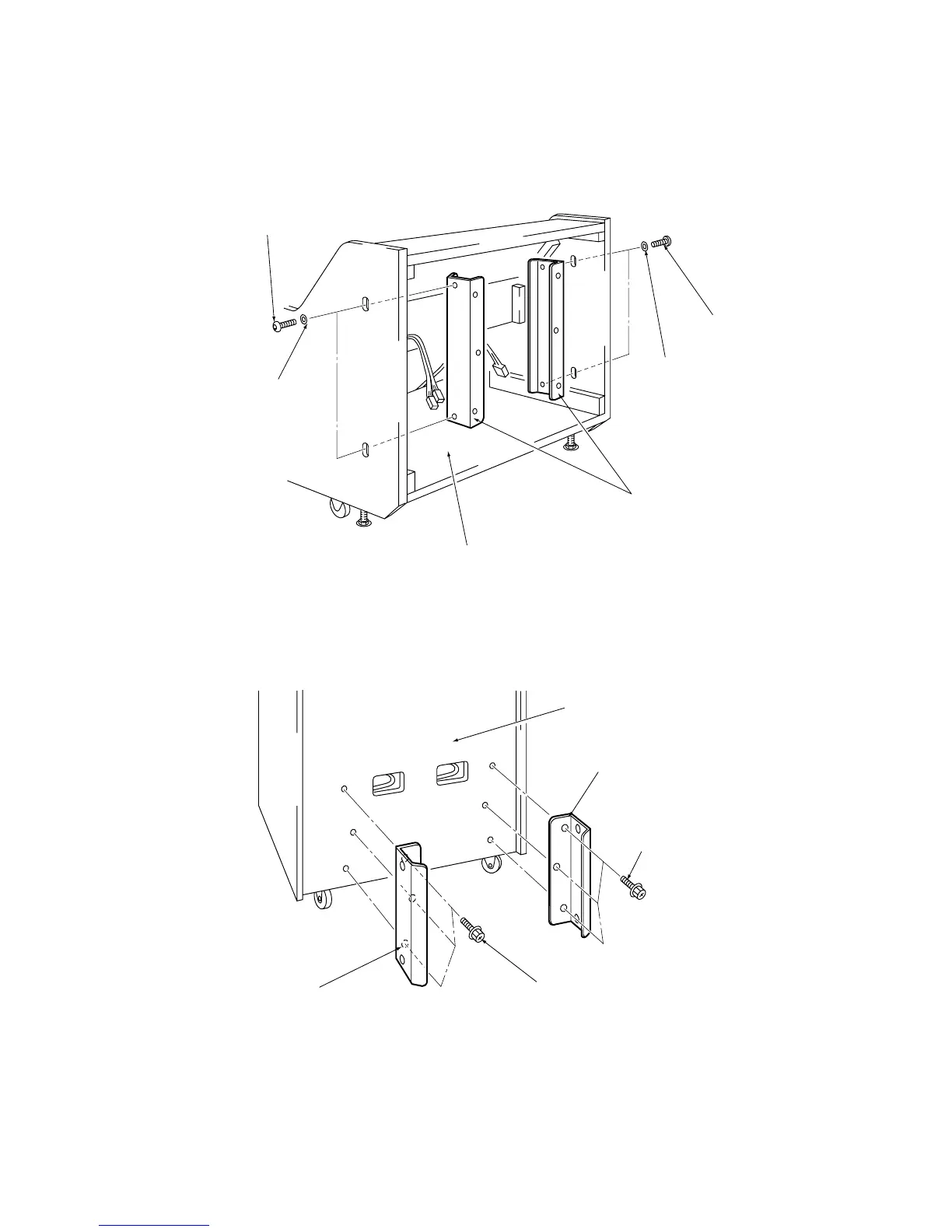

5-1 Joining the Front and Rear Cabinets
1. Remove 4off Button head screws (M8x35) and remove the Joint Brackets from
inside the Gun Cabinet. (Do not lose the screws as these are required for refitting
later).
2. Fit the Joint Brackets to the Target Cabinet with 6off Button head screws
(M8x35), with flat washers, supplied.
Button head screw
(M8x35) x2
Spring washer
(M8) x2
Joint brackets
Gun Cabinet
Spring washer
(M8) x2
Button head screw
(M8x35) x2
Target cabinet
Joint bracket
Button head screw
(with flat washer)
(M8x35)
Joint bracket
Button head screw
(with flat washer)
(M8x35)
