Page 36

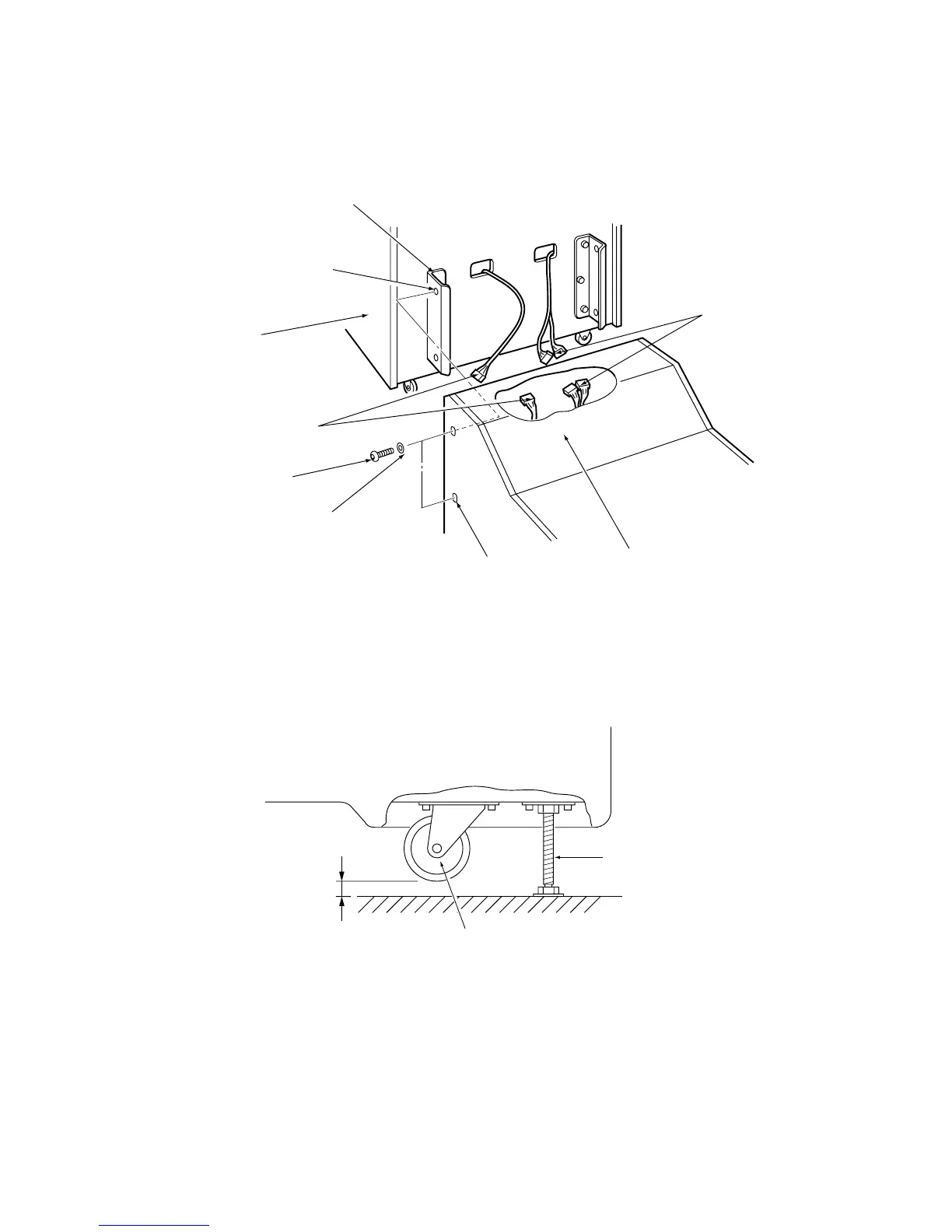

3. Connect the connectors and slide the Gun Cabinet upto the Target Cabinet,
taking care not to trap any wires, and retain using the 4off Button head screws
removed in 1 above.
4. When the game is fully assembled and in its correct position, lower the four level
adjusters on the Gun Cabinet, with a spanner, so that the game is level and the
castors are raised from the floor by approx. 5mm. Tighten the lock nuts with a
spanner to ensure that the level adjusters do not move.
Connectors
Gun Cabinet
Connectors
Threaded Hole
Joint bracket
Target Cabinet
Button head screw
(M8x35)
x2 each side
Spring washer
(M8)
x2 each side
Slotted hole
Adjustable Foot
Castor
Approx. 5mm
Target Cabinet
To Next Page
