CHAPTER 3: PROBLEM SOLVING The Scooter
™

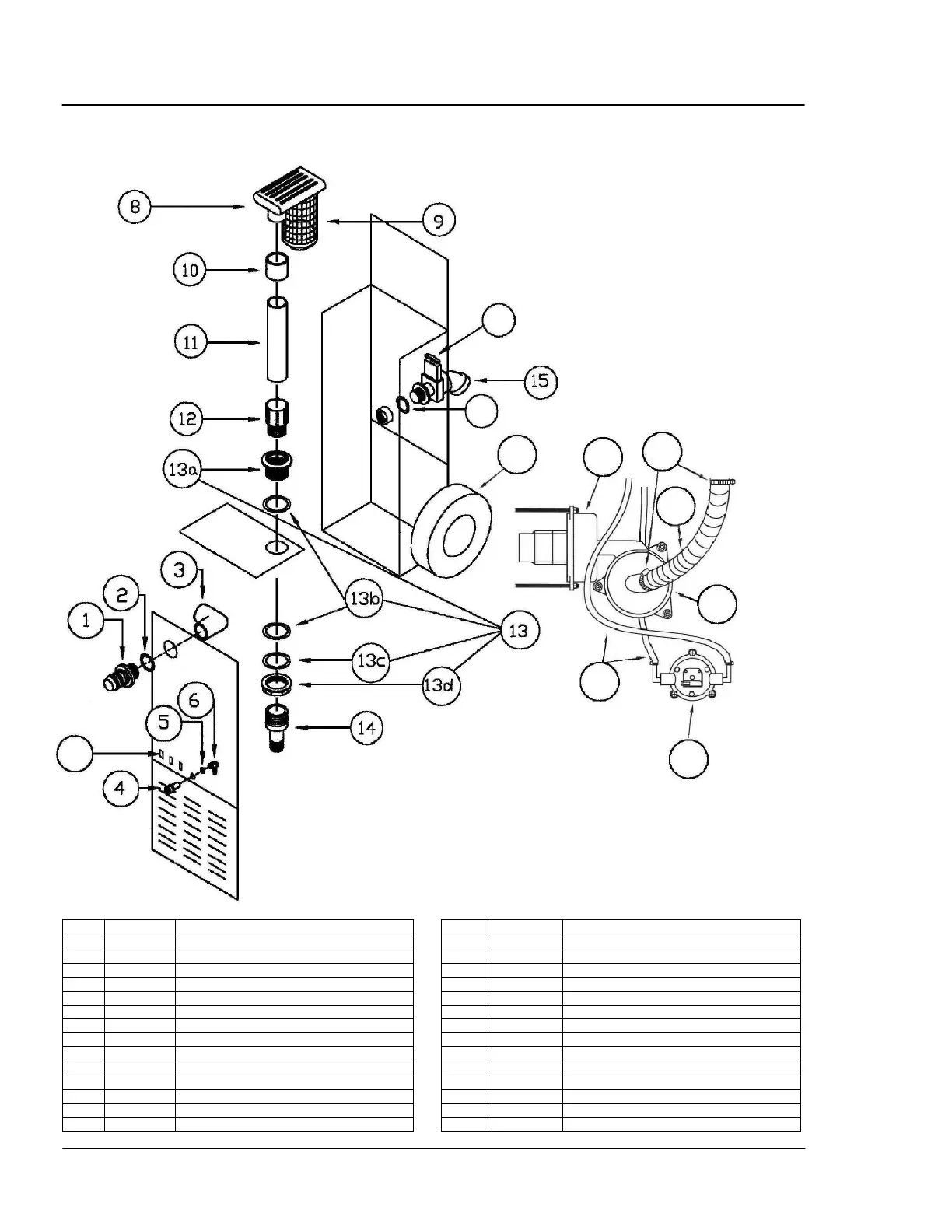

6. SERVICE KIT FOR STAND PIPE ASSY COMPLETE AND DUMP VALVE
No.
PART No.
DESCRIPTION
No.
PART No.
DESCRIPTION
1
P265
1 ½” MALE HOSE BARB
15
P417
DOWN SPOT
2
G1RR
RRR GASKET
16
P280
DUMP VALVE 1 ½”
3
P408
FEMALE THREAD X FEMALE SLIP 90º 1 ½”
17
G657
1 ½” RUBBER GASKET
4
P489
QUICK CONNECT FEMALE ¼”
18
P333
PNEUMATIC WHEEL 10”
5
P416
WASHA 9/16” STAINLESS STEEL
19
P340
VACUUM MOTOR SMALL, 2 STAGE STRAIGHT
6
P114
HOSE BARB 90º BRASS ¼” x 3/8”
19
P377
VACUUM MOTOR SMALL, 3 STAGE STRAIGHT
7
P292
ROCKER SWITCH
20
P340C
VACUUM MOTOR SMALL, 2 STAGE SLANT
8
P287
FLOAT ASSY
20
P377C
VACUUM MOTOR SMALL, 3 STAGE SLANT
9
P313
BALL AND CAGE
21
P278
HOSE CLAMPS WORN GEAR 1
13
/16”–2 ¾”
10
P112
1 ½” PVC SLIP x SLIP
22
P415
WIRE HOSE 2”
11
P312
17 ½” X 1 ½” PVC
23
P392
GRAY HOSE 3/8” – 2FT
12
P402
MALE THREAD 1½” X FEMALE SLIP 1 ½”
24
P316
SHUR FLO PUMP 100 PSI
13
P413
LUCKNUT FITTING 1 ½” ASSY
24
P316
SHUR FLO PUMP 150 PSI
14
P540
HOSE BARB 1 ¼” x 1 ½” MALE THREAD
16
17
18
7
19
20
21
22
23
24
7
8
