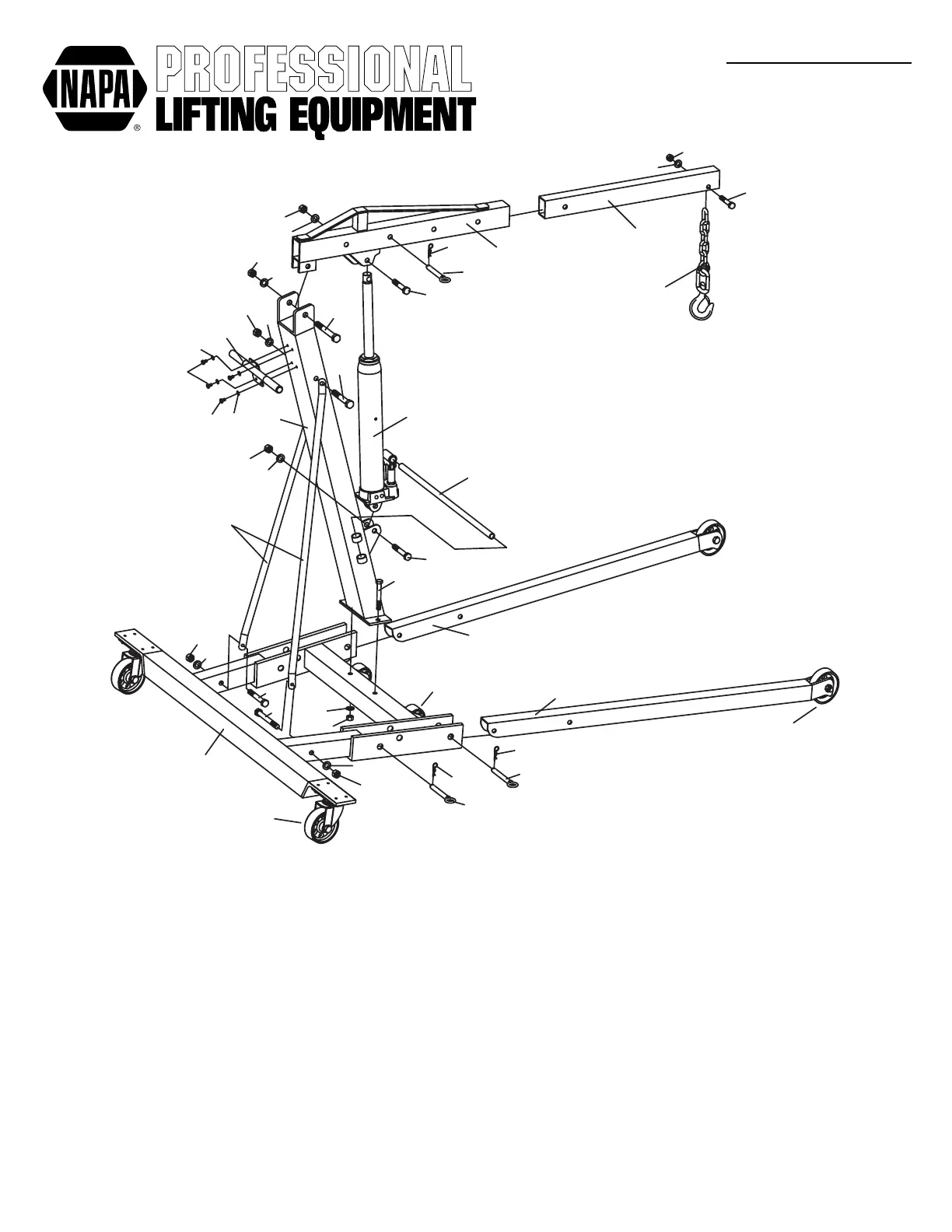

791-6021 5 rev. 12/06/13
MODEL # 791-6021
1-1/2 TON CapaCiTy
CRaNE
1
5
2
3
4
4
2
3
2
3
7
8
7
8
9R
10
11
4
12
9L
13
14
15
16
17
18
23
24
19
30
16
15
20
21
21
20
22
15
16
25
7
26
27
28
29
3
6
1 RS5218A01Y Base Frame 1
2 * Nut M14 5
3 * Washer 14 5
4 * Bolt M14×95 4
5 RS5218A05 Rear Caster Assembly 2
6 RS521830 Middle Wheel 2
7 * R-Clip 5
8 * Detent Pins 4
9L RS5218A09LBL Left Leg Extension 1
9R RS5218A09RBL Right Leg Extension 1
10 RS521831 Front Leg Wheel 2
11 RS5218A11BL Mast Brace 2
12 * Bolt M16×90 1
13 RS521812 Pump Handle 1
14 RS5218AHR Hydraulic Ram (Including. #13) (85mm Ø tank) 1
14A RS5218AHRA Hydraulic Ram (Including. #13) (75mm Ø tank) 1
15 * Washer 16 3
Index No. Part No. Description Qty. Index No. Part No. Description Qty.
16 * Nut M16 3
17 RS521810BL Upright Mast 1
18 * Bolt M16×100 1
19 RS521819BL Push Bar 1
20 * Washer 8 12
21 * Screw M8×12 12
22 * Bolt M16×70 1
23 * Washer 18 1
24 * Nut M18 1
25 * Detent Pin 16 1
26 RS521825BL Boom 1
27 RS521826Y Boom Extension 1
28 * Bolt M14×70 1
29 RS5218A29 Hook and Chain Assembly 1
30 * Bolt M18×100 1
31 RS6021LK Product Label Kit (not shown) 1
Parts identified by an asterisk, plus the caster hardware, are available in the bolt kit, RS5218ABK
Also available: RS5218AHRRK Repair Kit F/RS5218AHR (85mm Ø tank)
RS5218AHRRKA Repair Kit F/RS5218AHRA (75mm Ø tank)
