Napa 791-6021 - Hydraulic Ram Assembly (85 mm Ø Tank); Hydraulic Ram Assembly (75 mm Ø Tank)

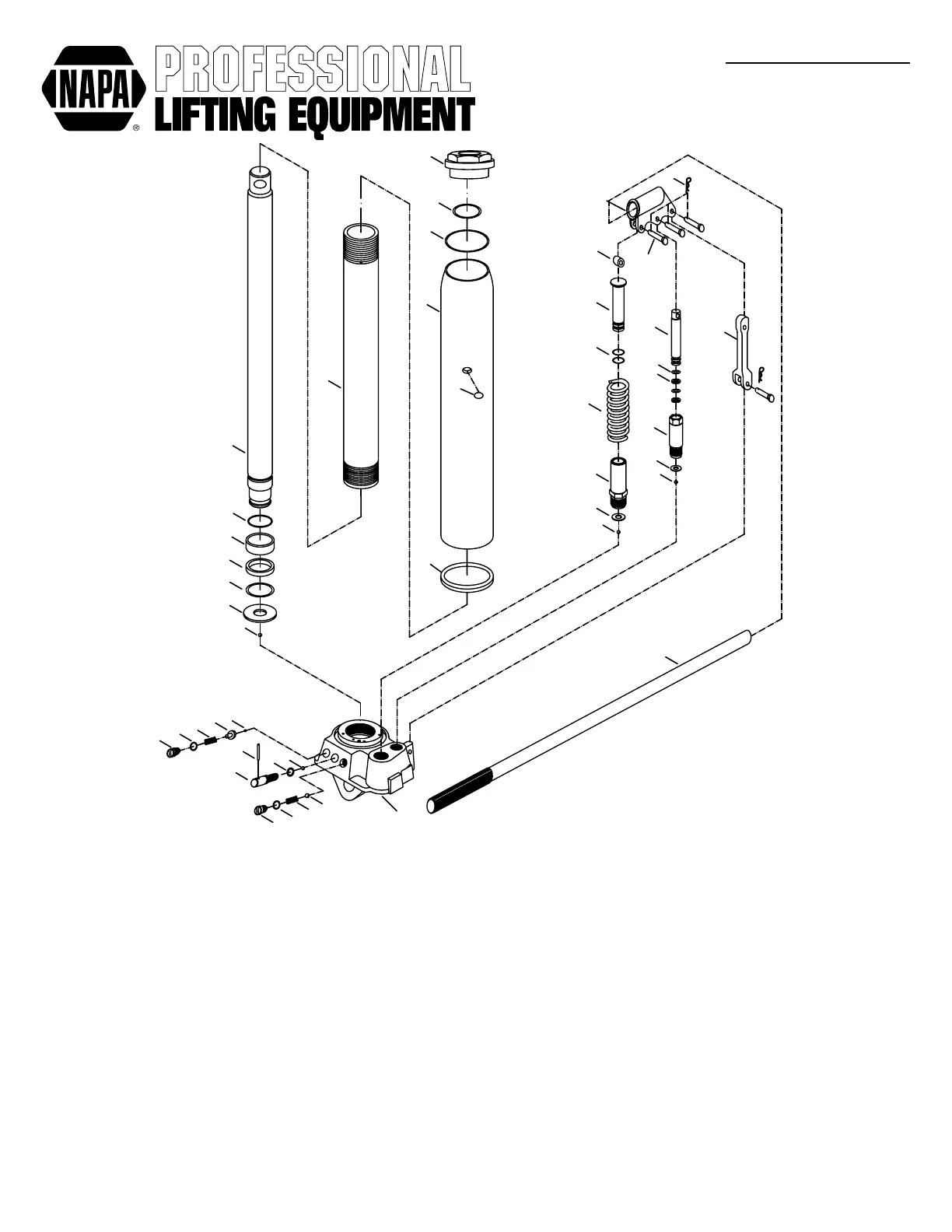

791-6021 6 rev. 12/06/13
MODEL # 791-6021
1-1/2 TON CapaCiTy
CRaNE
1 Ram Base 1
2 Screw 1
3 * O-Ring 2
4 Spring 1
5 * Steel Ball 8 1
6 * Steel Ball 6 5
7 Pin 1
8 Release Valve 1
9 Pressure Set Screw 1
10 * O-Ring 1
11 * Pressure Set Spring 1
12 Spring Base 1
13 * Steel Ball 4 1
14 Bottom Plate 1
15 * O-Ring 1
16 * Washer 1
17 Piston Ring 1
18 Retaining Ring 32 1
19 Piston 1
20 Oil Tank 1
21 * Bottom Sealing Ring 1
Index No. Part No. Description Qty. Index No. Part No. Description Qty.
22 * Oil Refill Cap 1
23 Reservoir 1
24 * Top Sealing Ring 1
25 * O-Ring 1
26 Top Nut 1
27 Handle Yoke 1
28 Roller 1
29 Pump Piston A 1
30 * O-Ring 2
31 Pump Piston Spring 1
32 Pump Piston Housing A 1
33 * Sealing Ring 1
34 * Sealing Ring 1
35 Pump Piston Housing B 1
36 * O-Ring 2
37 Pump Piston Retaining Ring 2
38 Pump Piston B 1
39 Pin 4
40 R-Clip 4
41 Handle Yoke Linkage 1
42 RS521812 Handle 1
Parts identified by an asterisk are available in repair kit, RS5218AHRRK (85mm Ø Tank), RS5218AHRRKA (75mm Ø Tank).
Only Index No.'s identified by Part No. are available individually.
1
2
3
4
5
6
3
7
8
13
12
11
10
9
6
6
6
14
15
16
17
18
19
20
21
23
24
25
26
33
32
31
30
28
27
40
39
38
37
36
35
34
41
42
22
29
RS5218AHR
Hydraulic Ram
(85mm Ø Tank)
RS5218AHRA
Hydraulic Ram
(75mm Ø Tank)
