5.4 1400C CAST LID LEVELLING
A. Loosen the clinching nut. (4 places)
B. Tighten or loosen the levelling
screw in the adjusting nut.
C. Tighten the clinching nut.
LEVELLING
SCREW
ADJUSTING
NUT
CLINCHING
NUT
HINGE
BRACKET
CAST TOP

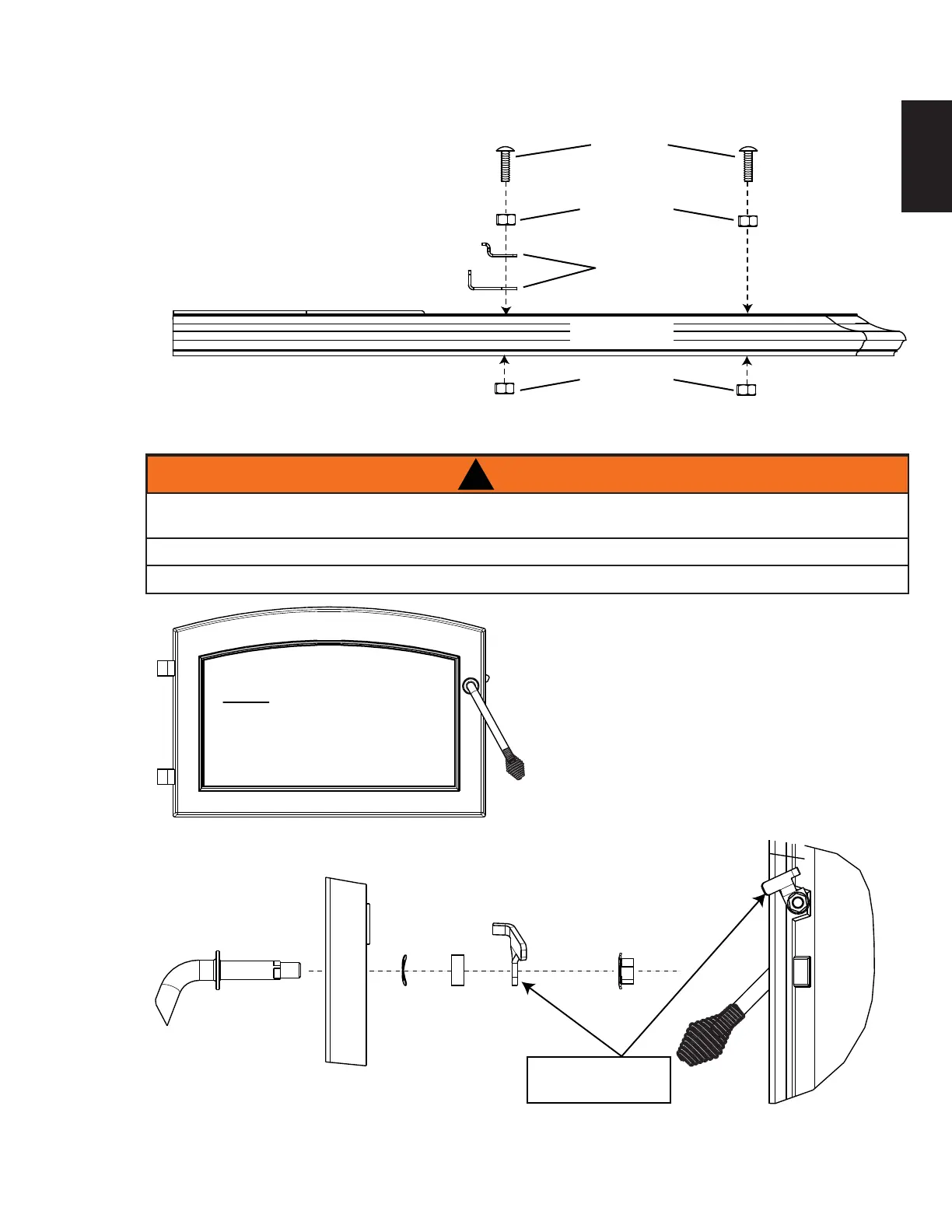

5.5 DOOR HANDLE INSTALLATION
DOOR
HANDLE
DOOR HANDLE
LATCH
LOCK
NUT
DOOR
SPACER
FRONT VIEW
NOTE: Position of
door handle latch.
98.1
NOTE: DOOR MAY NOT BE AS
ILLUSTRATED
SPRING
WASHER
!
WARNING
BURNING YOUR APPLIANCE WITH THE DOORS OPEN OR AJAR CREATES A FIRE HAZARD THAT
MAY RESULT IN A HOUSE AND OR CHIMNEY FIRE.
DO NOT STRIKE OR SLAM DOOR.
NEVER REMOVE THE DOOR WHEN THE APPLIANCE IS HOT.
