2.8 EXTERNAL CONNECTIONS

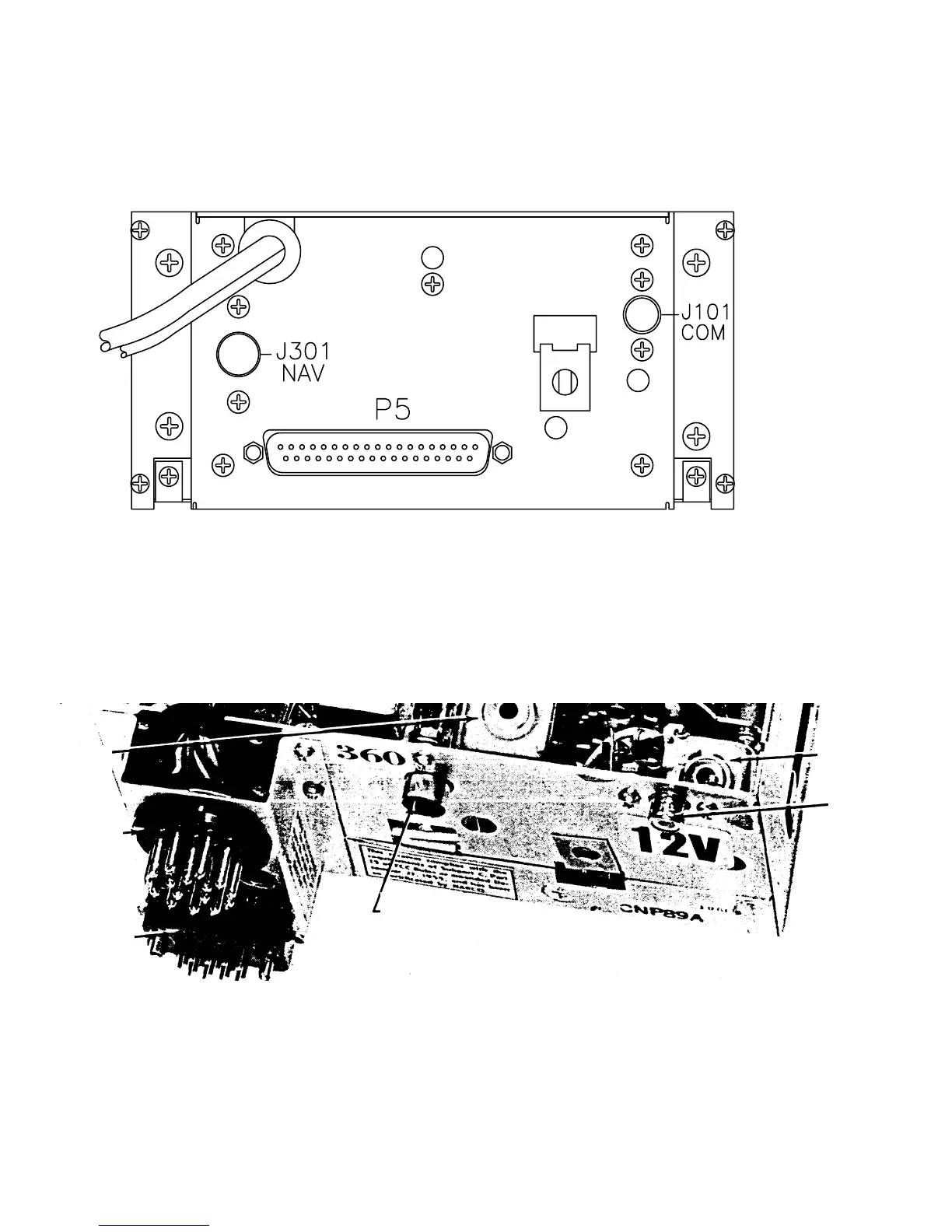

Figure 2-4 shows the locations of cables, connectors and antenna inputs of the MK-
12DR. Figure 2-5 shows the pinouts of the 16 pin and 6 pin connectors attached to
the MK-12DR and the 16 pin jumper plug.
Fig. 2-4
2.8.1 PIPER SPECIAL
There were a number of MK12s manufactured as Piper specials. Refer to Figure 2-5
to see the rear panel of a Piper special. Figure 2-7 lists what the connections of P301
were and the appropriate connections on the MK12D/R. A mating connector for
P301 of the MKD/R would have to be found to complete the installation.
Fig. 2-5
T-102
J-101
T-101
P-101
P-301
J-301
JUNE 1999
REV. F
8
