NARVI NC 16 - Faucet Installation for Water Tank Models; Model Specifications and Airflow Control; Air Flow Control Plates Information

4
Technical data Narvi 16 NC Narvi 20 NC Narvi 24 NC Narvi 20 NC VS
Height 78 cm 80 cm 82 cm 73 cm
Width 50 cm 54 cm 58 cm 59 cm
Depth 58 cm 58 cm 58 cm 57 cm
Operation weight 122 kg 136 kg 162 kg 124 cm
Stone Ø 10-15 cm 20 kg 40 kg 40 kg 20 kg
Stone Ø 5-10 cm 30 kg 20 kg 40 kg 30 kg
Steam room size 8–16 m
3
8–20 m
3
10–24 m
3
8–20 m
3
External diameter of the connective ue 119 mm 119 mm 119 mm 119 mm
Distance of the bottom edge of the
connective ue from the oor (min.) +
adjustment space for adjustable legs
0-35 mm
58 cm 58 cm 58 cm 54 cm
Firebox cover 10 mm 10 mm 10 mm 10 mm
Control plate of the rebox 6 mm 6 mm 6 mm 6 mm
Depth of the rebox 415 mm 415 mm 415 mm 415 mm
Height of the rebox 335 mm 335 mm 335 mm 335 mm
Volume of the water tank – – – 23 l
AIR FLOW CONTROL PLATES FOR NARVI NC 16, NC
20, NC 24 and NC 20 VS.
(There is no air ow control plates for NC 20 VS)
INSTALLATION OF THE FAUCET, water
tank models (20 NC VS)
The water tank is on the side of the
stove and it has a large opening for
filling it. The faucet is installed when the
stove is installed.

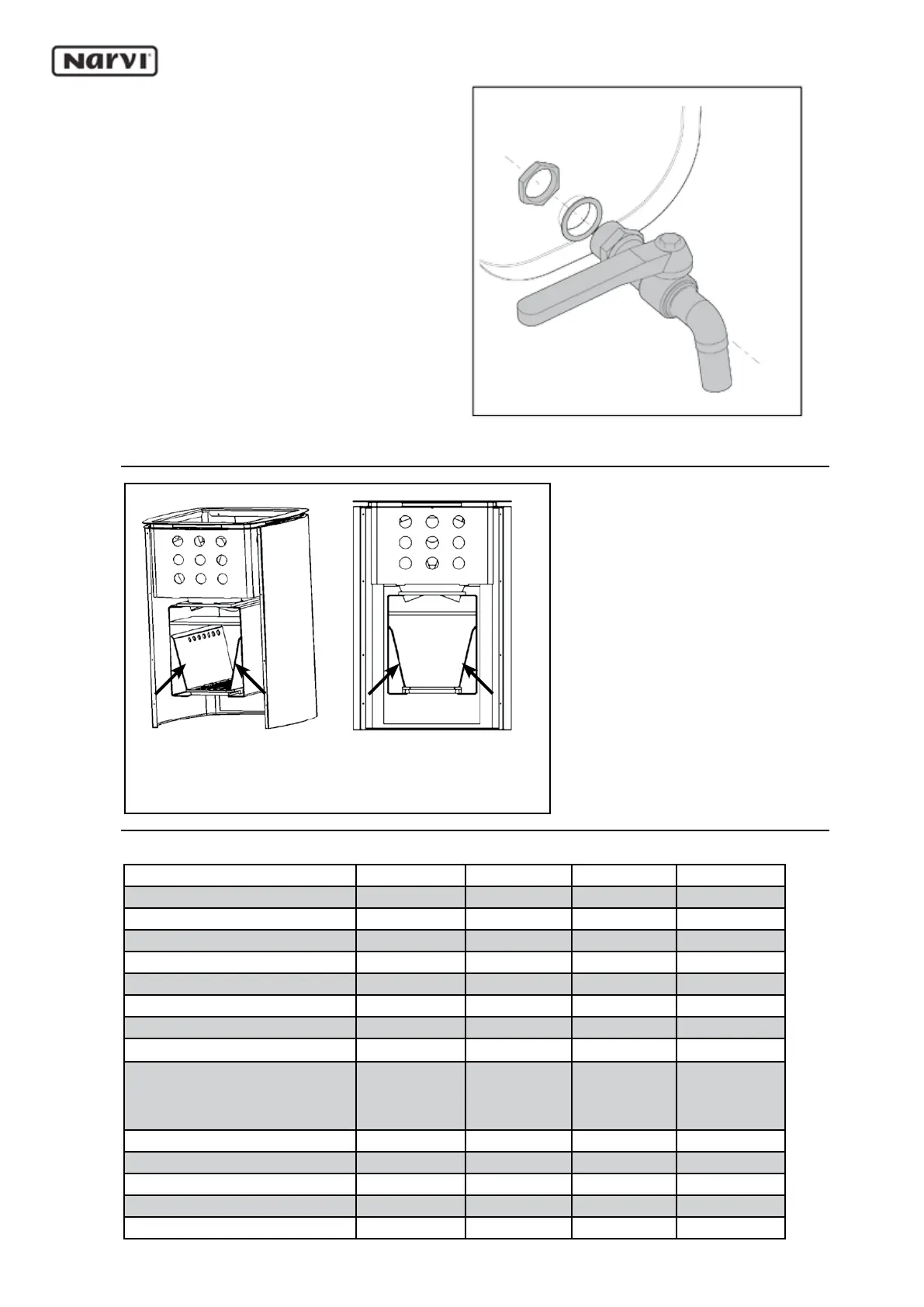

Figure 9. Place the faucet so that the
threads are visible on the inside of the
tank. Place the washer on the outside of
the tank, turn the locking nut into place
with the smooth side against the washer
and tighten, turning the faucet clockwise
and holding the keeper in place with a
wrench.
Figure 9
