National Instruments myRIO-1950 Instructions

2.0 Physical Characteristics
When accessing JTAG on the myRIO-1950 be sure that header J5 is populated. If it is not then populate
this header with a through hole 2x3 0.1" spaced standard header. Note that Pin 1 is labeled with a 1 and
pin 6 is labeled with a 6.

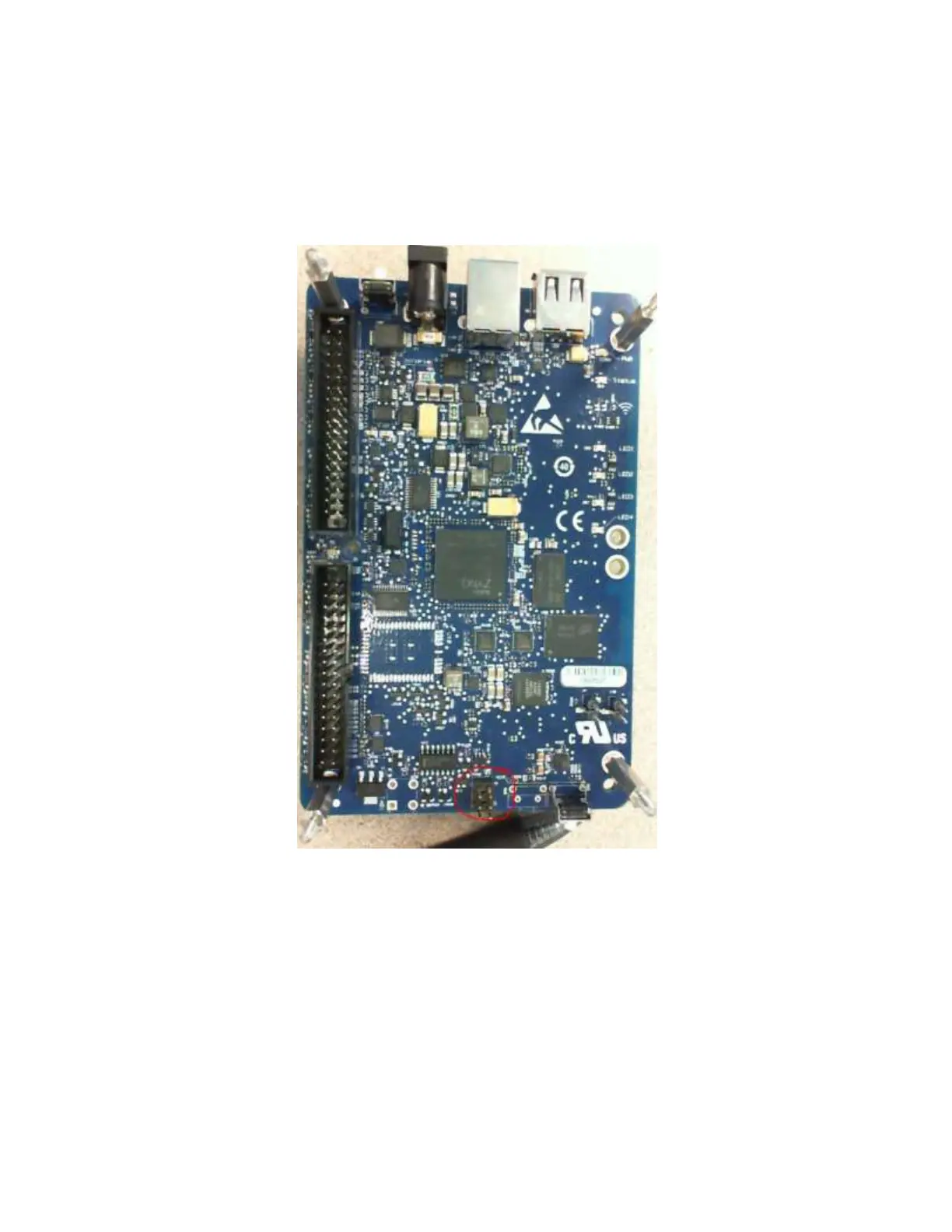

Figure 1: JTAG Header Location

National Instruments myRIO-1950 Specifications

General

Brand	National Instruments
Model	myRIO-1950
Category	I/O Systems
Language	English
