National Instruments NI ELVIS III User Manual

Setting Value
DC O󽗿set
0 V
4.
Click Run to start the FGen/Arb.
5. In Measurements Live, select the Oscilloscope SFP from the Instruments tab.
6.
On the Oscilloscope SFP, configure the Oscilloscope as follows.
Setting Value
Time/div
5 ms
Channel 1 On
Volts/div
1 V
Probe attenuation
1x
Coupling DC
Vertical o󽗿set
0 V
7.
Click Run to start the Oscilloscope.
You should see a 100 Hz sine wave on the Oscilloscope display. Adjust the
settings of the FGen/Arb and observe the changes of the waveform on the
Oscilloscope display.

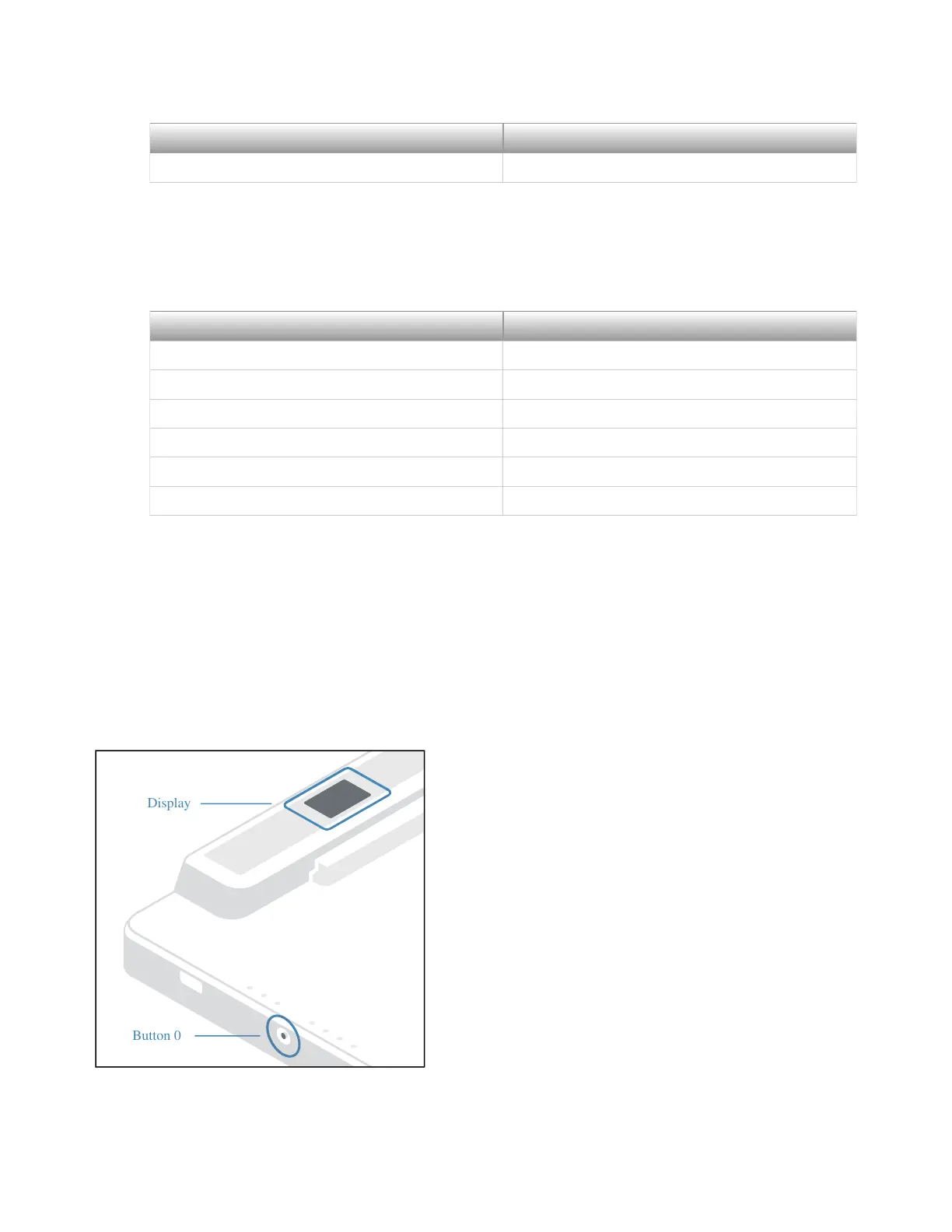

User Programmable Button
The user programmable button on the le-hand side of the NI ELVIS III workstation
serves two purposes. It aids in connecting the NI ELVIS III to your host computer, and
you can programmatically monitor it in a LabVIEW RT or LabVIEW FPGA application.
Display
Button 0
ni.com
24
NI ELVIS III Getting Started
