4. Arm counter 0 to perform simple event counting.
5. Configure counter 1 to perform single-pulse generation.

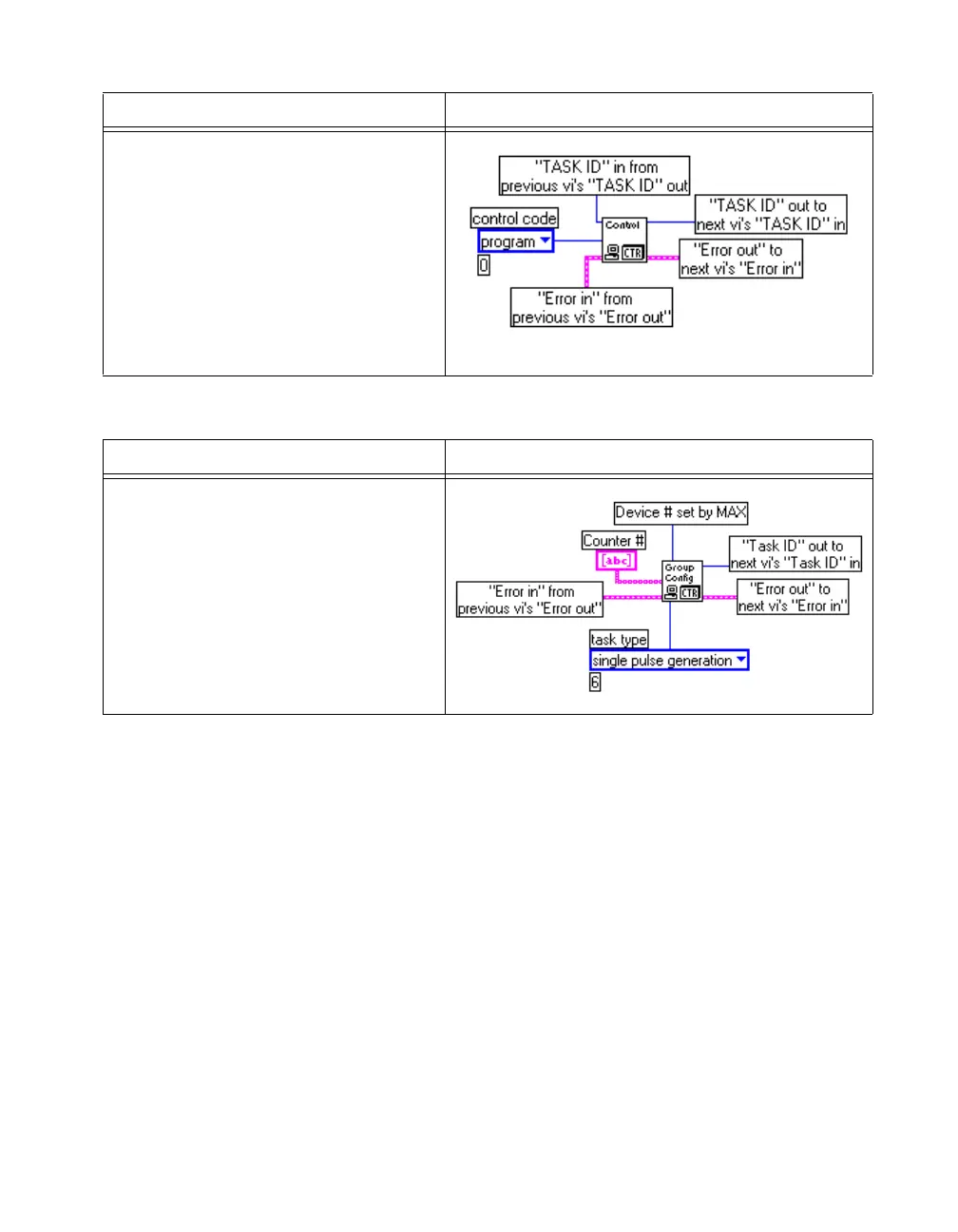

Traditional NI-DAQ Function Call LabVIEW Block Diagram
Call GPCTR_Control with the following
parameters:
deviceNumber: The value set by MAX
gpctrNum:
ND_COUNTER_0
action: ND_PROGRAM
“TASK ID” out connects to “TASK ID” in of step 11.
Traditional NI-DAQ Function Call LabVIEW Block Diagram
Call GPCTR_Set_Application with the
following parameters:
deviceNumber: The value set by MAX
gpctrNum:
ND_COUNTER_1
application: ND_SINGLE_PULSE_GNR
