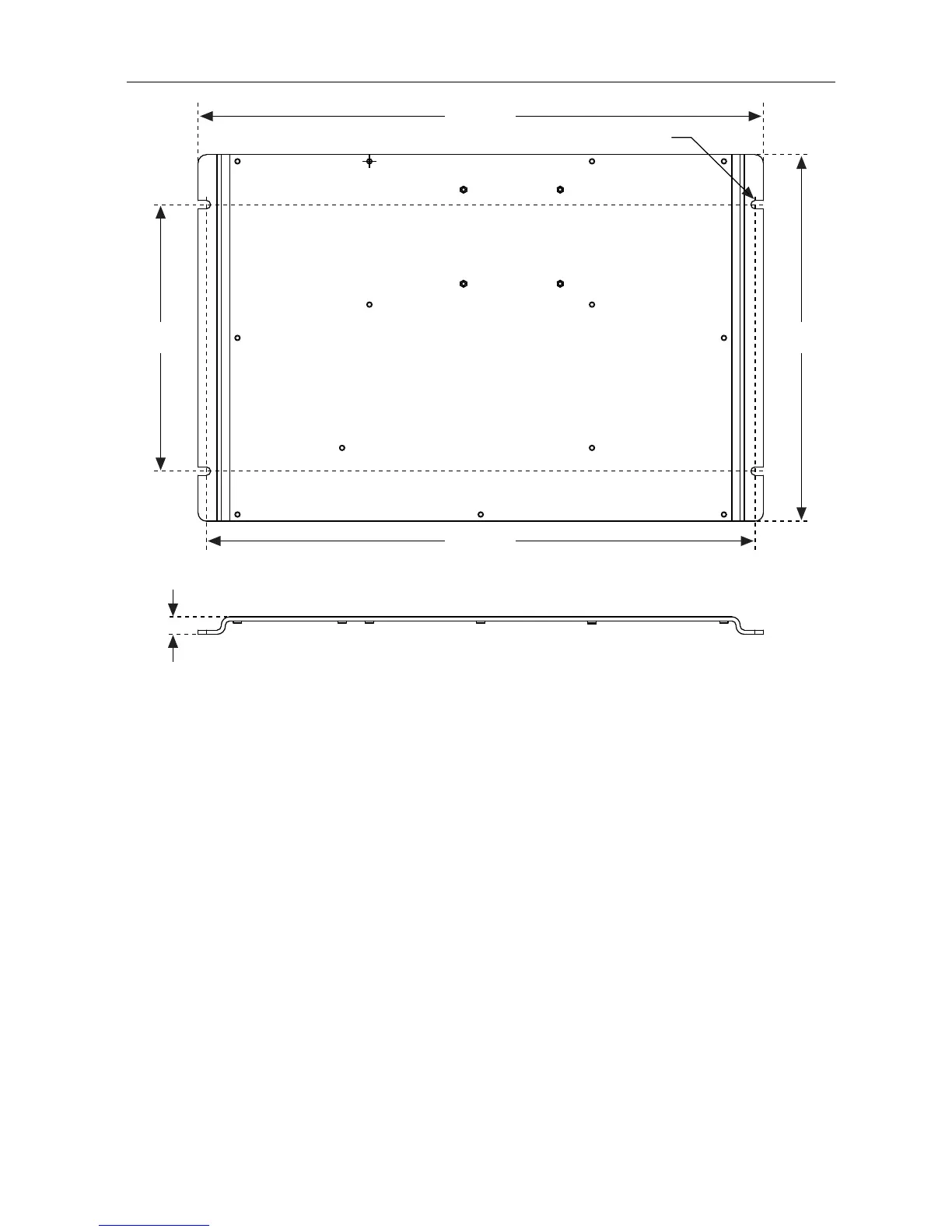

Figure 9. Mounting Plate, Inches (Millimeters)
8.0 in
(203.2 mm)
11.0 in
(279.4 mm)
16.97 in
(430.91 mm)
16.47 in
(418.21 mm)
4X Ø .250 in
(6.35 mm)
.53 in
(13.34 mm)
