National Instruments sbRIO-9687 Getting Started Guide

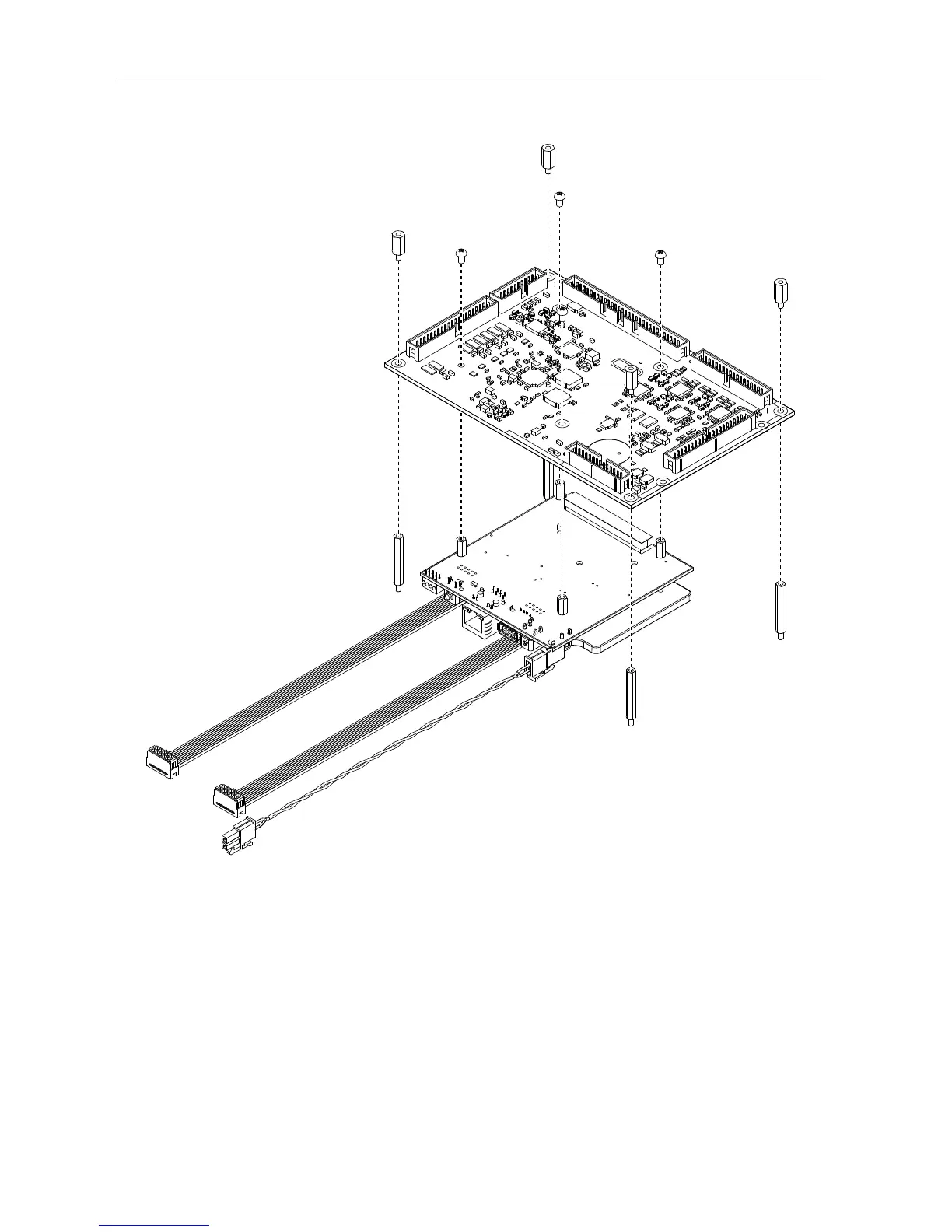

Figure 6. Mating the sbRIO-9683 or sbRIO-9684 to the sbRIO-9607
Mounting the sbRIO-9687
1. Install the sbRIO-9687 handles.
a) Align the handles with the dedicated fixing holes on the sbRIO-9687.
b) Insert two 8-32 × 3/8 in. panhead screws for each handle through the sbRIO-9687.
2. Install the sbRIO-9687.
a) Install the M3 x 43.36, M-F 6 mm Hex standoffs (x9) in the tapped holes for the
sbRIO-9687.
sbRIO-9687 Getting Started Guide | © National Instruments | 9
