NBB Controls +
Components
GmbH
Transmitter Nano-L SMJ 7,2 V

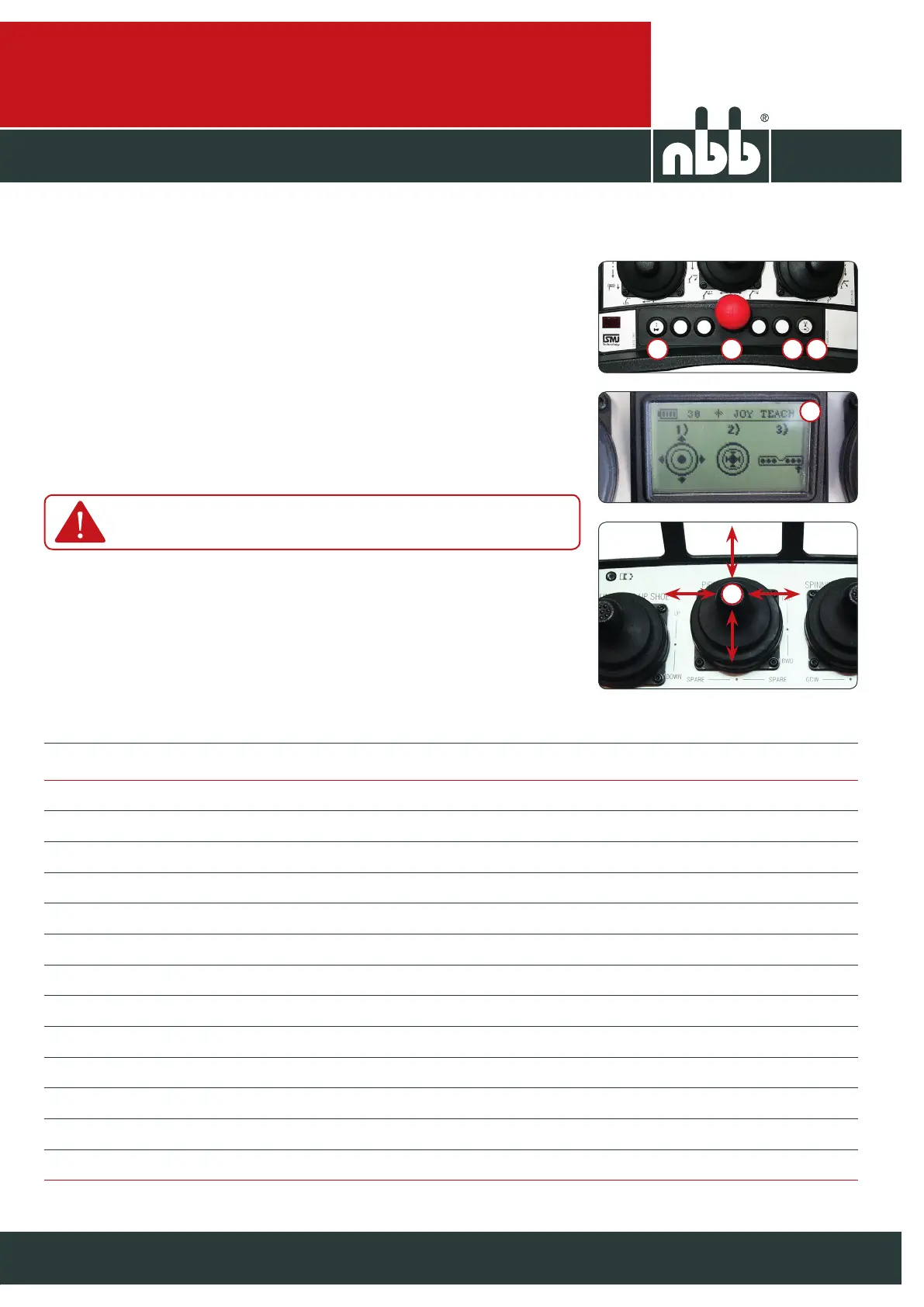

> Surface Mounted Joystick teach mode activation with pushbutton and display
To activate teach mode, the transmitter must be switched off.
1. Press and hold the “Frequency switching” key.
2. Switch the transmitter on.
3. “Joy Teach” and graphical display appear after 2 seconds.
4. Release the “Frequency switching” key.
5. Move the joystick in one direction completely and return to the 0-position. Repeat
this for all directions. If required perform point 5 for all other joysticks.
6. To exit the teach mode press the “On/Horn” key once. All joystick activations are
available to its full extent.
7. Attention! The transmitter is now in working mode!
Push buttons to enter and store min and max values for valves could differ from the description above.
In this case a separate supplemental information sheet will be attached to the operating instructions.
Technical data
Transmitter Nano-L SMJ
Transmission frequency range See nameplate
Data security Addressing each transmitter using a unique Binary bit code combination
LF-modulation FSK – Signal nach CCITT V.23
Baud rate 1.200 – 9.600 Baud (Bit/sec.)
Range Up to 100 m (depending on environment)
Operating voltage Battery 7.2 V NBB
Current consumption 60 – 100 mA
RF output < 10 mW ERP
Protection class IP 65
Operating ambient temperature – 20 to + 70 °C
Weight (without battery) 1.000 g
Masse (L x B x H) 247 x 139 x 117 mm
If “Joy Teach” does not appear in the display, please switch off the transmitter
and start teach mode activation from the beginning!
5
3
42 16
