Transmitter Nano-L SMJ 7,2 V
Surface Mounted Joystick

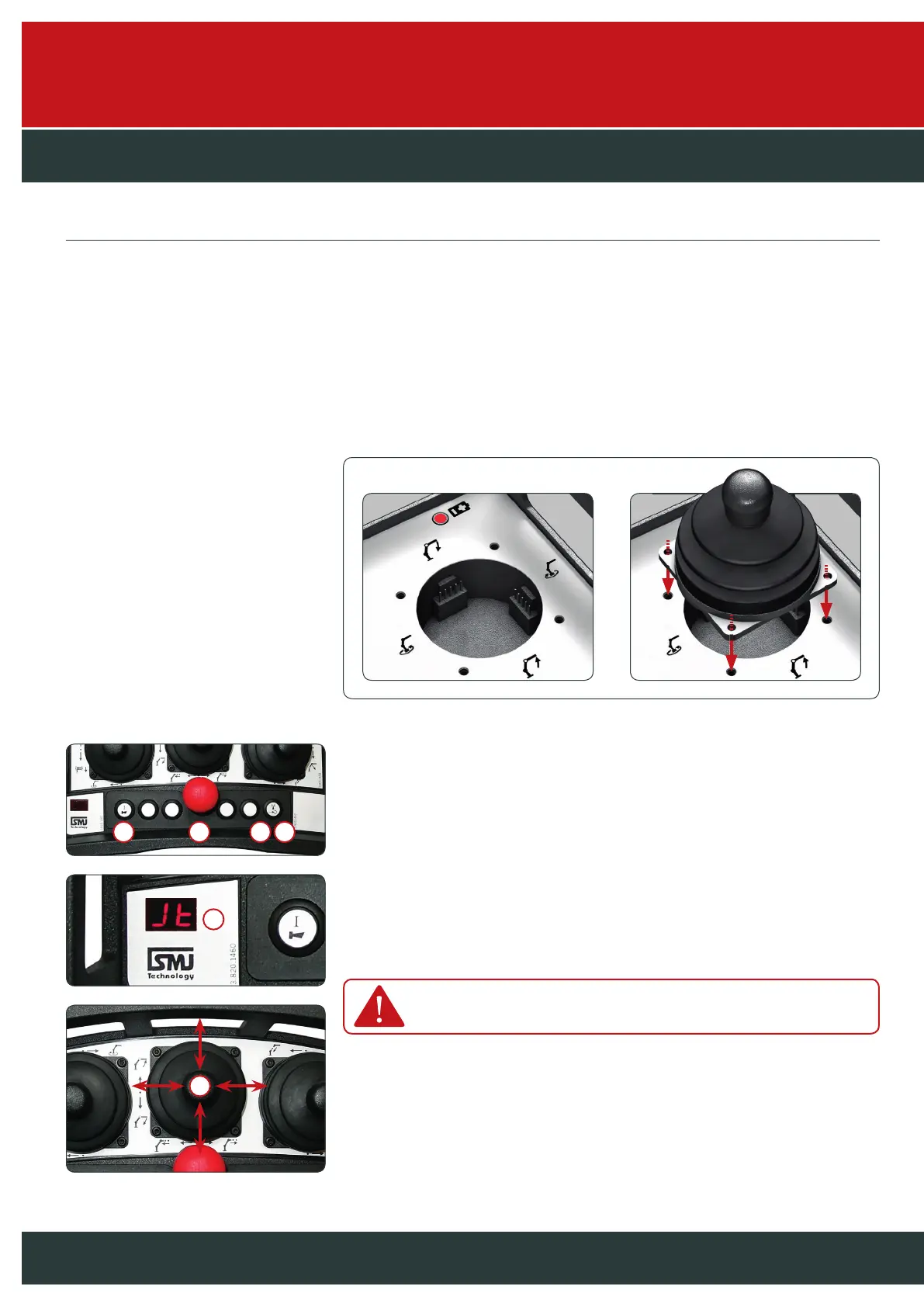

> Changing the Surface Mounted Joystick
– Switch off the transmitter and remove the battery.
– Loosen all 4 screws of the Surface Mounted Joystick with a Torx 10 screwdriver and
remove the screws.
– Remove the Surface Mounted Joystick from the top. Insert the new Surface Mounted Joystick
and make sure that the plugs and sockets are above each other when mounting. Screw down
the Surface Mounted Joystick with the 4 screws previously removed and re-inset the batteries.
Start teach mode after changing the Surface Mounted Joystick (see below).
> Surface Mounted Joystick teach mode activation with pushbutton
To activate teach mode, the transmitter must be switched off.
1. Press and hold the “Frequency switching” key.
2. Switch the transmitter on.
3. The letters “JT” appear in the display after 2 seconds.
4. Release the “Frequency switching” key.
5. Move the joystick in one direction completely and return to the 0-position. Repeat
this for all directions. If required perform point 5 for all other joysticks.
6. To exit the teach mode press the “On/Horn” key once. All joystick activations are
available to its full extent.
7. Attention! The transmitter is now in working mode!
If “JT” does not appear in the display, please switch off the transmitter
and start teach mode activation from the beginning!
