NDS SC350M User Manual

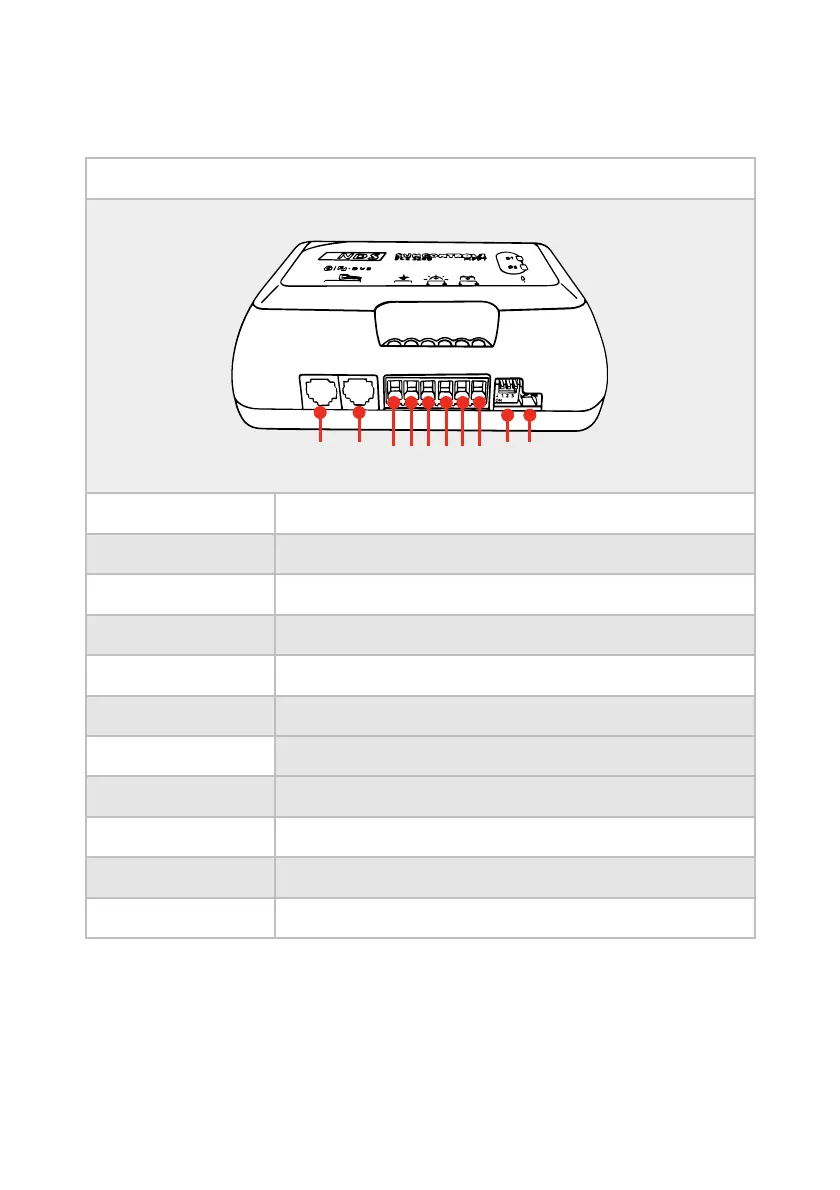

5. STRUCTURE
6
FRONTAL CONNECTION
CONNECTION
FUNCTION
1
Display Bus DTB01 connection
2
N-BUS network connection
3
Solar panel negative connection
4
Battery negative connection
5
Solar panel positive connection 1
6
Solar panel positive connection 2
7
Leisure battery positive connection (B1)
8
Starter battery positive connection (B2)
9
Dip Switch - Charging curve selection
10
Temperature probe connection
1
2
3
4
5
6
7
8
9
10
Fig.2

NDS SC350M Specifications
