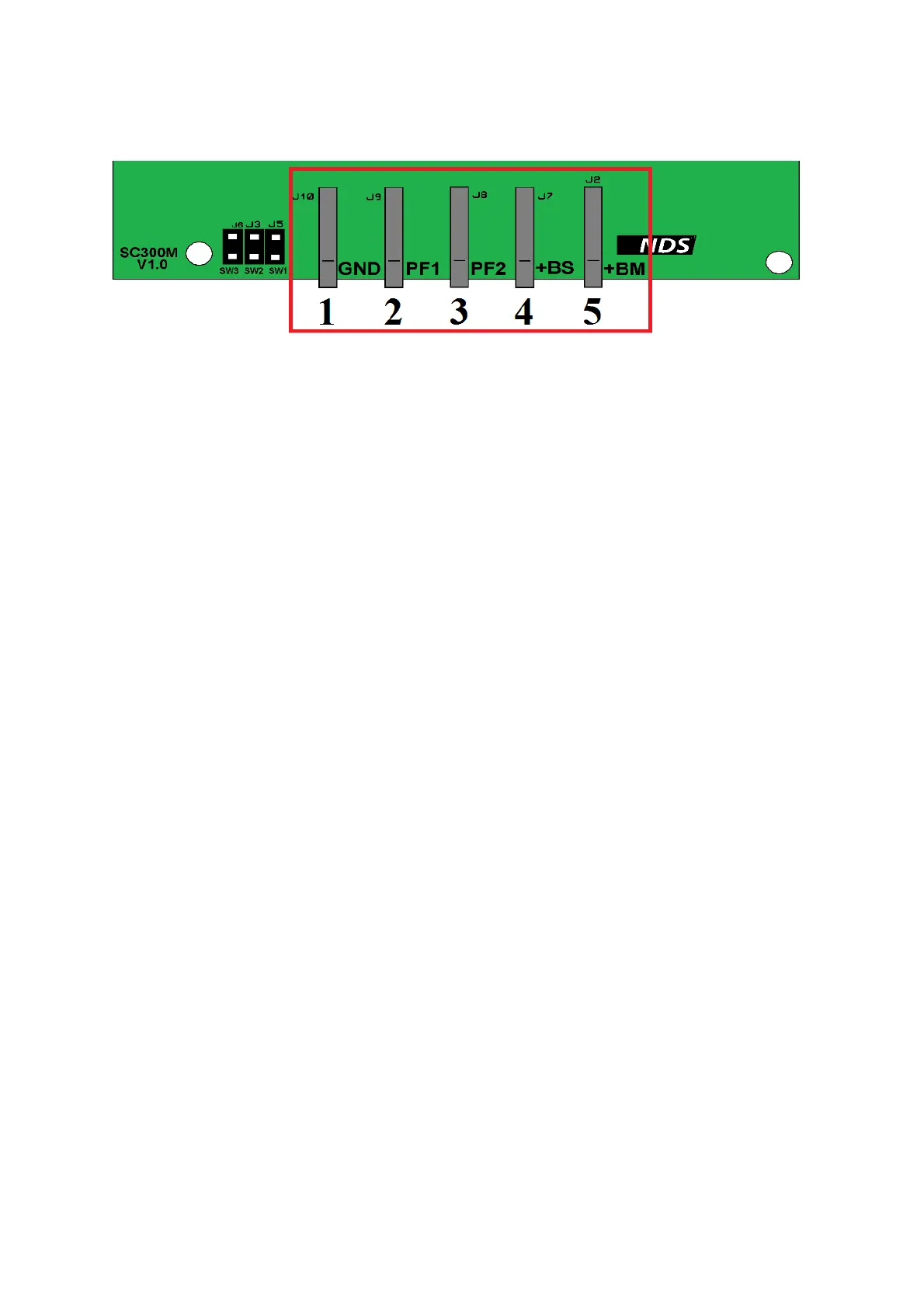

5. CONNECTIONS:
PIN n°1: Service Battery negative pole (GROUND) (and negative cable of the
photovoltaic panels)
PIN n°2: Positive cable of the photovoltaic panel n°1 (PF1)
PIN n°3: Positive cable of the photovoltaic panel n°2 (PF2)
PIN n°4: Service Battery positive pole (or positive common pole if there is a Power
Switch or an iManager)
PIN n°5: Start Battery positive pole
It is recommended to use cables with section of at least 4-6mm²
6
