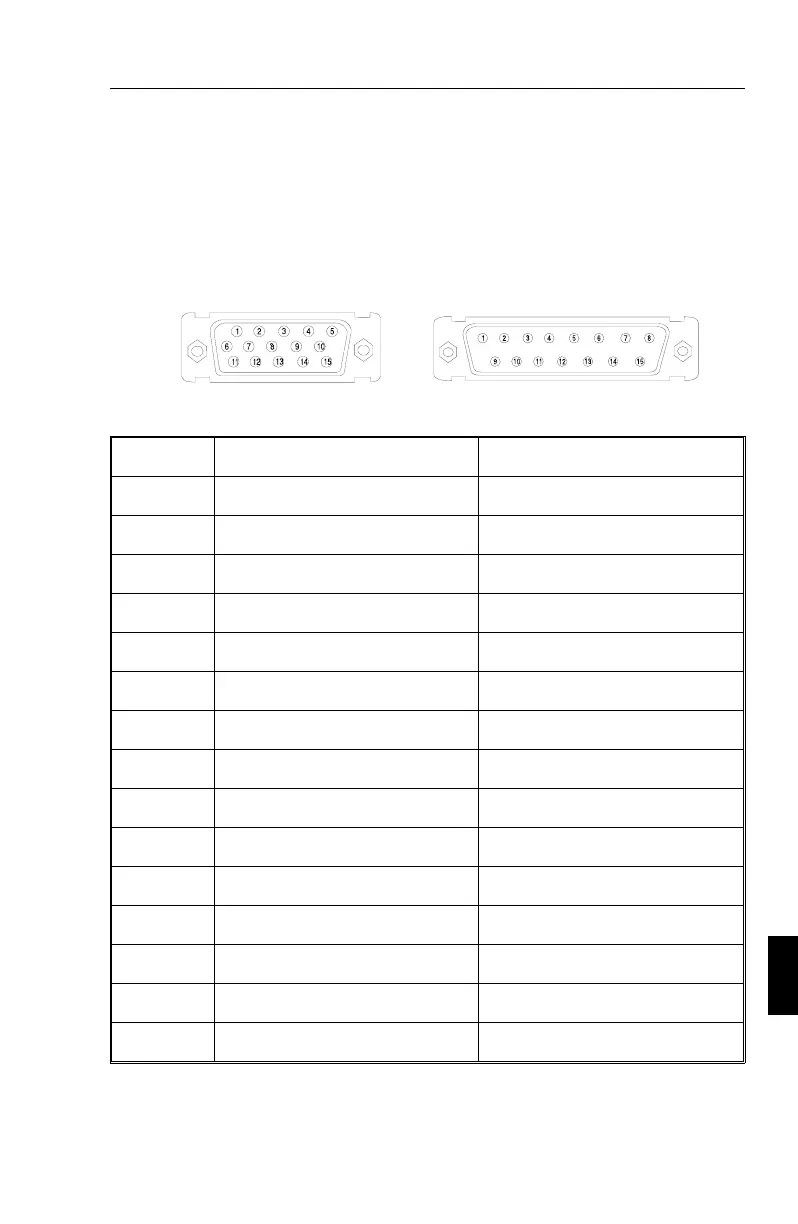

App. A PIN ASSIGNMENTS
For the monitor
Pin No. Mini D-SUB 15P D-SUB-15P
1 RED GROUND
2 GREEN RED
3 BLUE H./ COMP. SYNC
4 NO-CONNECTION SENSE 0
5 GROUND GREEN
6 GROUND GROUND
7 GROUND SDA/SENSE 1
8 GROUND NO-CONNECTION
9 NO-CONNECTION BLUE
10 GROUND SENSE 2
11 GROUND GROUND
12 SDA V.SYNC
13 H.SYNC, H/V.SYNC GROUND
14 V.SYNC GROUND
15 SCL SCL
MINI D-SUB 15 P Macintosh with optional Adapter D-SUB 15 P
App. A PIN ASSIGNMENTS A - 1
