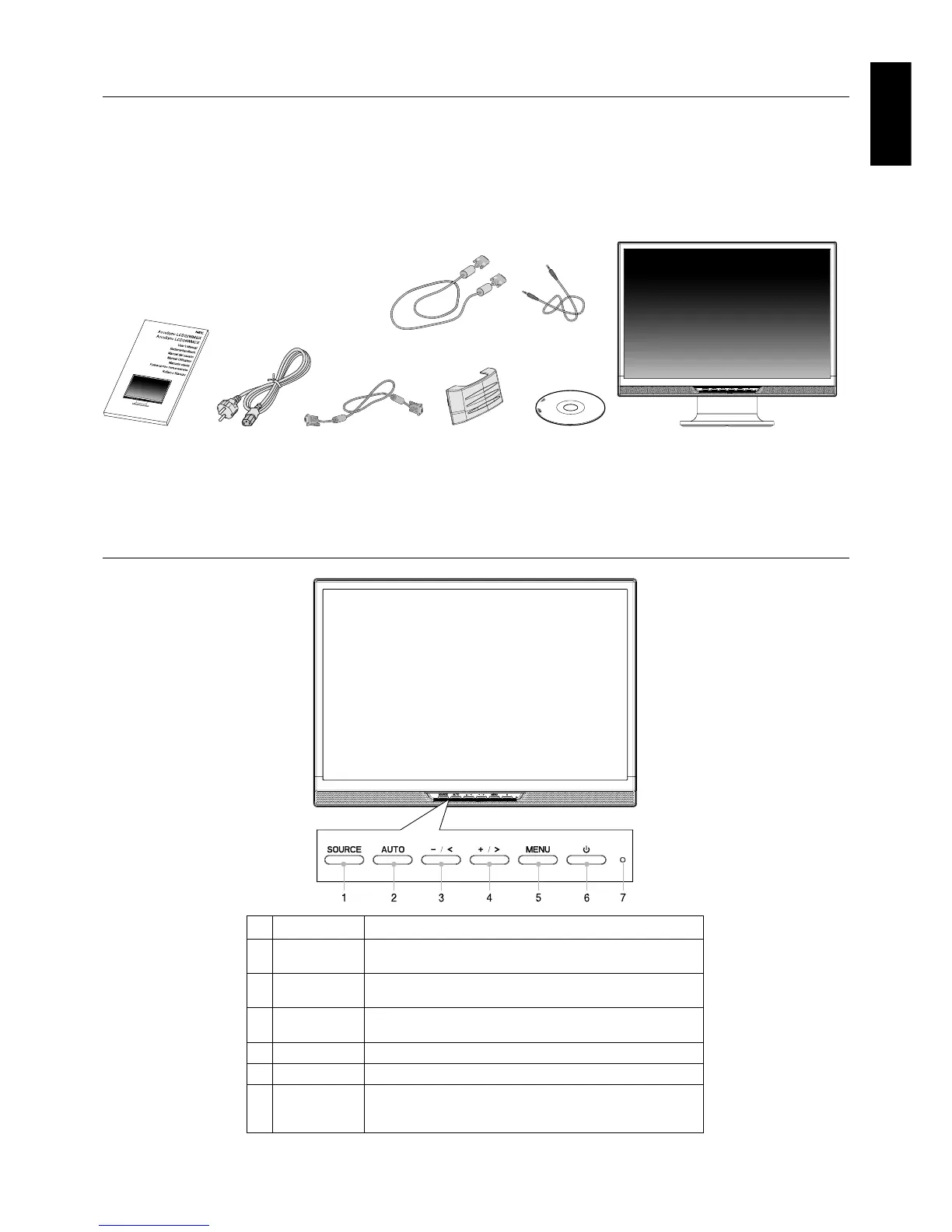

Your new NEC LCD monitor box* should contain the following:
• LCD monitor with tilt base
• Power Cord
•Video Signal Cable (15-pin mini D-SUB to 15-pin mini D-SUB male)
•Video Signal Cable (DVI-D to DVI-D)
• Audio Cable
• User’s Manual
• CD-ROM
• Base Stand
• Cable Holder
Component Names and Functions
User’s Manual
Power Cord 15-pin mini D-SUB
to 15-pin mini
D-SUB male
LCD monitor
(Stand not connected)
CD-ROMCable Holder
* Remember to save your original box and packing material to transport or ship the monitor.
Audio Cable
DVI-D to DVI-D
1
2
3
4
5
6
7
Source
Auto
-/<
+/>
Menu
Power Switch
Power LED
Switches the input source being displayed.
When not in OSD menu, enables Auto Configuration.
When in OSD menu, act EXIT-key.
When not in OSD menu, lowers the sound volume.
When in OSD menu, decreases value or move left/up cursor.
When not in OSD menu, raises the sound volume.
When in OSD menu, increases value or move right/down cursor.
Opens or Closes the OSD menu.
Turns on or off the main power.
LED Blue - Power is ON.
LED Amber - Monitor is in “Power Saving Mode”.
LED is off - Power is OFF.
