5
Tilt

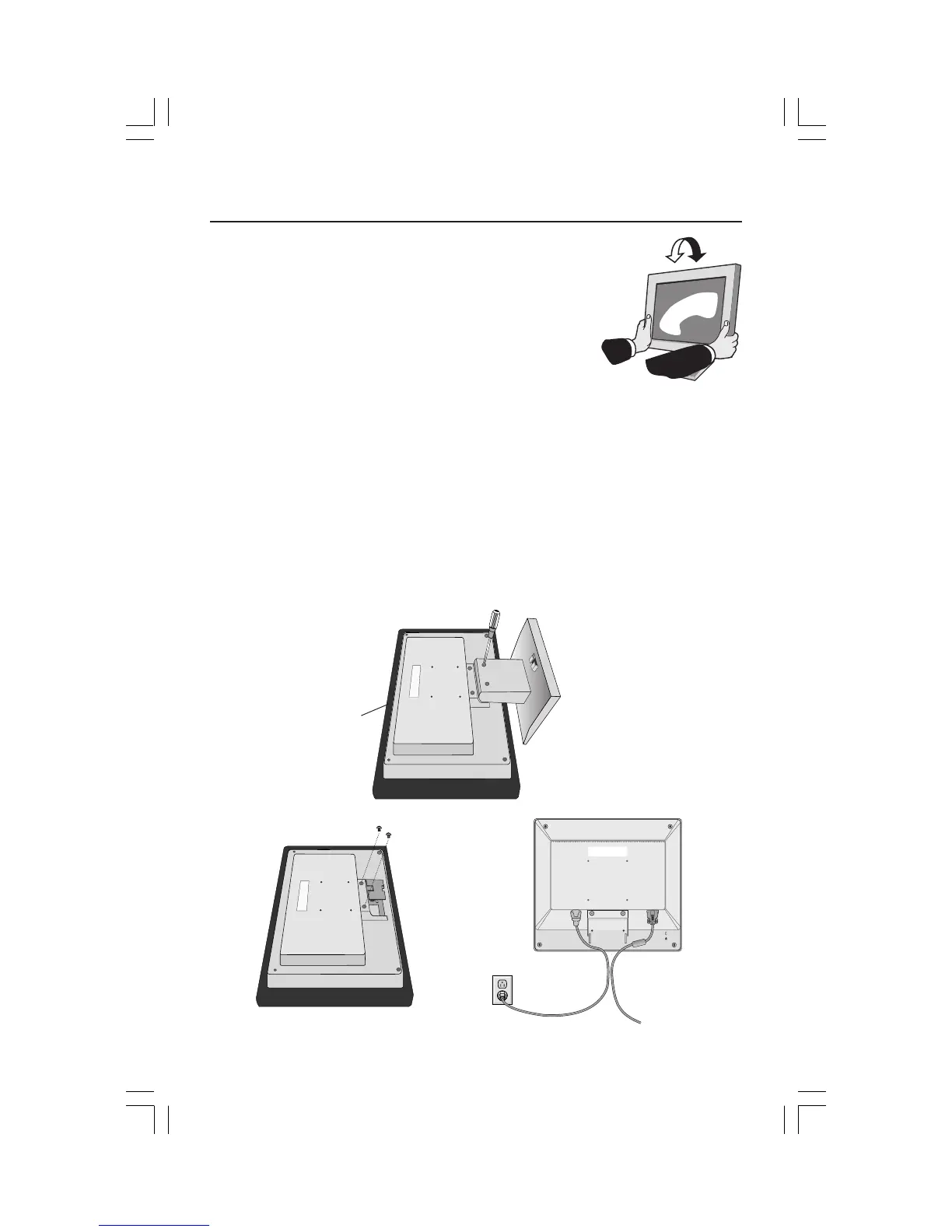

Grasp both sides of the monitor screen with your hands
and adjust the tilt as desired (Figure TS.1).
Remove Monitor Stand for Mounting
To prepare the monitor for alternate mounting purposes:
1.Disconnect all cables.
2.Place monitor face down on a nonabrasive surface (Figure R.1).
3.Remove the 2 screws on the stand and lift off the stand (Figure R.1).
4.Remove the 4 screws connecting the monitor to the stand and remove the
metal plate (Figure R.2).
The monitor is now ready for mounting in an alternate manner.
5.
Connect the AC cord and signal cable to the back of the monitor (Figure R.3).
6. Reverse this process to reattach stand.
NOTE: Use only VESA-compatible alternative mounting method.
NOTE: Handle with care when removing monitor stand.
Quick Start –continued
Figure TS.1
Figure R.2
Figure R.1
non-abrasive
surface
Figure R.3
AS5171Vmanual073003.p65 7/3/03, 3:15 PM5
