Your new NEC LCD monitor box* should contain the following:
• LCD monitor with tilt base
• Power Cord
•Video Signal Cable
• User’s Manual
• CD-ROM
• Base Stand
• Cable Holder
Quick Start

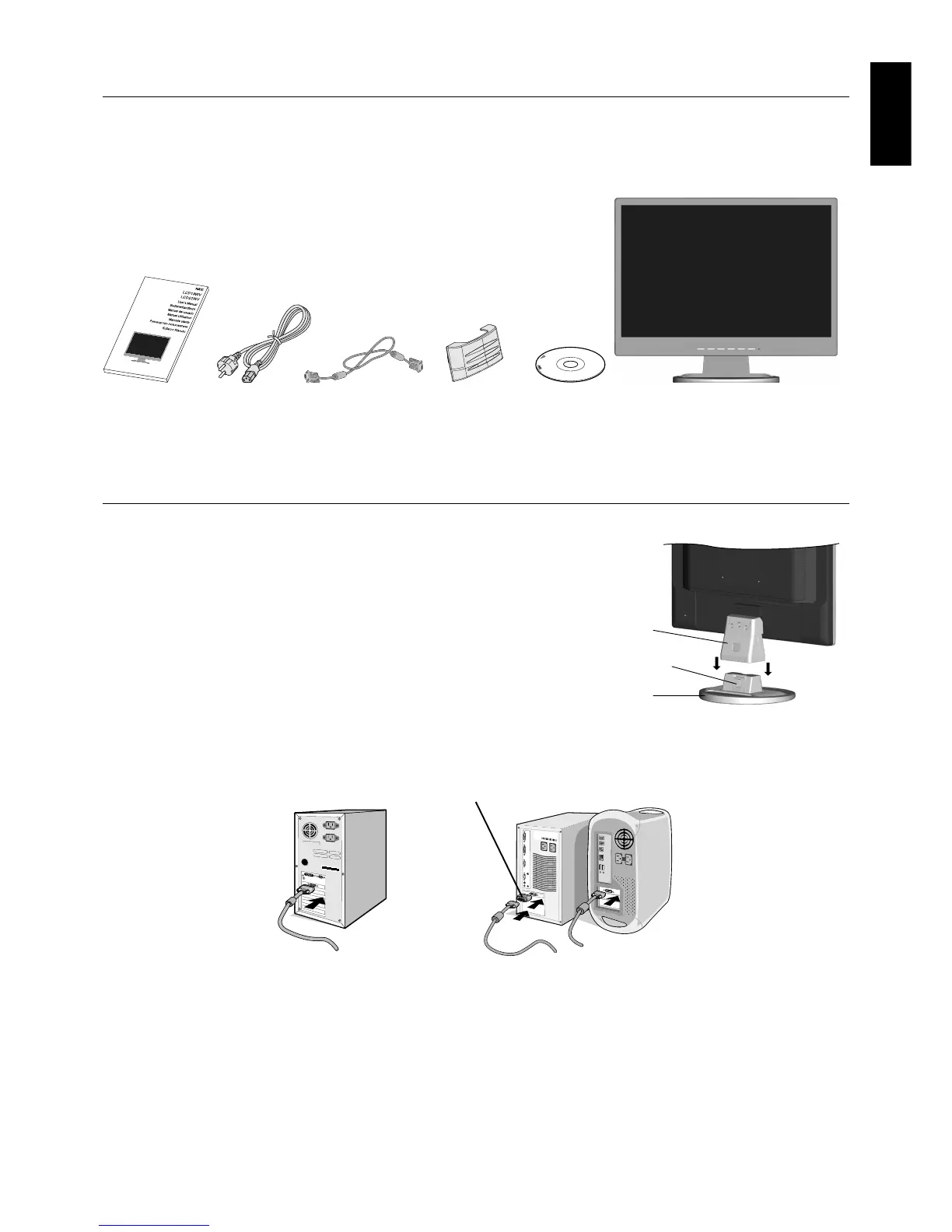

To attach the Base to the LCD Stand:
1. Insert the front of the LCD stand into the holes in the front of the Base (Figure S.1).
2. Attach the Base to the Stand. The locking tab on the Base should fit into the hole
on the back of the Stand (Figure S.1).
To attach the LCD monitor to your system, follow these instructions:
1. Turn off the power to your computer.
2. For the PC with Analog output: Connect the 15-pin mini D-SUB signal cable
connected with the monitor to the connector of the display card in your system
(Figure A.1). Tighten all screws.
For the Mac: Connect the MultiSync Macintosh cable adapter (not included) to
the computer. Attach the 15-pin mini D-SUB signal cable to the MultiSync
Macintosh cable adapter (Figure A.2). Tighten all screws.
NOTE: Some Macintosh systems do not require a Macintosh cable adapter.
User’s Manual
Power Cord Video Signal Cable LCD monitor
(Stand not connected)
CD-ROMCable Holder
*
Remember to save your original box and packing material to transport or ship the monitor.
Figure A.2
Macintosh Cable Adapter
(not included)
Figure A.1
Figure S.1
Stand
Base
Locking Tabs
