NEC M230X Quick Setup Guide

Fn F1 F 12
(
→
page 22, 96, 116 of the User’s Manual)
TIP:

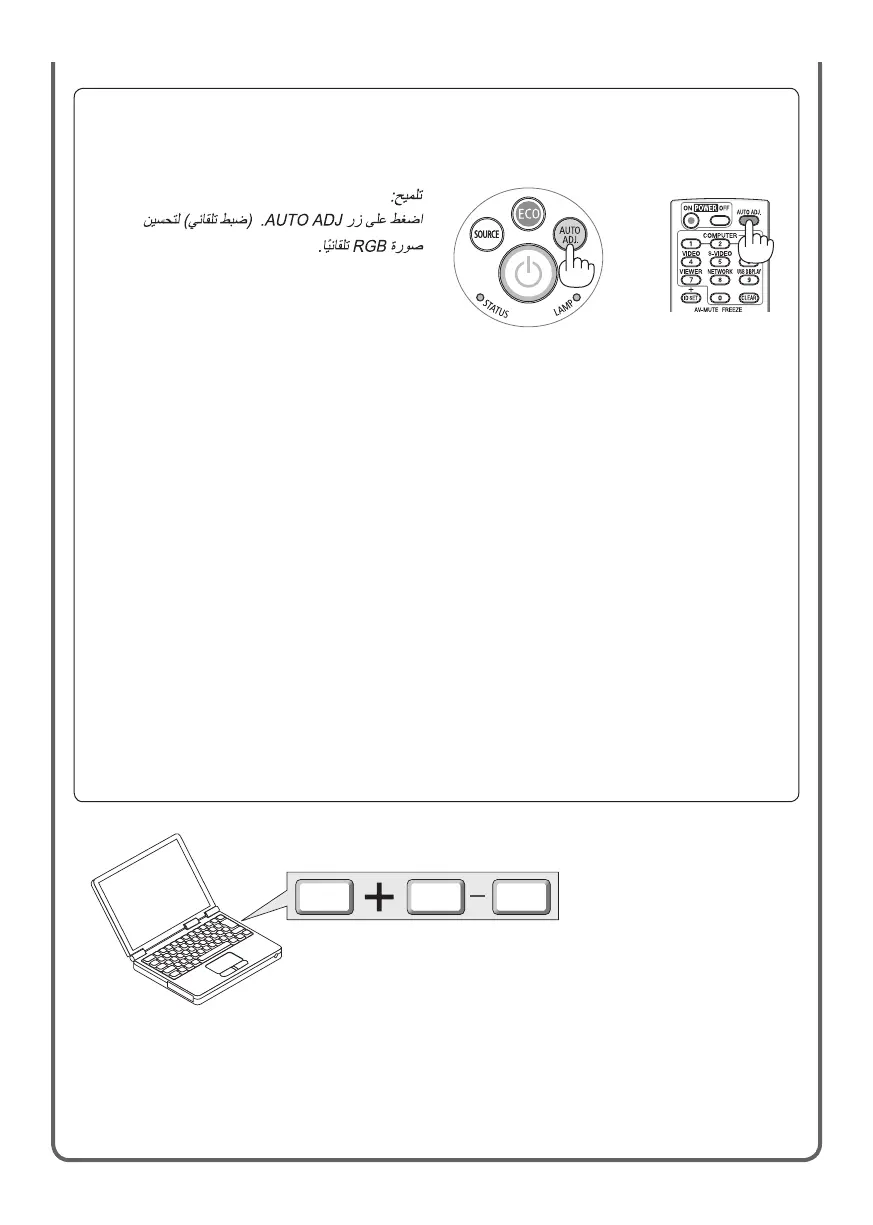

Press the AUTO ADJ. button to optimize an RGB image
automatically.
TIP:
Stisknutím tlačítka AUTO ADJ. (Automatické seřízení)
automaticky optimalizujte obraz RGB.
ET GODT RÅD:
Tryk på knappen AUTO ADJ. for automatisk at optimere et RGB-billede.
ΣΥΜΒΟΥΛΗ:
Πιέστε το πλήκτρο AUTO ADJ. (ΑΥΤΟΜΑΤΗ ΡΥΘΜΙΣΗ) για να βελτιωθεί αυτόματα μια εικόνα RGB.
VINKKI:
Voit optimoida RGB-kuvan automaattisesti AUTO ADJ. -painikkeella.
TIPP:
Nyomja meg az AUTO ADJ. gombot az RGB-kép automatikus optimalizálásához.
TIP:
Druk op de knop AUTO ADJ. om automatisch een RGB-beeld te optimaliseren.
TIPS:
Trykk på AUTO ADJ.-knappen for å optimalisere et RGB-bilde automatisk.
WSKAZÓWKA:
Naciśnij przycisk AUTO ADJ. (Automatyczne dostosowanie), aby automatycznie zoptymalizować obraz RGB.
İPUCU:
RGB görüntüsünü otomatik olarak optimize etmek için AUTO ADJ. (OTOMATİK AYAR) düğmesine basın.

NEC M230X Specifications

General

Matrix size	0.63 \
Matrix type	3-panel (p-Si TFT active)
Native aspect ratio	4:3
Projection distance	0.6 - 13.8 m
Vertical scan range	50 - 120 Hz
Horizontal scan range	15 - 100 kHz
Projection technology	LCD
Supported aspect ratios	4:3, 5:4, 16:9, 16:10
Contrast ratio (typical)	2000:1
Screen size compatibility	25 - 300 \
Projector native resolution	XGA (1024x768)
Keystone correction, vertical	-30 - 30 °
Vertical synchronization (max)	120 kHz
Vertical synchronization (min)	50 kHz
Horizontal synchronization (max)	100 kHz
Horizontal synchronization (min)	15 kHz
Projector brightness (economic mode)	1840 ANSI lumens
Focus	Manual
Throw ratio	1.3 - 2.2
Focal length range	17.5 - 29 mm
Aperture range (F-F)	1.7 - 2.2
Lamp power	180 W
Light source type	Lamp
Lamp power (economic mode)	145 W
Service life of light source	5000 h
Service life of light source (economic mode)	6000 h
3D	No
HD-Ready	Yes
Supported video modes	1080i, 480i, 480p, 576i, 576p, 720p
Analog signal format system	NTSC, NTSC 4.43, PAL, SECAM
Supported graphics resolutions	720 x 480, 720 x 576, 832 x 624, 1152 x 870, 1366 x 768, 1600 x 900, 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768 (WXGA), 1280 x 800 (WXGA), 1360 x 768 (WXGA), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 1200 (UXGA), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 640 x 480 (VGA), 800 x 600 (SVGA)
RMS rated power	10 W
Number of built-in speakers	1
Dimensions (WxDxH)	339 x 257 x 99 mm
Connectivity technology	Wired
Serial interface type	RS-232
USB 2.0 ports quantity	3
Component video (YPbPr/YCbCr) in	0
Cables included	AC, VGA
HDCP	-
Noise level	34 dB
Certification	CE, ErP, TÜV GS, TCO, Gost-R.
Noise level (economic mode)	27 dB
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.4 W
Power consumption (typical)	239 W
Storage temperature (T-T)	-10 - 50 °C
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Product type	Standard throw projector
Product color	White
Market positioning	Portable
Sustainability certificates	RoHS

Weight and Dimensions

Depth	257 mm
Width	339 mm
Height	99 mm
Weight	2900 g
