NEC M282X Installation Guide

NEC Display Solutions of America, Inc.
M282X/M322X/M402X Installation Guide
Ceiling Mounted and Desktop Rev 1.2
www.necdisplay.com M282X, M322X, M402X Page 5 of 6

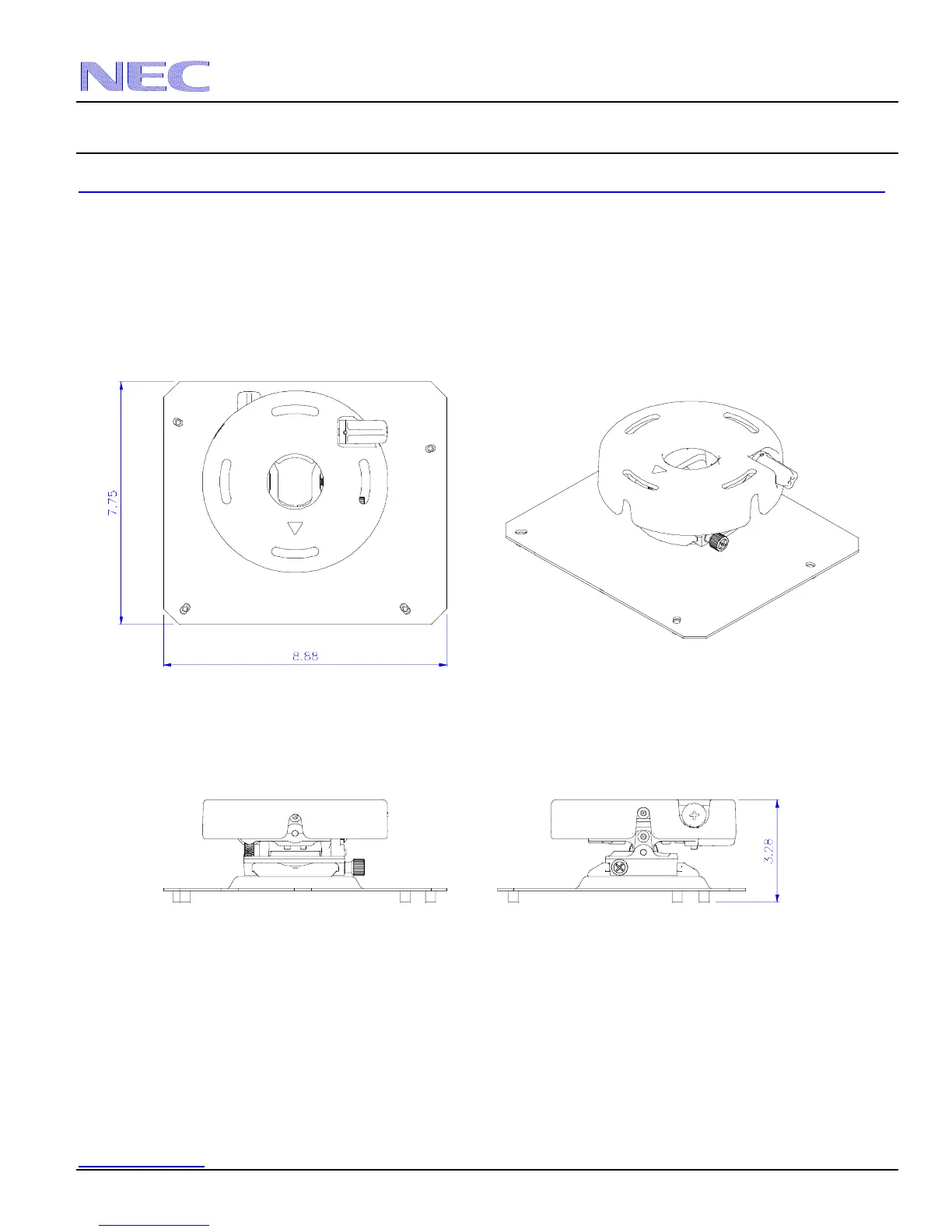

Optional Ceiling Mount Dimensions (Model #: MP300CM)
The following drawings show the ceiling mount dimensions.
Dimensions are in inches. For millimeters multiply by 25.4.

NEC M282X Specifications

General

Native aspect ratio	-
Projection distance	0.9 - 15.97 m
Vertical scan range	50 - 120 Hz
Horizontal scan range	15 - 100 kHz
Projection technology	DLP
Contrast ratio (typical)	10000:1
Screen size compatibility	29.9 - 299.2 \
Projector native resolution	XGA (1024x768)
Keystone correction, horizontal	+-30 °
Focus	Manual
Zoom capability	Yes
Focal length range	17.09 - 29.05 mm
Aperture range (F-F)	2.4 - 3.1
Lamp power	257 W
Light source type	Lamp
Lamp power (economic mode)	187 W
Service life of light source	4500 h
Service life of light source (economic mode)	10000 h
3D	No
Supported video modes	1080i, 1080p, 480i, 480p, 576i, 576p, 720p
Analog signal format system	NTSC, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM
Supported graphics resolutions	1920 x 1200 (WUXGA)
Composite video in	1
USB connector type	USB Type-A, USB Type-B
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Component video (YPbPr/YCbCr) in	0
Noise level	38 dB
Certification	UL60950-1, CSA60950-1, FCC Part 15 Class B, ICES-03 Class B
Noise level (economic mode)	29 dB
RMS rated power	20 W
Placement	Desktop, Ceiling
Product type	Standard throw projector
Product color	White
Market positioning	Portable
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	2.5 W
Power consumption (PowerSave)	0.2 W
Storage temperature (T-T)	-10 - 50 °C
Operating temperature (T-T)	5 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
Remote control type	IR

Weight and Dimensions

Depth	280 mm
Width	339 mm
Height	90 mm
Weight	3400 g
