English-11
English
Figure F.1
100 mm
100 mm
Weight of LCD assembly: 7.5 kg
Flexible Arm Installation
This LCD monitor is designed for use with a fl exible arm.
To prepare the monitor for alternate mounting purposes:
• Follow the instructions provided by the manufacturer of the monitor mount.
• To meet the safety requirements, the monitor must be mounted to an arm that supports the weight of the monitor.
See page 21 for details. Remove the monitor stand before mounting.
* Contact your dealer for more information.

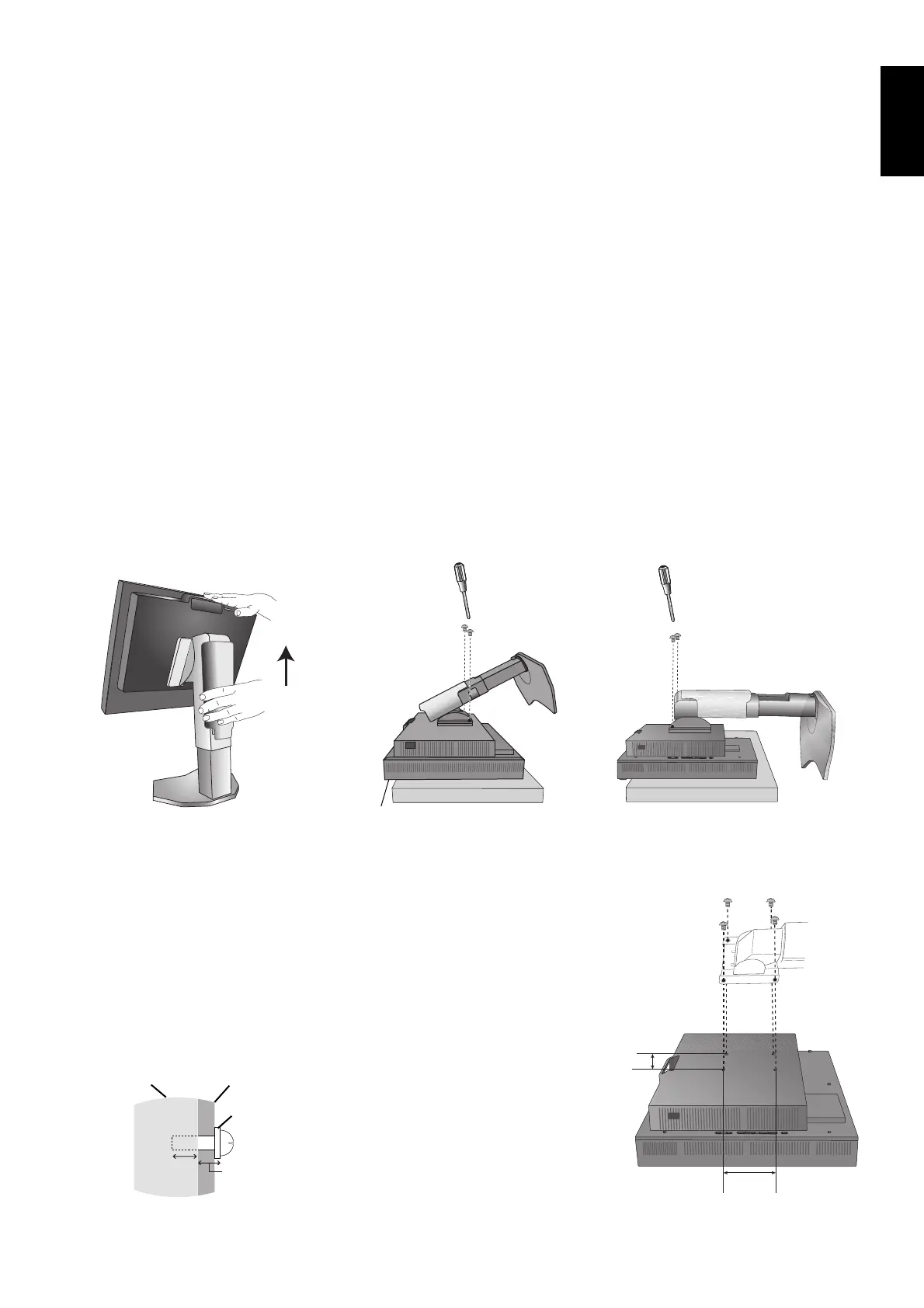

Remove the Monitor Stand for Mounting
To prepare the monitor for alternate mounting purposes:
1. Disconnect all cables.
2. Place hands on each side of the monitor and lift up to the highest position.
3. Make sure to rotate the screen 90° counter clockwise to the landscape position (Figure S.1).
4. Place the monitor face down on a non-abrasive surface. Be sure to not apply any stress or pressure to the front sensor.
To avoid this, lay the monitor face down on a desk or table with the front sensor situated off the edge (Figure S.2).
5. Slide the cable cover up.
NOTE: The cable cover is not removable.
6. Place hand on the back side of the monitor and lift up the stand.
7. Remove the 4 screws connecting the monitor to the stand. Remove 2 bottom screws fi rst (Figure S.2).
8. Lower the stand and slide the cable cover down.
9. Remove 2 top screws (Figure S.3).
Reverse process to re-attach the stand.
NOTE: Handle with care when removing the monitor stand.
Figure S.3Figure S.2
Front sensor
Figure S.1
Mount the Flexible arm
1. Use the 4 screws that were removed from the stand removal to attach the fl exible arm to the monitor
(Figure F.1).
Caution: • The monitor should only be used with an approved arm (e.g. TUEV GS mark).
• When mounting, use the screws (4 pcs) that were removed from the stand.
Alternatively, use M4 size screws with a maximum length equal to thickness
of bracket and washer + 10mm, to avoid damage to the monitor.
The recommended torque is 0.98 - 1.37N•m.
• To avoid blocking the air circulation, keep adequate space above and
behind the monitor.
Mounting Bracket
Screw
Washer
Unit
10 mm
Thickness of bracket
and washer
To Next Page
