Mount Flexible Arm
This LCD monitor is designed for use with a fl exible arm.
1. Follow the instructions on how Remove Monitor Stand for Mounting to remove the stand.
2. Use the 4 screws removed from the stand to attach the arm to the monitor (Figure F.1).
Caution: Use ONLY the screws (4 pcs) that were removed from the stand to avoid damage to the monitor or stand.
To meet the safety requirements, the monitor must be mounted to an arm which guaranties the necessary
stability under consideration of the weight of the monitor. The LCD monitor should only be used with an
approved arm (e.g. TUEV GS mark).
NOTE: Tighten all screws (recommended Fasten Force: 98 - 137N•cm).

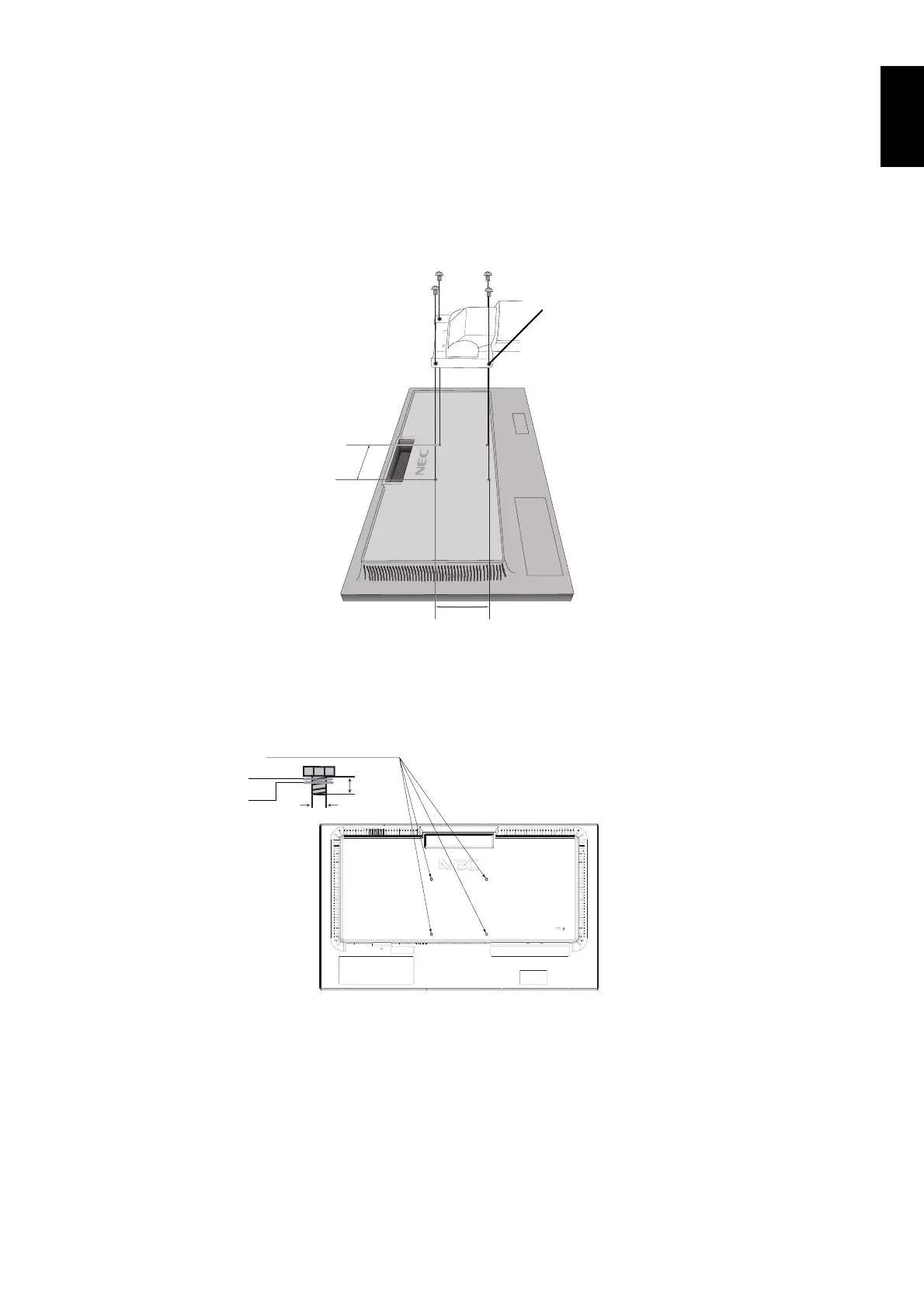

Figure F.1
Weight of LCD assembly: 2.9 kg (E203Wi)
3.7 kg (E233WM)
100 mm
100 mm
Thickness of Bracket (Arm)
2.0~3.2 mm
Specifi cations
4 Screws (M4)
12 mm
M4
Spring washer
Flat washer
To Next Page
