English-8
Screen Rotation
Before rotating, disconnect power cord and all cables, then the screen must be raised to the highest level and tilt to avoid
knocking the screen on the desk or pinching your fi ngers.

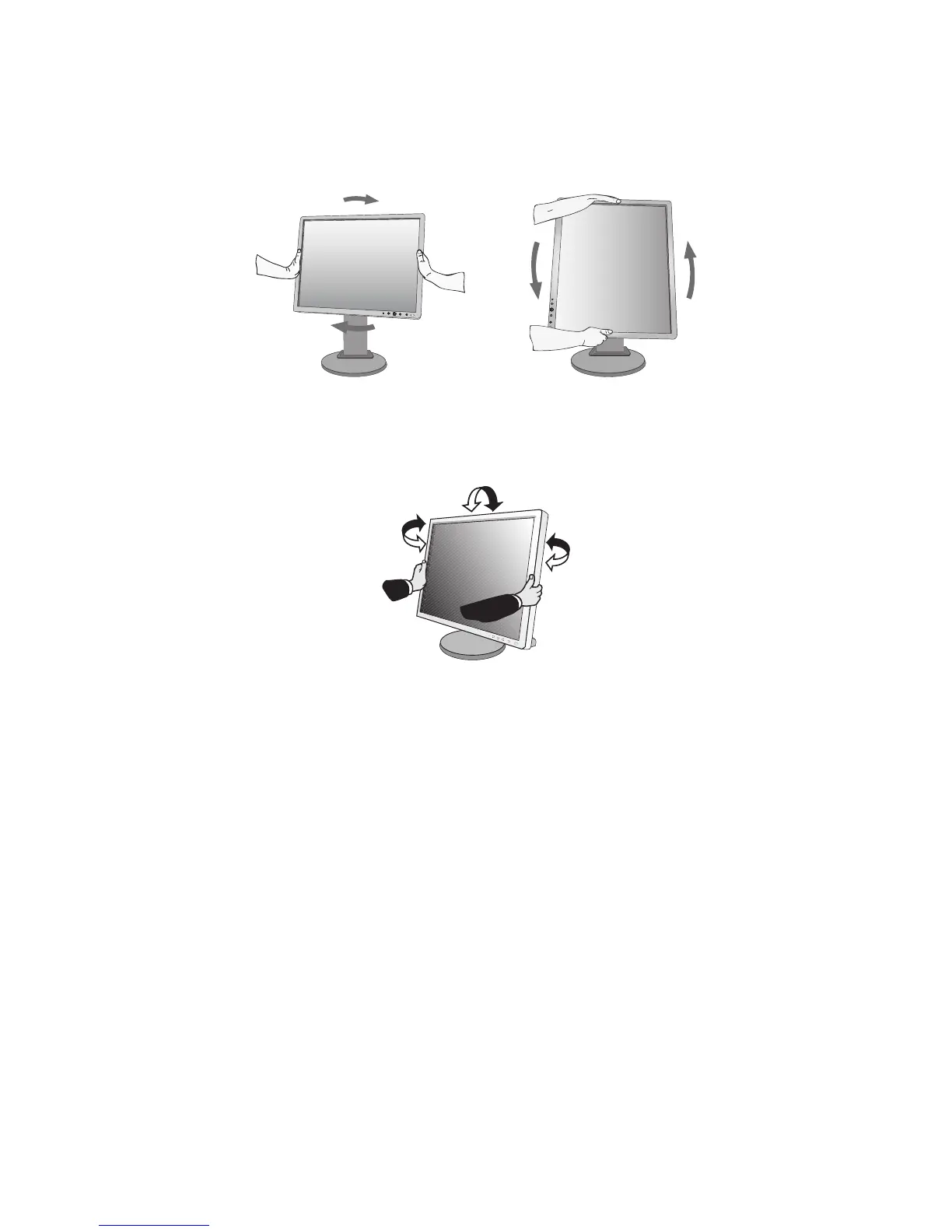

To raise the screen, place a hand on each side of the monitor and lift up to the highest position (Figure RL.1).
To rotate screen, place a hand on each side of the monitor screen and turn clockwise from landscape to portrait or counter-
clockwise from portrait to landscape (Figure R.1).
To rotate OSD menu between landscape and portrait, refer to “Controls” section.
Figure R.1
Tilt and Swivel
Grasp the top and bottom sides of the monitor screen with your hands and adjust the tilt and swivel as desired (Figure TS.1).
Figure TS.1
NOTE: Handle with care when tilting the monitor screen.
