English-8
7. Connect the power cord to the power outlet.
NOTE: Please refer to the CAUTION section of this manual for proper selection of the AC power cord.
8. Turn on the monitor by touching the power key and then turn on the computer (Figure E.1).
9. When using analog (VGA) input, No Touch Auto Adjust automatically adjusts the monitor to optimal settings upon initial
setup. For further adjustments, use the following OSD controls:
• AUTO CONTRAST
• AUTO ADJUST
Refer to the Controls section of this User’s Manual for a full description of these OSD controls.
NOTE: If you have any problems, please refer to the Troubleshooting section of this User’s Manual.

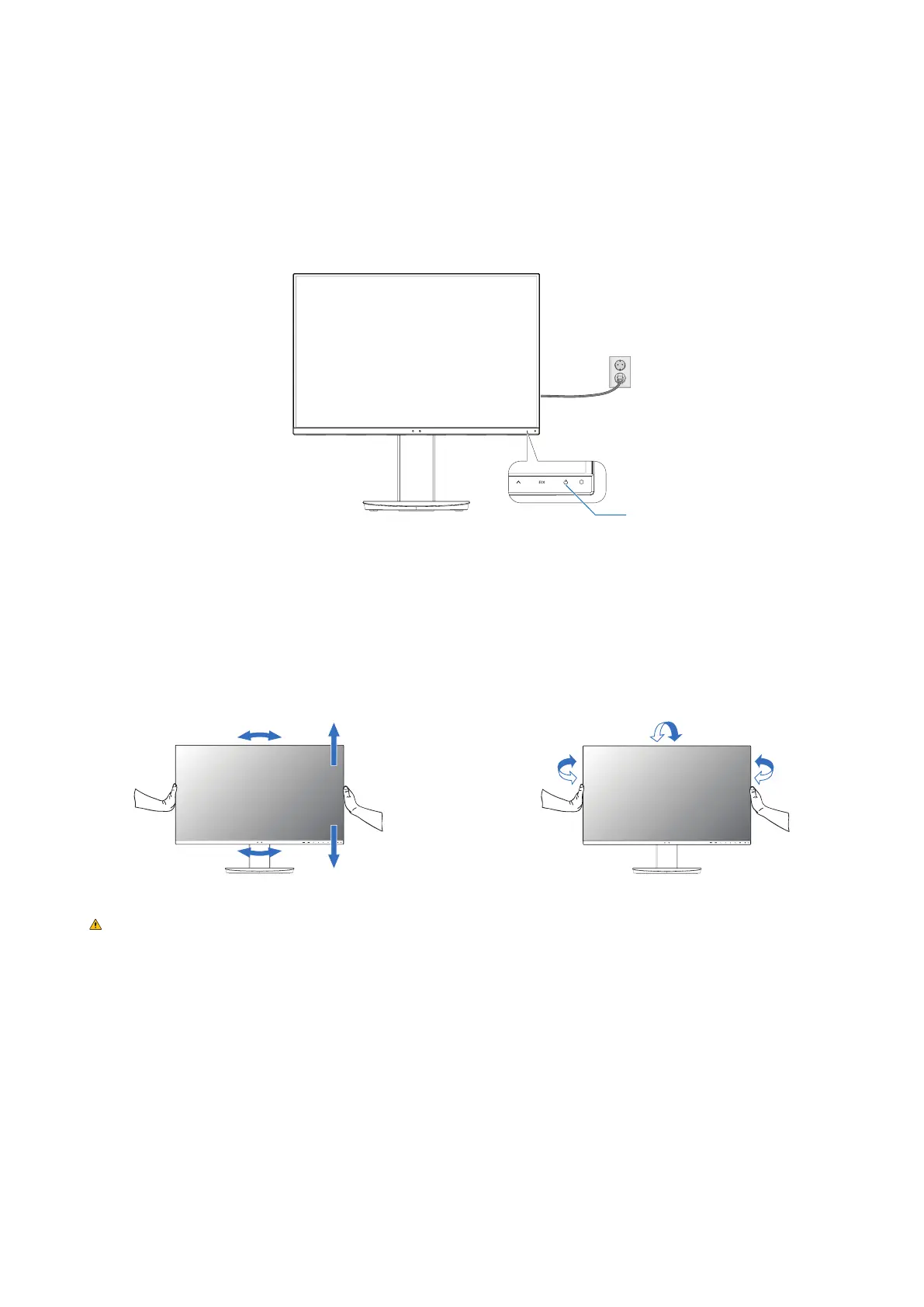

Figure E.1
Power key
Adjustable stand with pivot capability
Raise and Lower: Hold the monitor on each side and lift or lower to the desired height.
Tilt and Swivel: Hold the top and bottom sides of the monitor screen with your hands and adjust the tilt and swivel as desired.
Screen Rotation (Pivot): Hold the monitor on each side and turn it from landscape to portrait.
You can adjust the OSD (On-Screen Display) menu rotation to match the screen rotation. Refer to the OSD ROTATION
instructions (see page 18).
Tilt and SwivelRotation, Raise and Lower
CAUTION: Handle with care when adjusting the monitor screen. Do not apply pressure to the LCD when adjusting the
height and rotating the monitor screen.
Before rotating, disconnect the power cord and all cables from the display. The screen must be raised to the
highest level and tilt to avoid knocking the screen on the desk or pinching your fingers.
