English-6
Quick Start
To connect the LCD monitor to your system, follow these instructions:
NOTE: Make sure to read “Recommended Use” (page 3) before installation.
1. Turn off the power of your computer.
2. For a PC with DisplayPort output: Connect the DisplayPort cable to the connector of the display card in your system
(Figure A.1).
For a PC or MAC with DVI digital output: Connect the DVI signal cable to the connector of the display card in your system
(Figure A.2). Tighten all screws.
For a PC with HDMI output: Connect the HDMI cable to the connector of the display card in your system (Figure A.3).
For a PC with Analog output: Connect a 15-pin mini D-SUB signal cable to the connector of the display card in your
system (Figure A.4).
For a MAC: Connect a Macintosh cable adapter (not included) to the computer, then attach the 15-pin mini D-SUB signal
cable to the Macintosh cable adapter (Figure A.5).
NOTE: Some Macintosh systems do not require any Macintosh cable adapter.

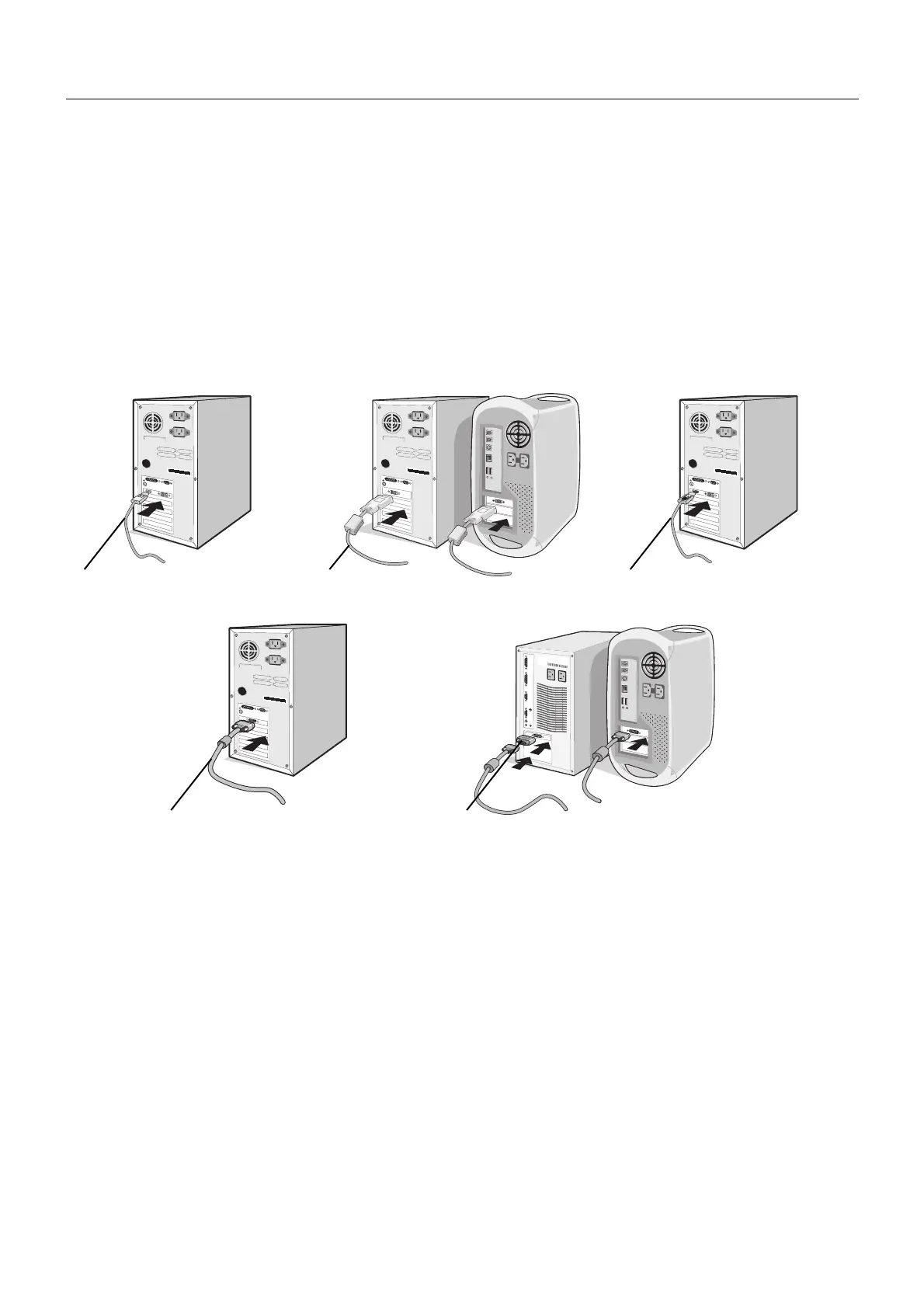

Figure A.1 Figure A.3Figure A.2
DisplayPort cable DVI cable*
1
HDMI cable (not included)
Figure A.4 Figure A.5
15-pin mini D-SUB cable (not included)
Macintosh Cable Adapter (not included)
Macintosh Cable Adapter (not included)
NOTE: 1. When removing the DisplayPort cable, hold down the top button to release the lock.
2. Please use a High Speed HDMI cable with HDMI logo.
*
1
The type and number of cables included will depend on the where the LCD monitor is to be shipped.
