5. For successful cable management, place the cables in this order
into the cable management: Power cord and DVI cable
(Figure C.2).
6. Place power cord and audio cable into the specific hooks
indicated in Figure C.2.
7. Place the DVI cable and D-Sub cable into the specific hooks
indicated in Figure C.2.
8. Make sure all cables are resting flat against the stand (Figure C.3).
9. Hold the all cables firmly and place the cable cover onto the stand
(Figure D.1). To remove the cable cover, lift the cover off as
shown in Figure D.2.
10.Connect the power cord to the power outlet (Figure E.1).
NOTE: If you have difficulty removing the cable cover, please push
the lower opening upward to remove it, as show in Figure
E.2.
NOTE: Please refer to Caution section of this manual for proper
selection of AC power cord.
11.Turn on the monitor with the front power button and the computer
(Figure E.1).
12.No-touch Auto Adjust automatically adjusts the monitor to optimal
settings upon initial setup for most timings.
For further adjustments, use the following OSD controls:
• Auto Adjust Contrast
• Auto Adjust
Refer to the Controls section of this User’s Manual for a full
description of these OSD controls.
NOTE: If you have any problem, please refer to the
Troubleshooting section (CD-ROM).
Raise and Lower Monitor Screen
The monitor may be raised or lowered. To raise or lower screen,
place hands on each side of the monitor and lift or lower to the
desired height (Figure RL.1).
NOTE: Handle with care when raising or lowering the monitor
screen.
Screen Pivot
Before rotating, the screen must be raised to the highest level to
avoid accidentally damaging the screen and to avoid pinching fingers.
With one hand, grip the top of the display by the handle using the
other hand to grip the bottom. Lift up to the highest position (Figure
RL.1).
To rotate the screen, place hands on each side of the monitor screen
and turn clockwise from Landscape to Portrait or counter-clockwise
from Portrait to Landscape (Figure R.1).
NOTE: Disconnect cables before rotating the screen.
Re-connect cables when screen is in desired position.
Tilt and Swivel
Grasp both sides of the monitor screen with your hands and adjust
the tilt and swivel as desired (Figure TS.1).
NOTE: Handle with care when tilting and swivelling the monitor
screen.
DVI Cable
Power Cord

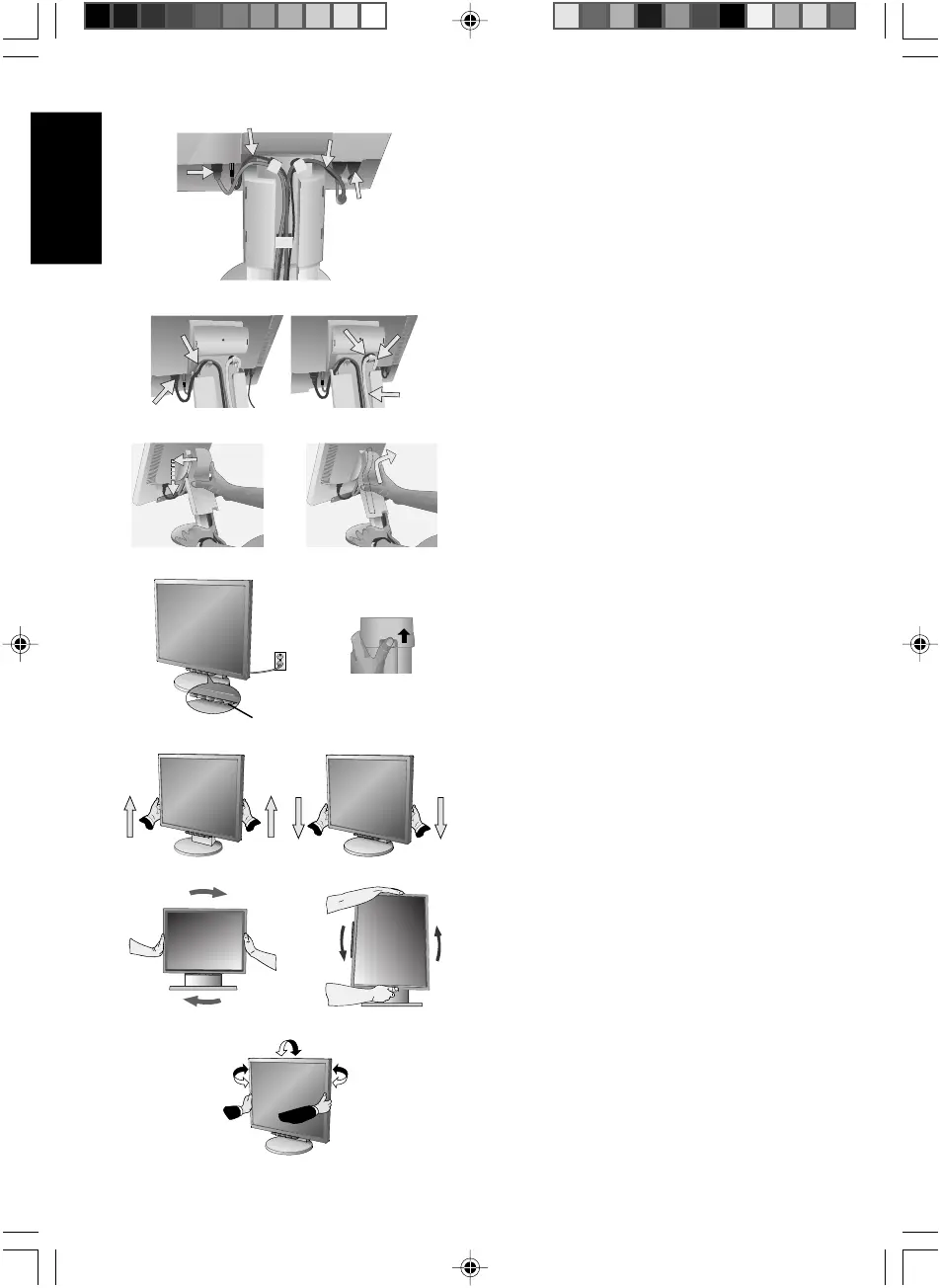

Figure C.2
